Piston Oil Cooler Jet

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Oil Jet Remove Install

Courtesy of CHRYSLER LLC

Install the Piston Oil Cooler Jet. (1)
Tighten the bolt to 13 Nm (115 lbs. in.) (2)

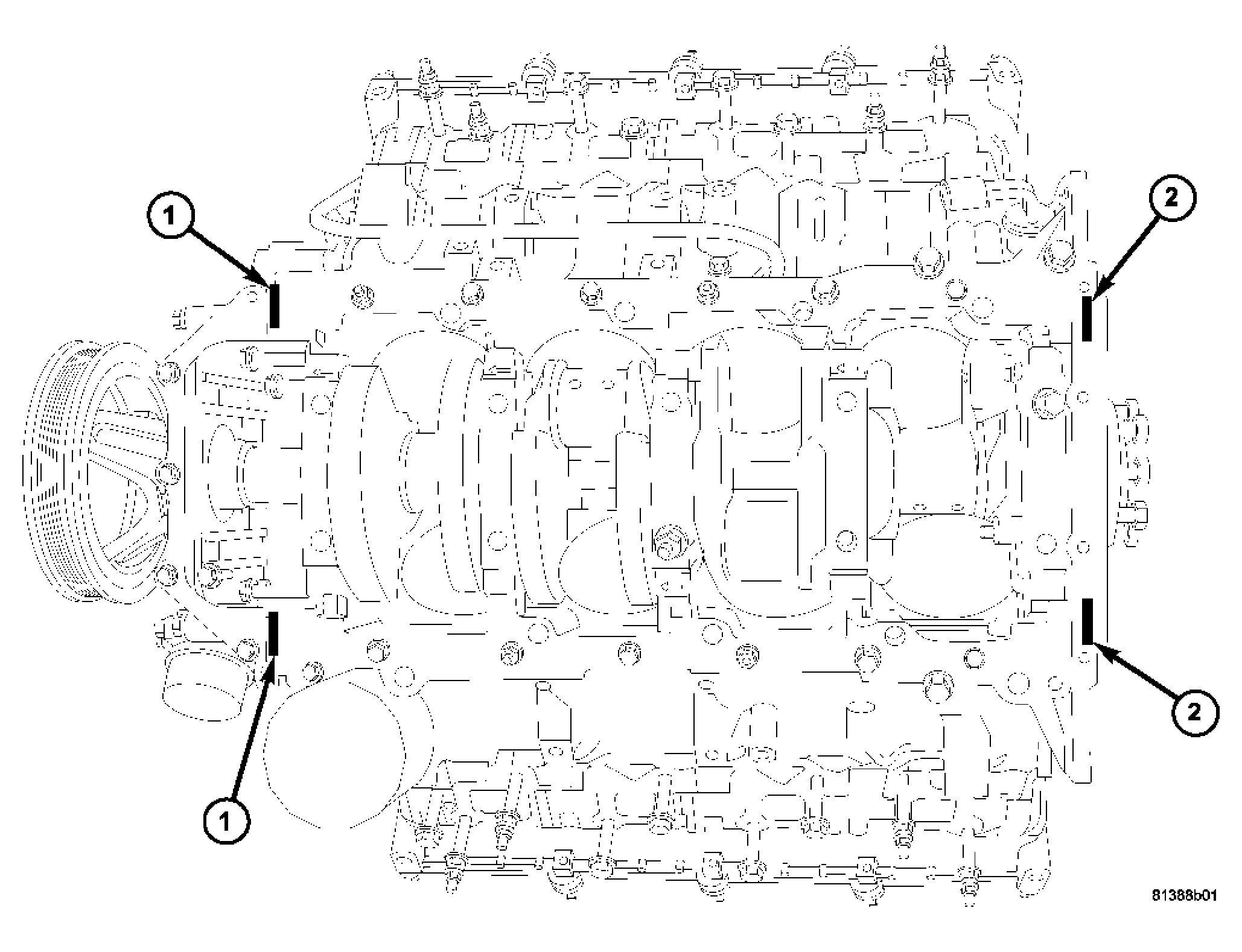

Fig 2: T-Joint RTV Application
Courtesy of CHRYSLER LLC

NOTE: Mopar® Engine RTV must be applied to the 4 T-joints, (area where front cover, rear retainer, block, and oil pan gasket meet). The bead of RTV should cover the bottom of the gasket. This area is approximately 4.5 mm x 25 mm in each of the 4 T-joint locations.
Clean the oil pan mating surfaces of the engine block and oil pan.
Apply Mopar ® Engine RTV at the 4 T- joints. (1,2)
Install a new oil pan gasket/windage tray assembly.

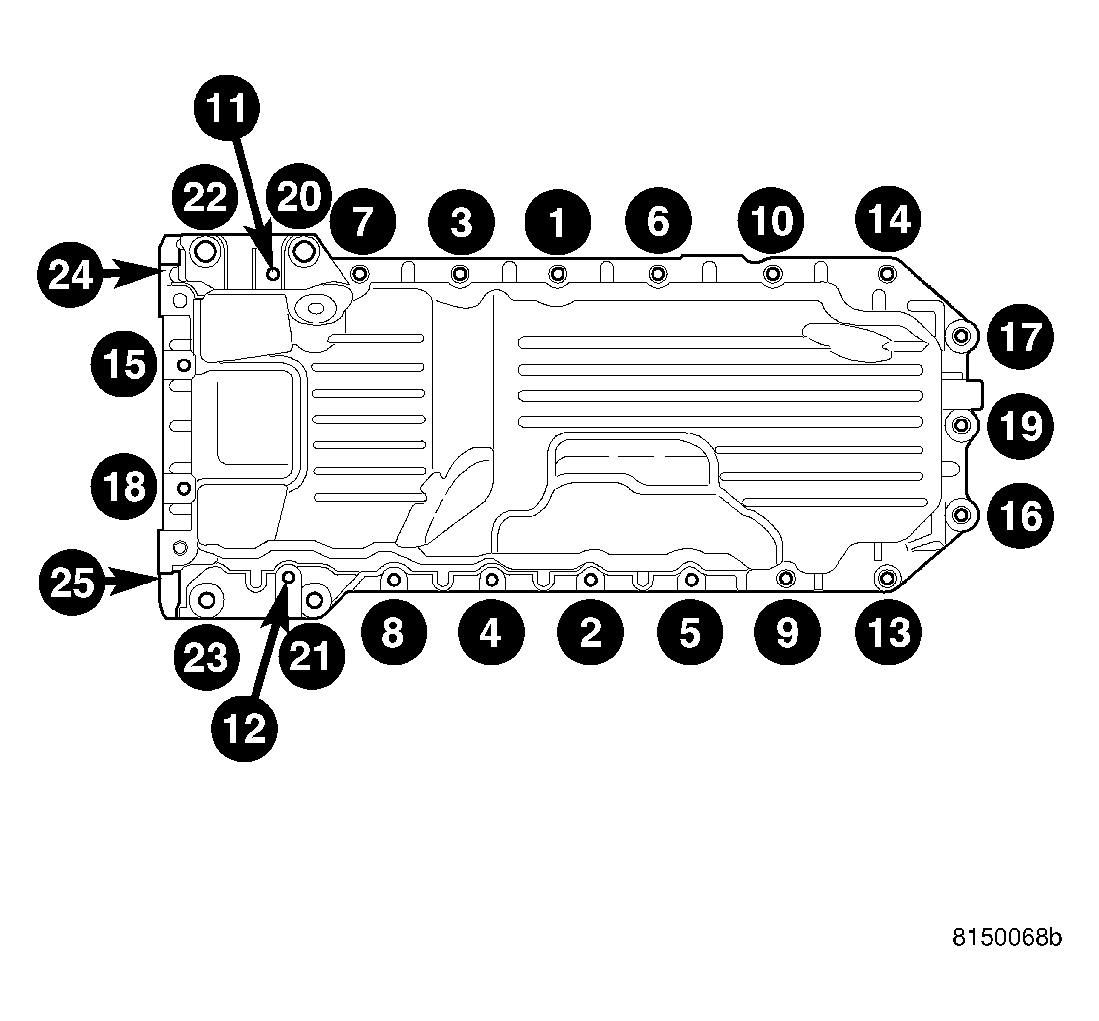

Fig 3: Oil Pan Torque Sequence
Courtesy of CHRYSLER LLC
Install the engine oil pan. See INSTALLATION .
