Flex Plate

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

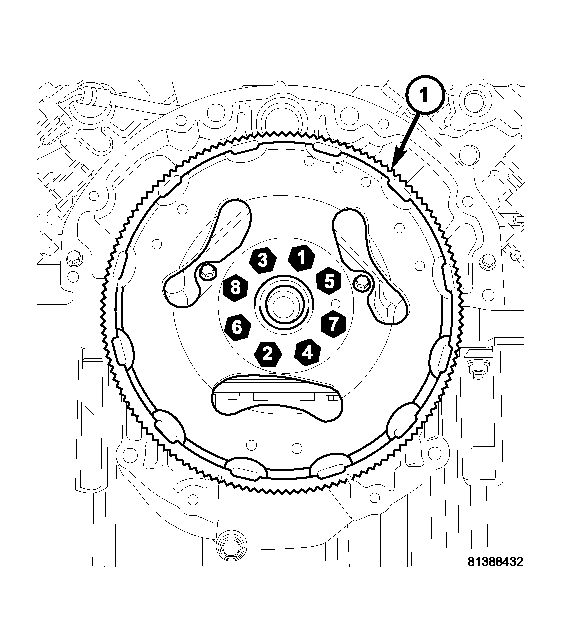

Fig 1: Flex Plate Tightening Sequence
GC0040421Courtesy of CHRYSLER LLC
1 - Flexplate
  1. Remove the transmission. Refer to REMOVAL .
  2. Remove the bolts and flexplate (1).
