Flex Plate
WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

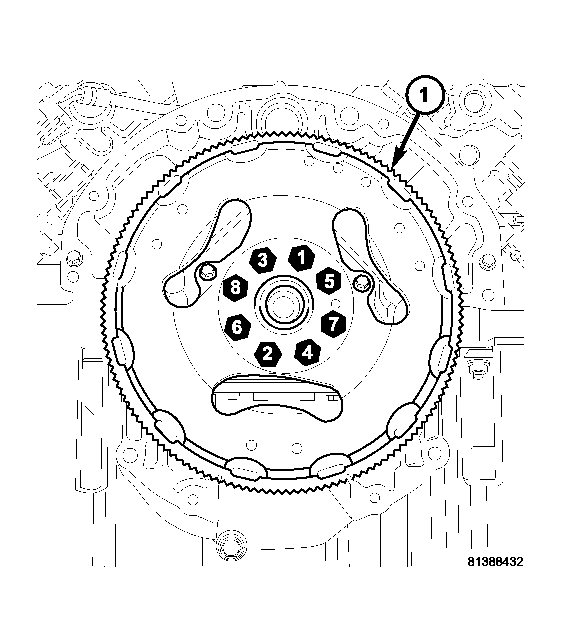

| 1 - Flexplate |
- Position the flexplate or flywheel onto the crankshaft and install the bolts hand tight.
- For automatic transmissions: Tighten the flexplate retaining bolts to 95 N.m (70 ft. lbs.).
- Install the transmission. Refer to INSTALLATION .
