Flex Plate
WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER LLC

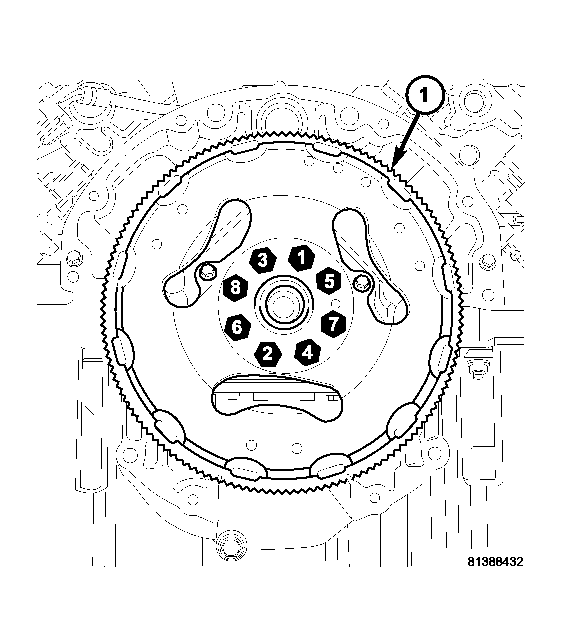

- Position the flexplate or flywheel onto the crankshaft and install the bolts hand tight.
- For automatic transmissions:
Tighten the flexplate retaining bolts to 95 N.m (70 ft. lbs.).
- Install the transmission.
