Pan - Oil: Removal: Pan-Oil-RWD

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Steering Knuckle

Courtesy of CHRYSLER LLC

1 - STEERING COUPLER

2 - CRADLE

3 - STEERING GEAR

4 - BOLT

Disconnect negative battery cable.
Lock the steering wheel in the center position.
Remove engine oil indicator.
Raise and support the vehicle.
Remove the splash shield.
Drain engine oil and remove the oil filter. See STANDARD PROCEDURE .
Remove the oil filter / oil cooler mounting stud and set oil cooler aside. See REMOVAL .
Separate the steering column coupler (1) from the steering gear (3).
Remove steering gear (3) to cradle mounting bolts and suspend steering gear aside.

Fig 2: Identifying Flex Plate Cover
Courtesy of CHRYSLER LLC

1 - COVER

2 - BOLT

Remove the flex plate access cover (1). See Fig 2.

Fig 3: Removing Transmission to Oil Pan Bolts

Courtesy of CHRYSLER LLC

1 - BOLTS

2 - ENGINE OIL PAN

3 - TRANSMISSION

Remove the rear oil pan (2) to transmission (3) bolts (1). See Fig 3.

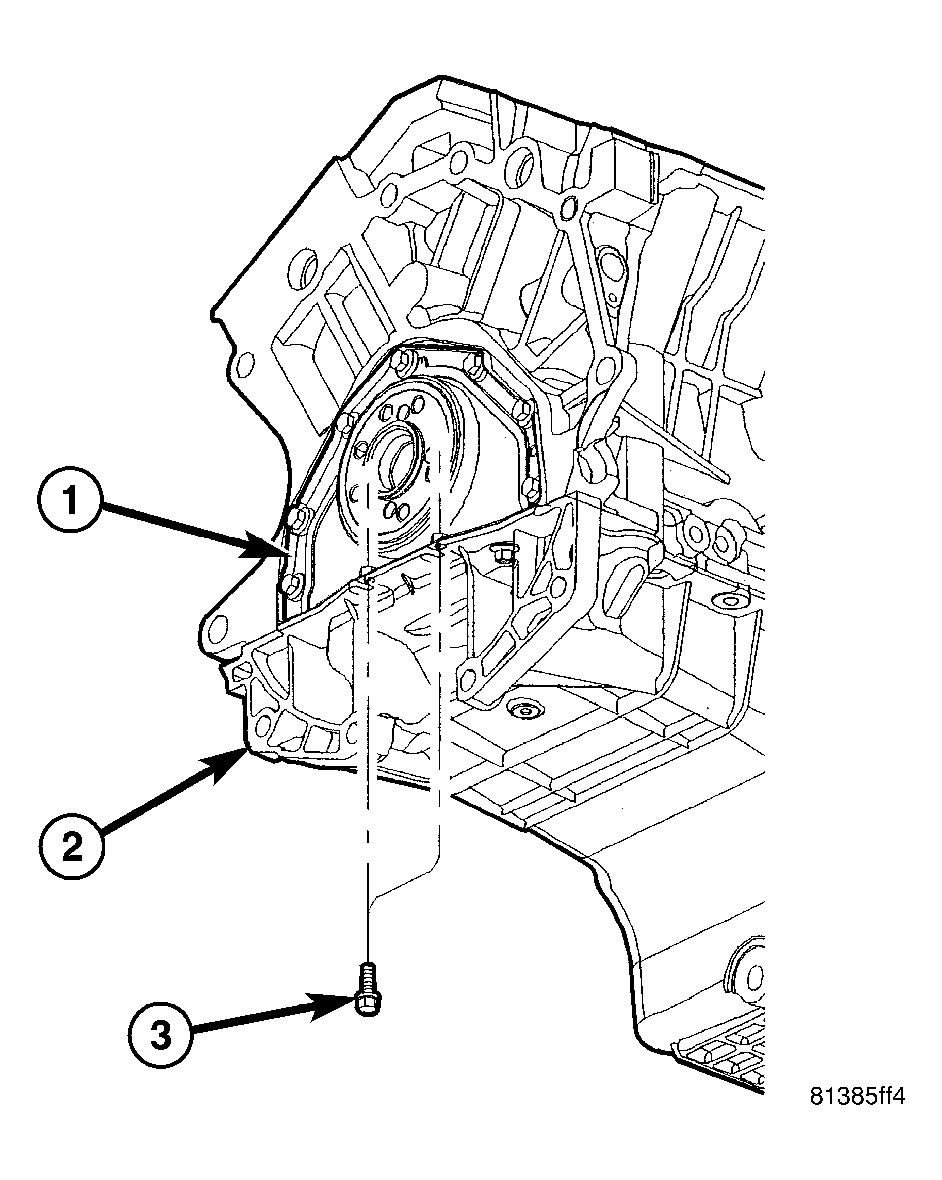

Fig 4: Oil Pan to Rear Main Seal Retainer

Courtesy of CHRYSLER LLC

1 - REAR MAIN SEAL RETAINER

2 - OIL PAN

3 - BOLT

Remove the two rear oil pan bolts (3). See Fig 4.

Fig 5: Oil Pan & Gasket

Courtesy of CHRYSLER LLC

1 - OIL PAN

2 - BOLT

3 - FASTENER

4 - GASKET

5 - ENGINE BLOCK

Remove the remaining oil pan bolts and nuts. See Fig 5.
Loosen the engine mount bolts at the cradle.
Raise and support the engine using a suitable floor jack with a block of wood at the transmission housing.
Remove the oil pan (1). See Fig 5.
NOTE: A small amount of oil will remain in the oil pan. Use care when removing the oil pan from the engine.
Clean all mating surfaces.
