Chain And Sprockets-Timing: Installation: Sprocket-Crankshaft

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

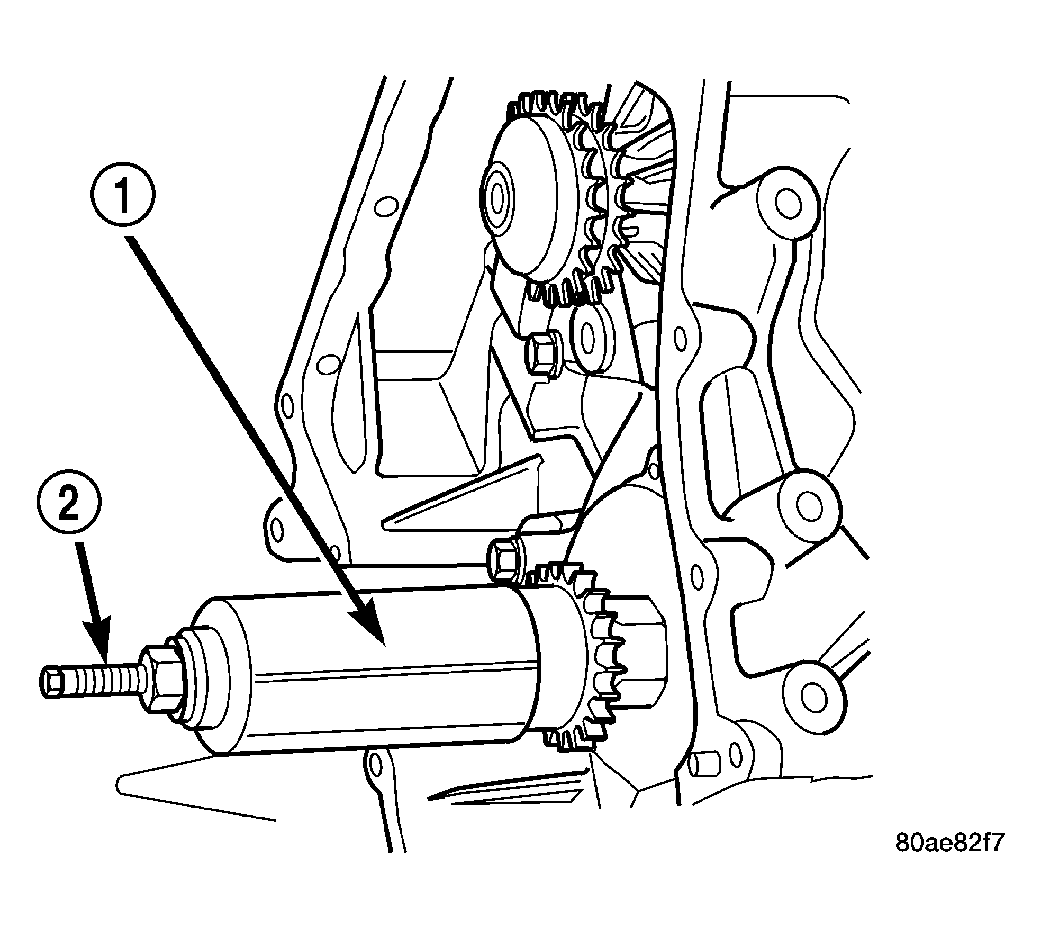

Fig 1: Installing Crankshaft Sprocket
GC0015390Courtesy of CHRYSLER LLC
  1. Install crankshaft sprocket using Special Tools 6780-1 (1) and 8179 (2) until sprocket bottoms against crankshaft step flange. Use care not to rotate crankshaft.

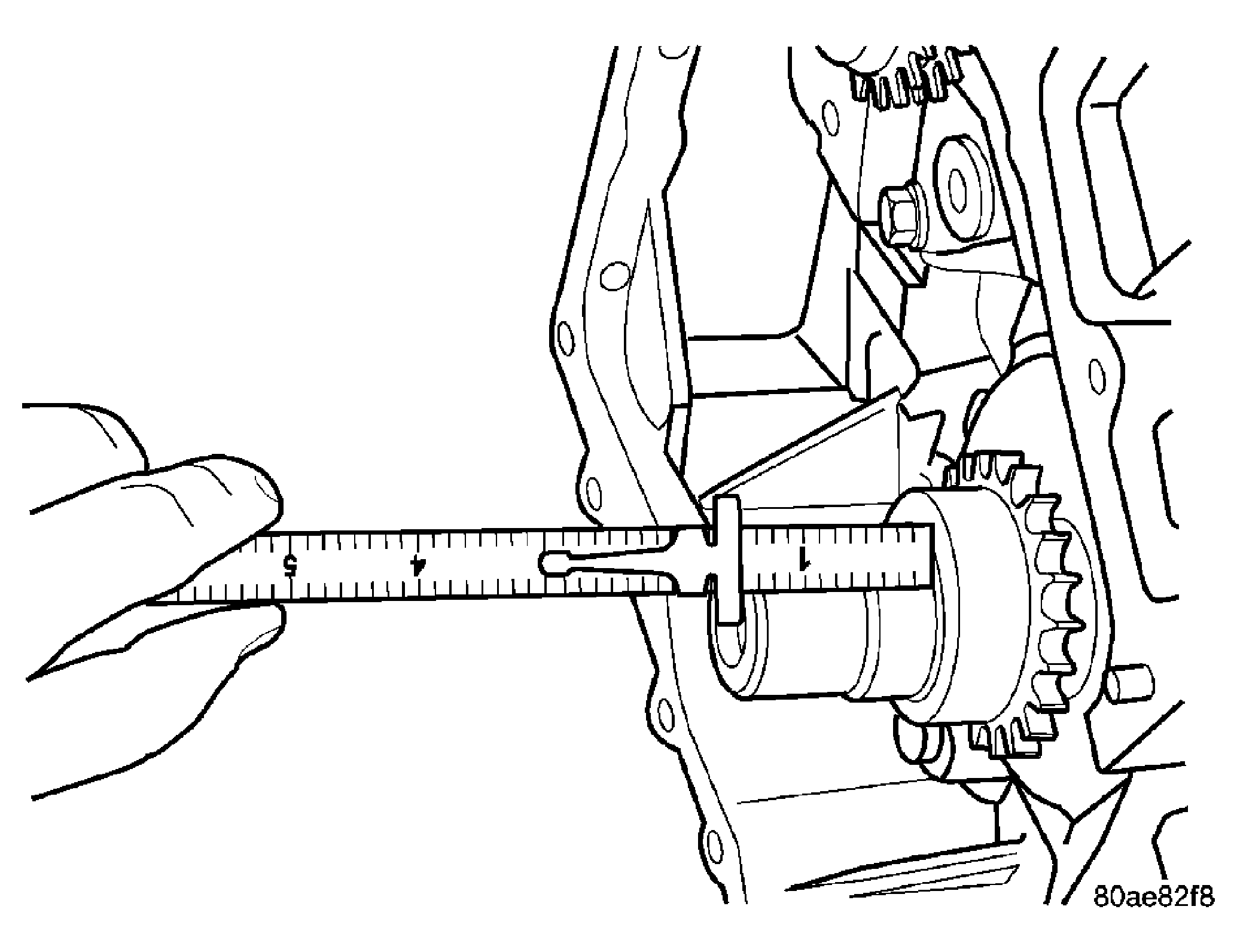

    Fig 2: Crankshaft Sprocket Depth Measurement
    GC0015389Courtesy of CHRYSLER LLC
  2. Verify that crankshaft sprocket is installed to proper depth by measuring from sprocket outer face to end of crankshaft. Measurement should read: 39.05 ±0.50 mm (1.5374 ±0.020 in.).
  3. Install primary timing chain. See INSTALLATION .
