Transmission Cooler: Description

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

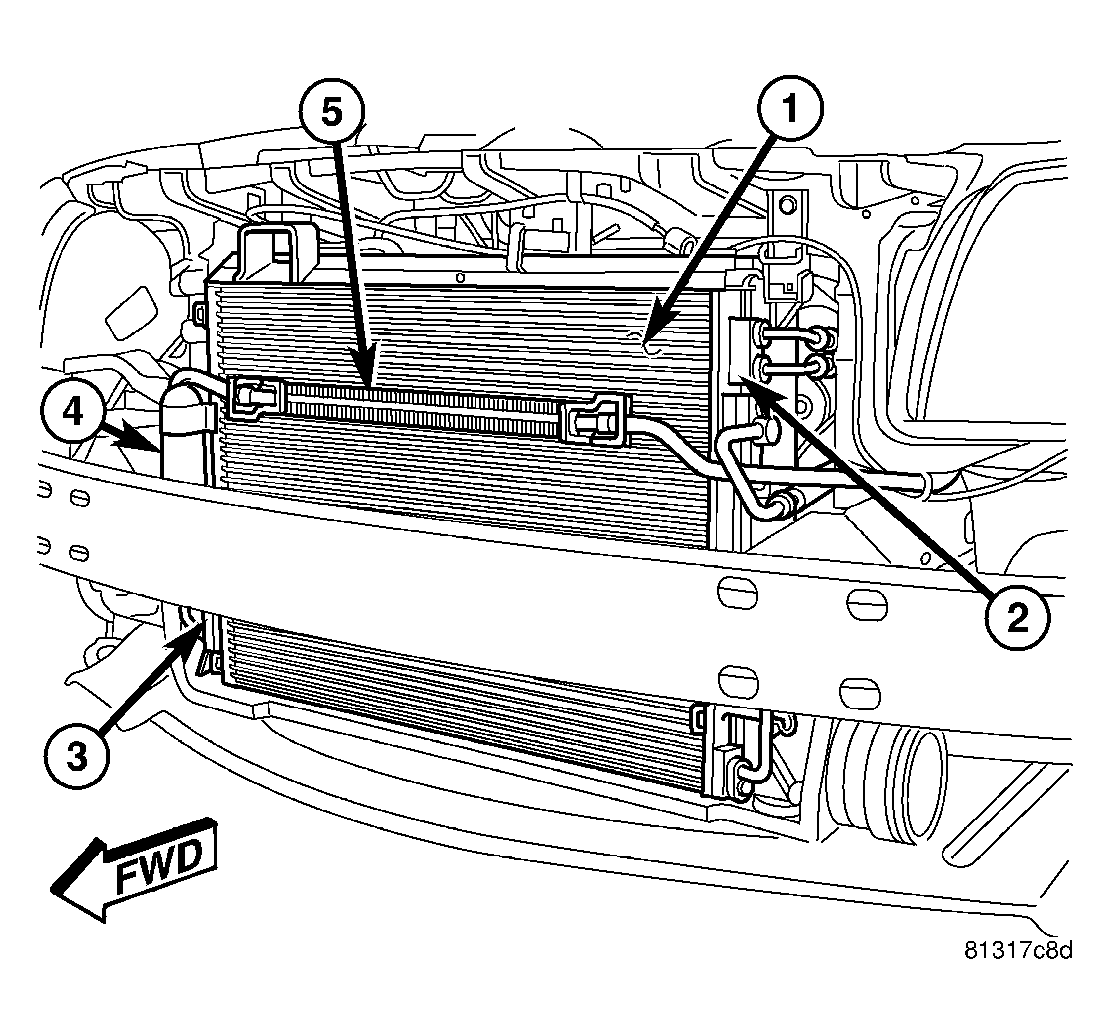

Fig 1: Condenser-A/C Description

Courtesy of DAIMLERCHRYSLER CORP.

The automatic transmission cooler (2) is located in the front of the radiator and behind the front fascia and is combined with the A/C condenser. The transmission cooler is a heat exchanger that allows heat in the transmission fluid to be transferred to the air passing over the cooler fins.

The Transmission oil cooler/A/C condenser assembly is equipped with quick connect fitting for the transmission oil cooler lines, a tapping block (3) for the receiver/drier (4) and mounting provisions for the power steering cooler (5).

The transmission oil cooler/AC condenser is service as an assembly. For removal (Refer to HEATING & AIR CONDITIONING/PLUMBING/A/C CONDENSER - REMOVAL) and installation (Refer to HEATING & AIR CONDITIONING/PLUMBING/A/C CONDENSER - INSTALLATION) .
