Transmission Cooler Line Quick Connect Fitting Disassembly/Assembly: Disconnect
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

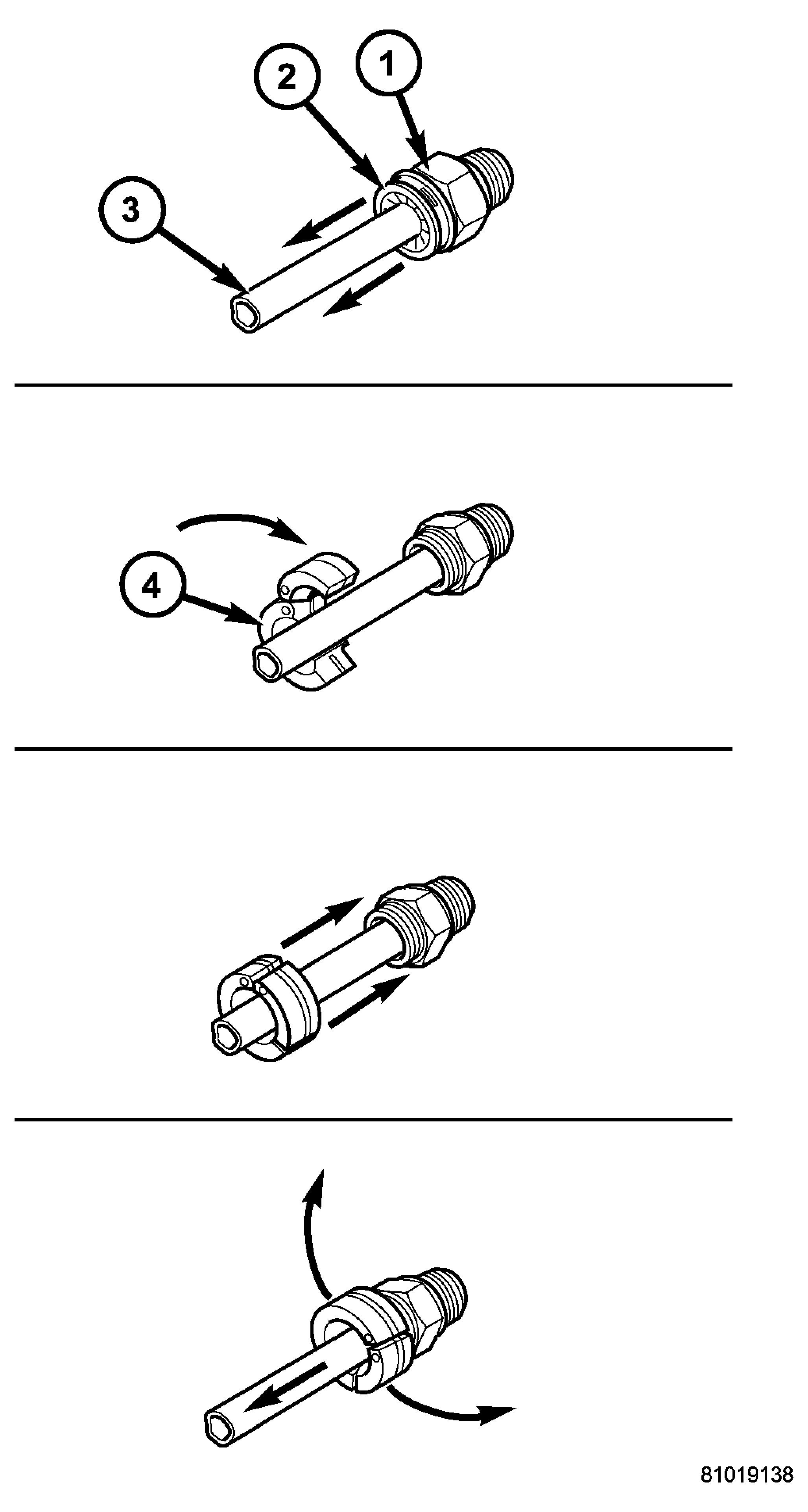

| 1 - QUICK CONNECT FITTING |
| 2 - DUST CAP |
| 3 - OIL COOLER LINE |
| 4 - SPECIAL TOOL 8875A |
- Remove dust cap by pulling it straight back off of quick connect fitting.
- Place disconnect tool 8875A onto transmission cooler line with the fingers of the tool facing the quick connect fitting.
- Slide disconnect tool down the transmission line and engage the fingers of the tool into the retaining clip. When properly engaged in the clip, the tool will fit flush against the quick connect fitting.
- Rotate the disconnect tool 60° to expand the retaining clip.
- While holding the disconnect tool against the quick connect fitting, pull back on the transmission cooler line to remove.
