3.5L Engine
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

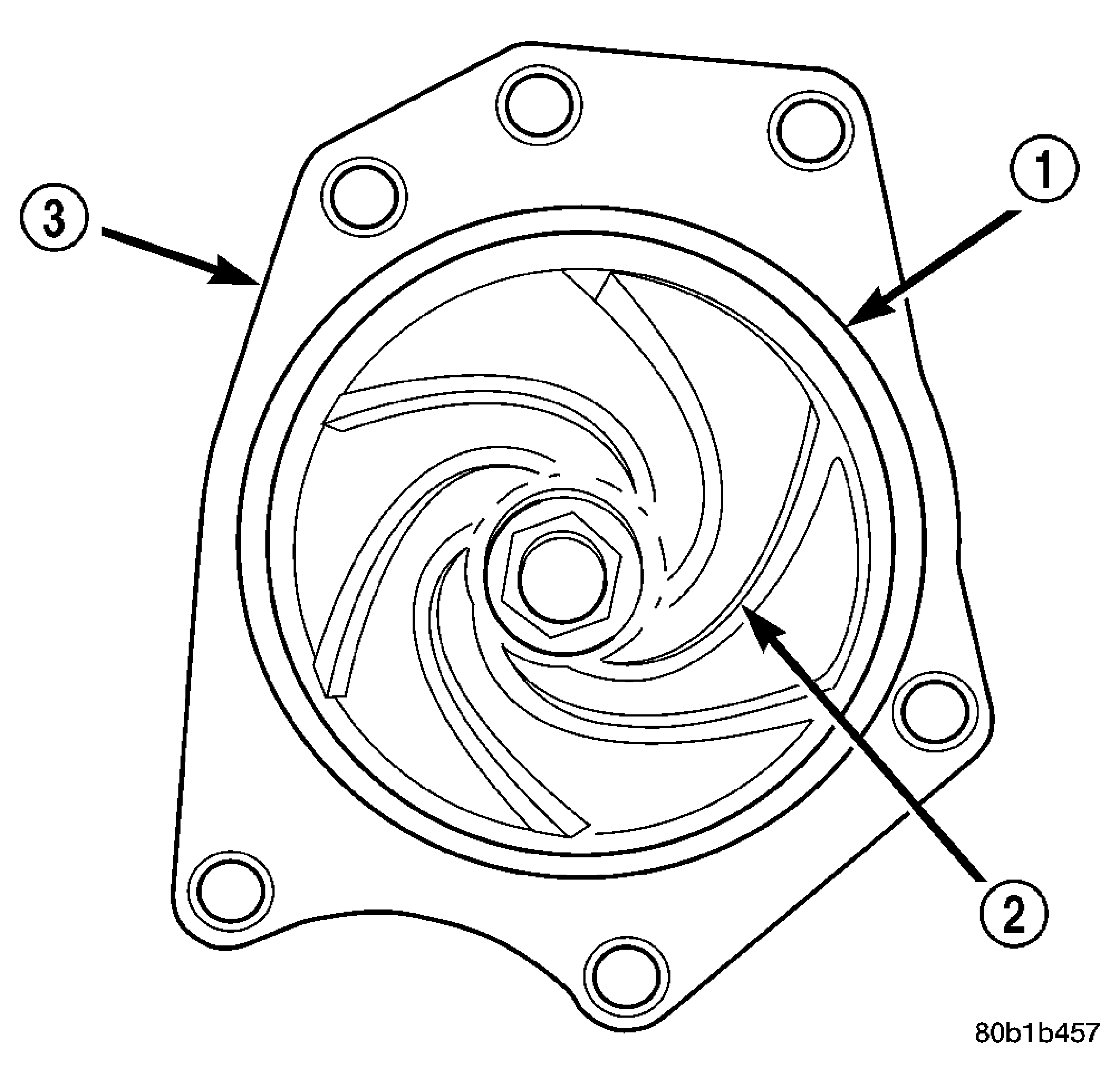

| 1 - O-RING |
| 2 - IMPELLER |
| 3 - WATER PUMP BODY |
- Clean all O-ring surfaces on front cover.
- Position water pump (3) and O-ring to engine.
- Install mounting bolts. Tighten to 12 N.m (105 in. lbs.).
- Install timing belt (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLATION) .
- Install accessory drive belts (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
- Fill cooling system (Refer to COOLING - STANDARD PROCEDURE) .
