Water Pump: Description

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

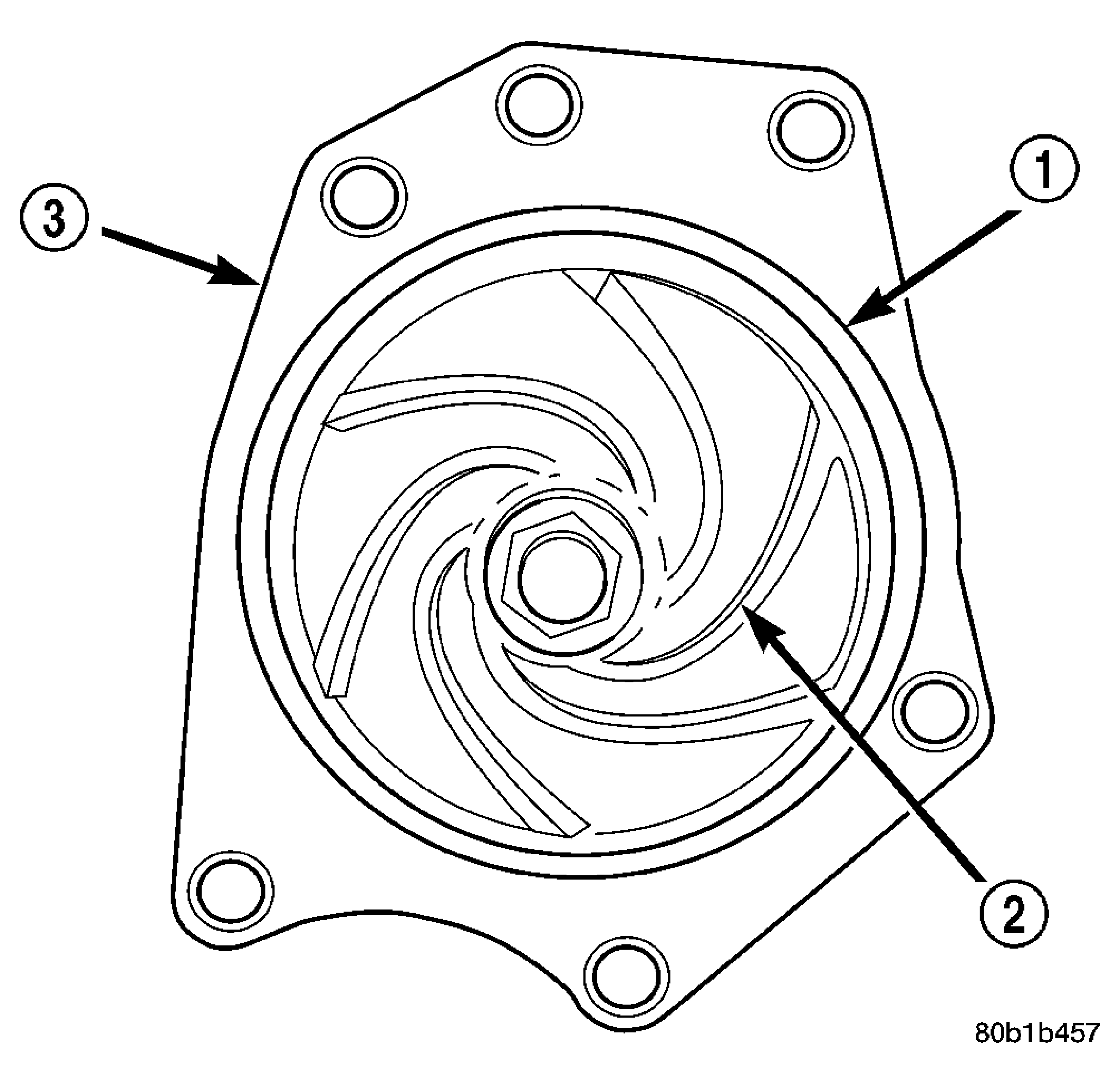

Fig 1: Water Pump - 2.7L Engine

Courtesy of DAIMLERCHRYSLER CORP.

1 - WATER PUMP BODY

2 - IMPELLER

3 - GASKET

The 2.7L and 3.5L pumps have a die cast aluminum housing and a plastic swept vane impeller. The 2.7L water pump bolts directly to the cylinder block, behind the timing chain cover and is driven by the engine primary timing chain.

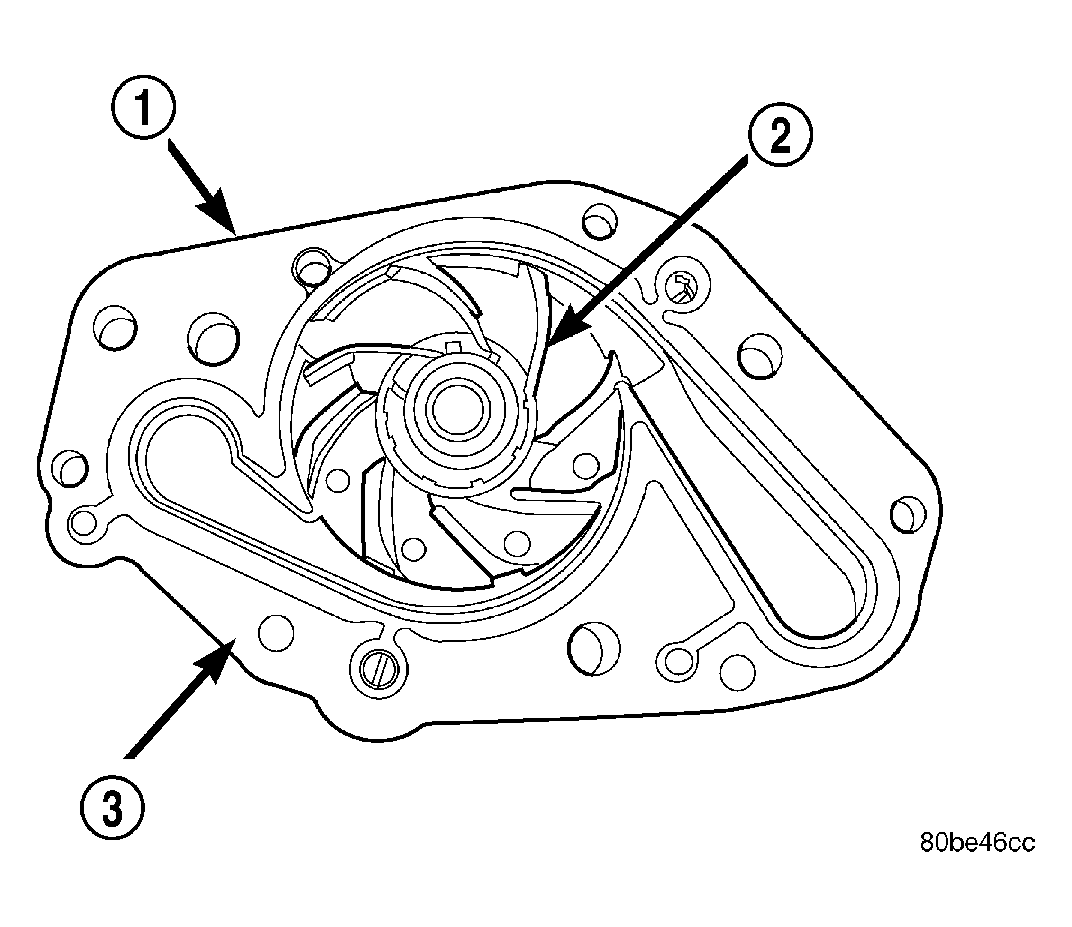

Fig 2: Water Pump - 3.5L Engine

Courtesy of DAIMLERCHRYSLER CORP.

1 - O-RING

2 - IMPELLER

3 - WATER PUMP BODY

The 3.5L water pump bolts directly to the rear timing belt cover using a press-in-place gasket for sealing. The water pump is driven by the engine timing belt.
