2.7L Engine
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

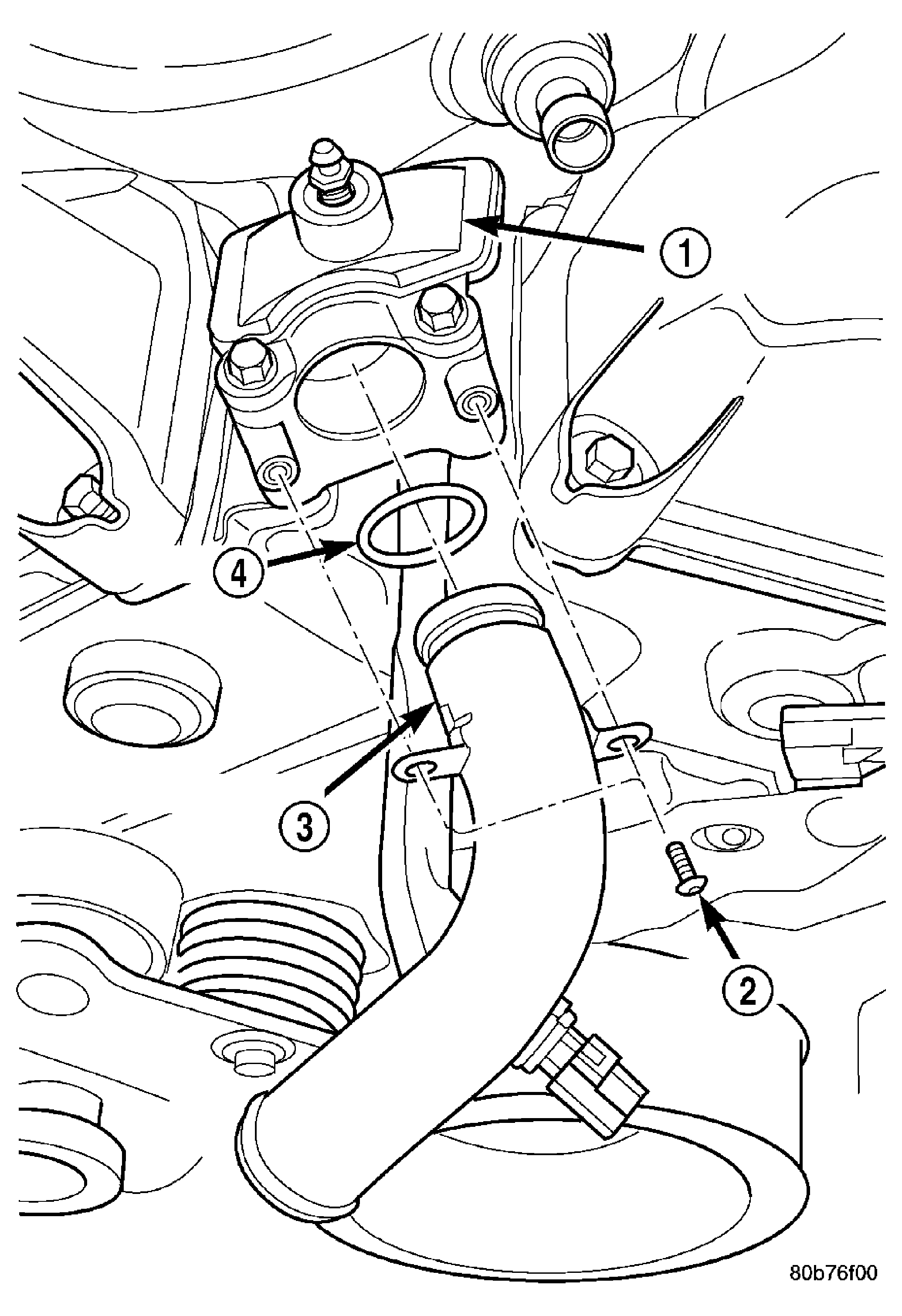

| 1 - OUTLET CONNECTOR |
| 2 - SCREW (2) |
| 3 - WATER HOUSING OUTLET WITH TUBE |
| 4 - O-RING |
- Inspect heater tube O-ring (4). Replace as necessary.
- Lubricate O-ring (4) with a silicone type grease such as Mopar® Dielectric Grease.
- Install the Water housing Outlet with tube (3) by inserting tube in-between cylinder heads. Insert tube into outlet connector (1).
- Attach Water housing Outlet tube (3) to the retaining clip at rear of engine.
- Install attaching screws and tighten to 3 N.m (30 in. lbs.).
- Install radiator (Refer to COOLING/ENGINE/RADIATOR - INSTALLATION) .
- Fill cooling system (Refer to COOLING - STANDARD PROCEDURE) .
- Operate engine until it reaches normal operating temperature. Check cooling system for correct fluid levels.
