3.5L Engine

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative cable.
  2. Raise vehicle on hoist.
  3. Remove belly pan. Refer to BELLY PAN .
  4. Drain cooling system (Refer to COOLING - STANDARD PROCEDURE) .

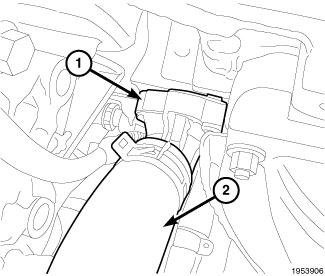

    Fig 1: Thermostat 3.5L
    G00494253Courtesy of DAIMLERCHRYSLER CORP.
    1 - THERMOSTAT HOUSING
    2 - RADIATOR HOSE
  5. Lower vehicle on hoist.
  6. Remove air box assembly. Refer to HOUSING-AIR CLEANER .
  7. Disconnect lower radiator hose (2) from thermostat housing (1). See Fig 1.
  8. Remove thermostat housing bolts.
  9. Remove housing, thermostat, and gasket.
    NOTE: The OEM thermostat is staked in place at the factory. To ensure proper seating of replacement thermostat, carefully remove the bulged metal from the thermostat housing using a suitable hand held grinder. It is not necessary to restake the replacement thermostat into the thermostat housing.
  10. Clean gasket surfaces.
