3.5L Engine

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

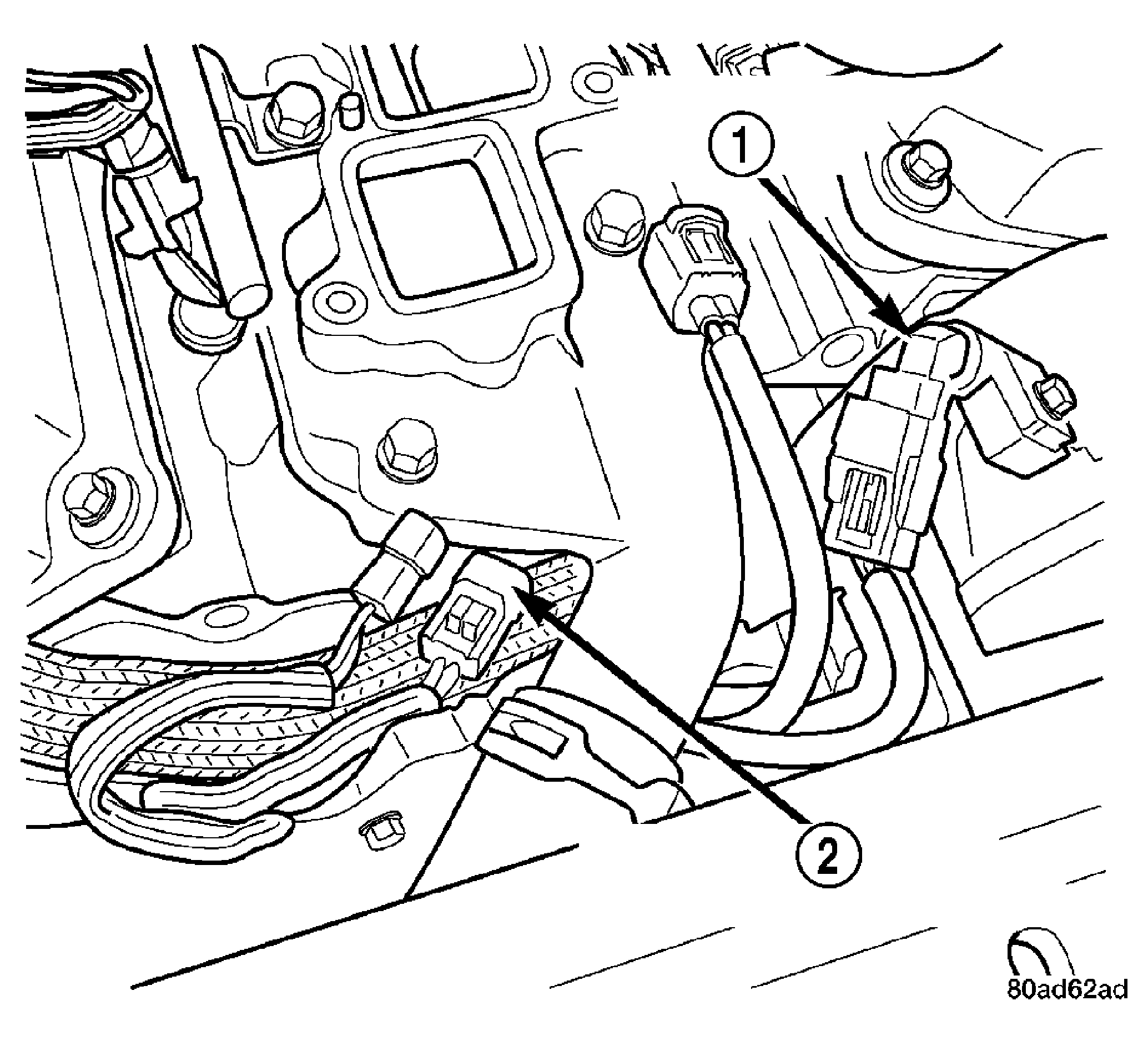

Fig 1: Engine Coolant Temperature Sensor - 3.5L

Courtesy of DAIMLERCHRYSLER CORP.

1 - CAMSHAFT POSITION SENSOR

2 - ENGINE COOLANT TEMPERATURE SENSOR

Disconnect negative battery cable.
Partially drain cooling system (Refer to COOLING - STANDARD PROCEDURE) .
With the engine cold, disconnect coolant sensor electrical connector.
Remove sensor (2).
