5.7L/6.1L Engine

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

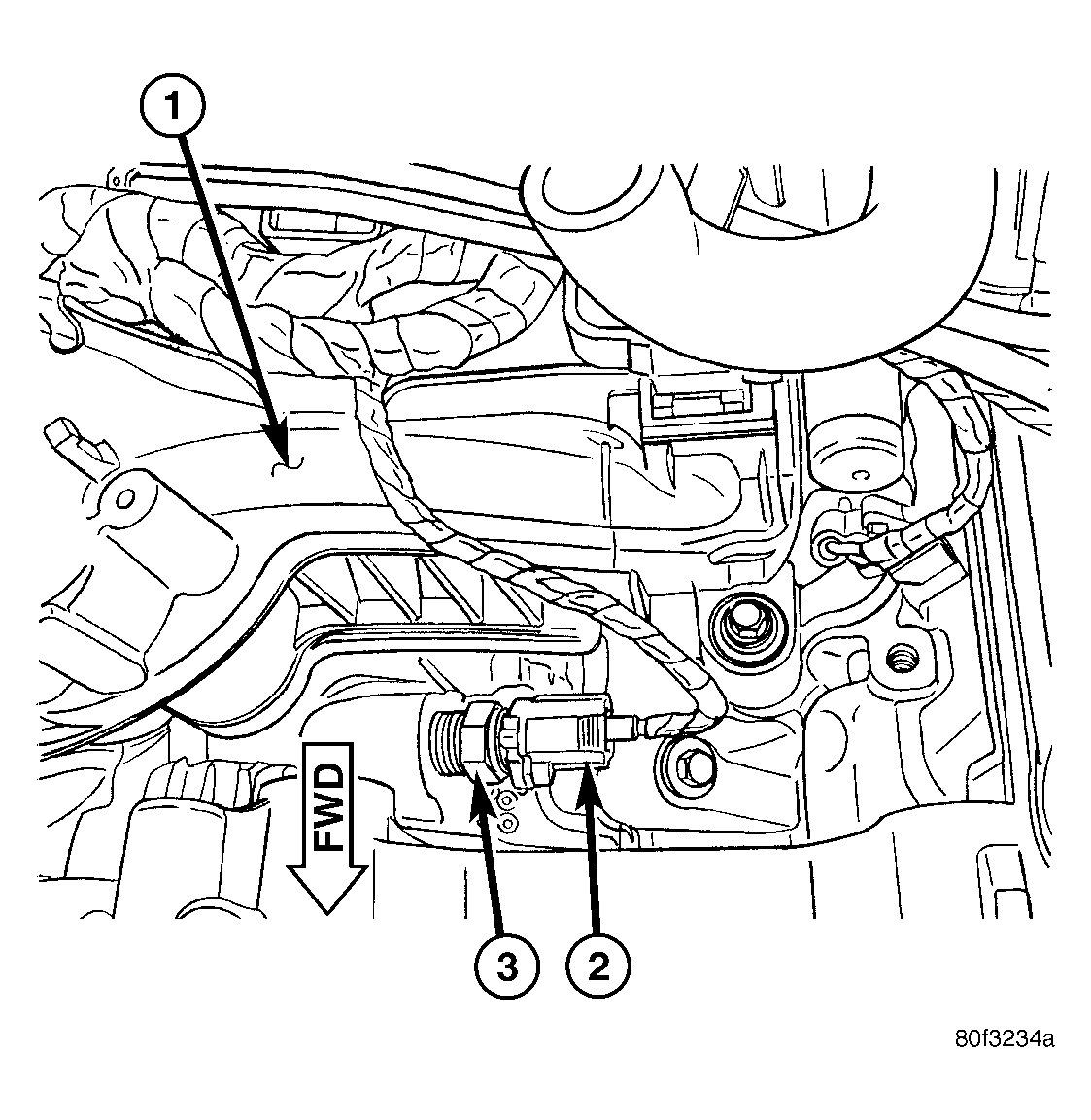

Fig 1: Remove/Install ECT 5.7L
GC0014699Courtesy of DAIMLERCHRYSLER CORP.
  1. Apply thread sealant to sensor threads.
  2. Install ECT sensor (3) to engine.
  3. Tighten sensor to 11 N.m (97.3 in. lbs.) torque.
  4. Connect electrical connector (2) to ECT sensor (3).
  5. Fill the cooling system (Refer to COOLING - STANDARD PROCEDURE) .
