Engine Block Heater: Removal: Notes

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

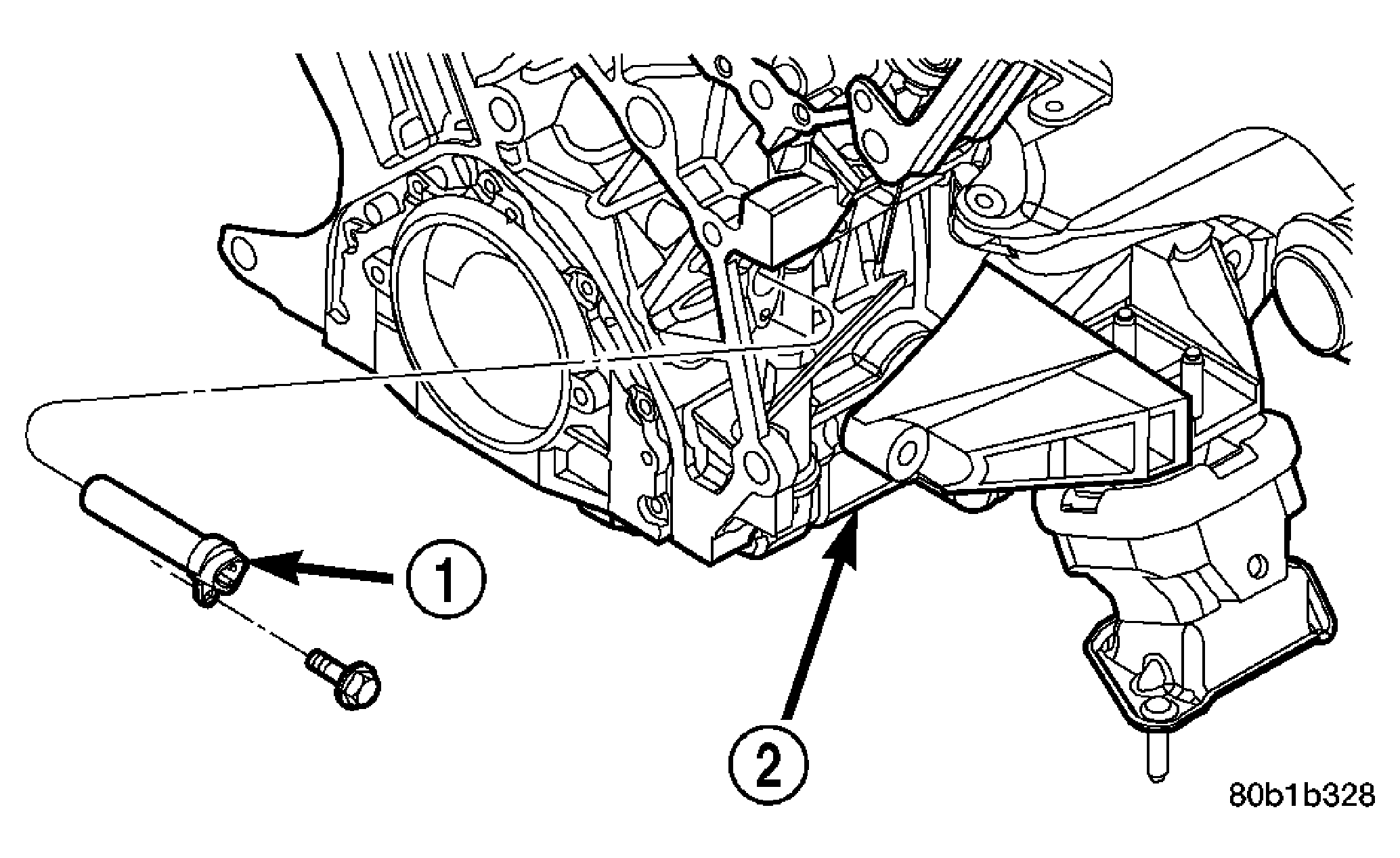

Fig 1: Engine Block Heater

Courtesy of DAIMLERCHRYSLER CORP.

1 - BLOCK HEATER

2 - ENGINE - RIGHT SIDE

Raise vehicle on hoist.
Detach power cord plug from block heater (1).
Remove block heater attaching screw located below heater terminals.
Remove block heater from cylinder block (2).
