Engine Block Heater: Installation: Notes

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

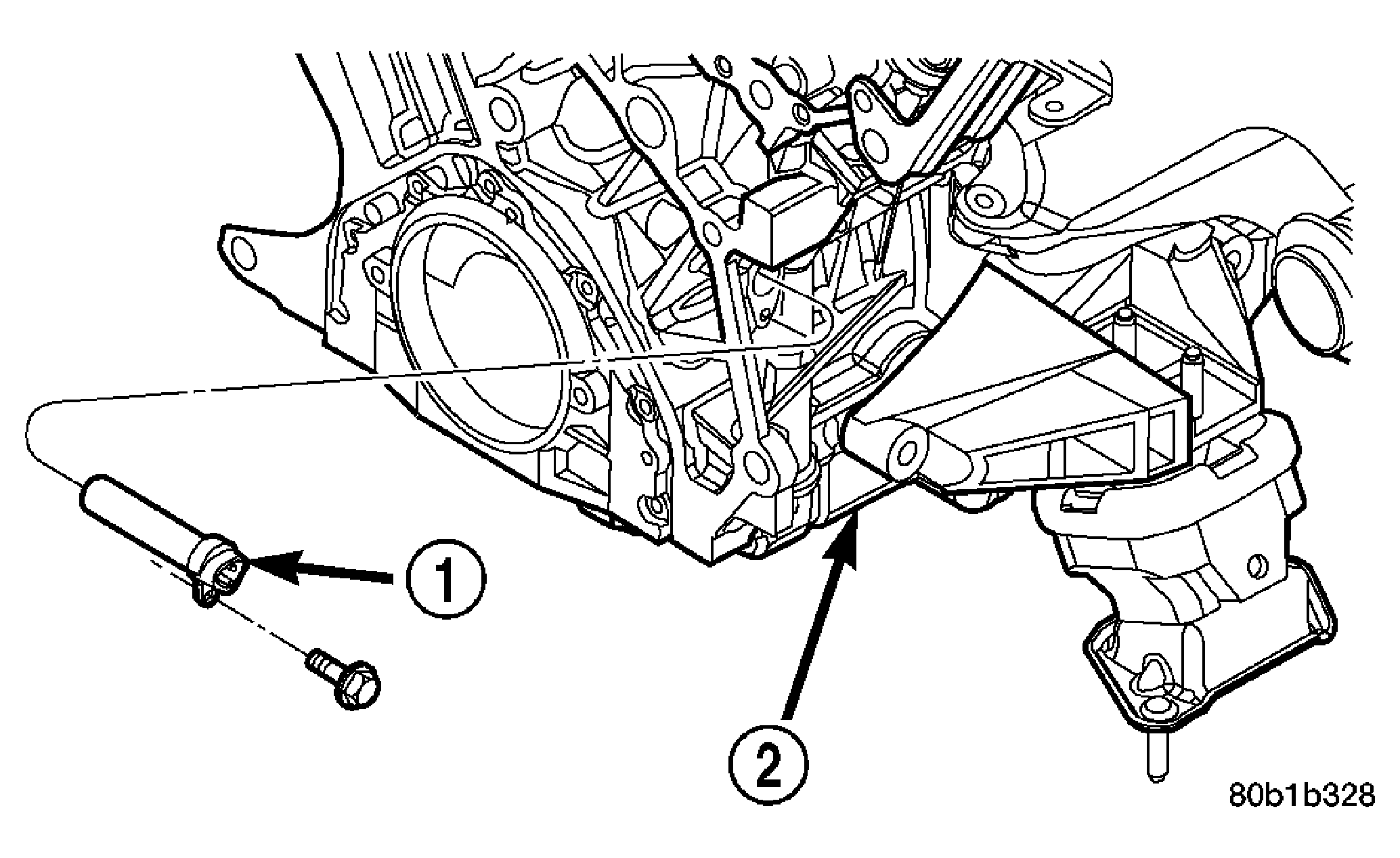

Fig 1: Engine Block Heater

Courtesy of DAIMLERCHRYSLER CORP.

1 - BLOCK HEATER

2 - ENGINE - RIGHT SIDE

Thoroughly clean cylinder block heater cavity.
Insert heater assembly (1) into block (2) with mounting hole is located below heater terminals.
Install mounting screw and tighten to 12 N.m (105 in. lbs.).
Attach power cord to heater.
CAUTION: To prevent damage, the power cord must be secured in its retainer clips, and not positioned so it could contact linkages or exhaust manifolds.
Lower vehicle.
