Coolant Recovery Container: Installation
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

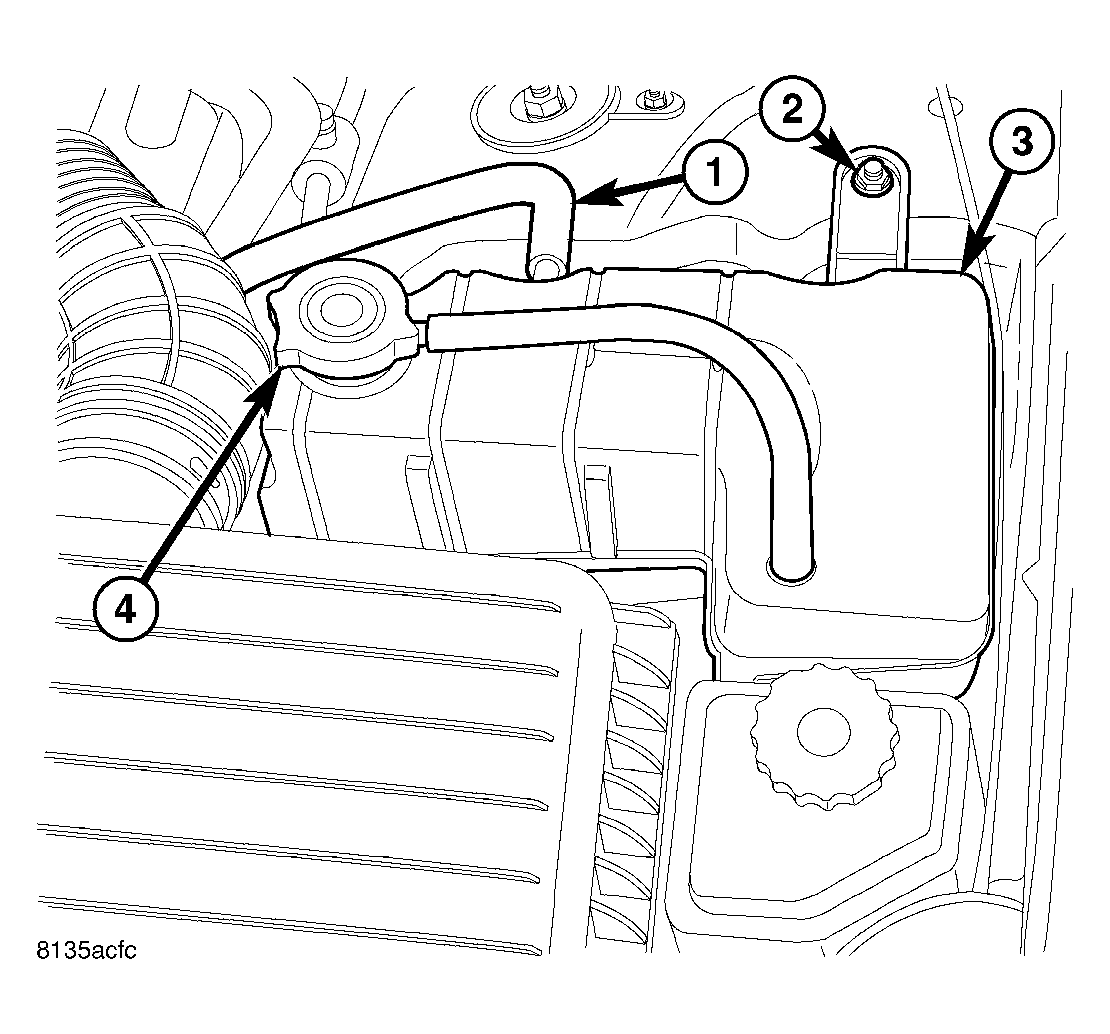

| 1 - COOLANT RECOVER TUBE |
| 2 - NUT |
| 3 - COOLANT RECOVERY CONTAINER |
| 3 - COOLANT RECOVERY PRESSURE CAP |
- Position coolant recovery container (3).
- Install mounting nuts (2). Tighten to 10 N.m (89 in. lbs.).
- Install coolant recovery tube (1).
- Fill cooling system (Refer to COOLING - STANDARD PROCEDURE) .
- Install coolant recovery container pressure cap (4).
