Section 24 (Engine & Automatic Transmission Cooling System): Cooling: Operation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

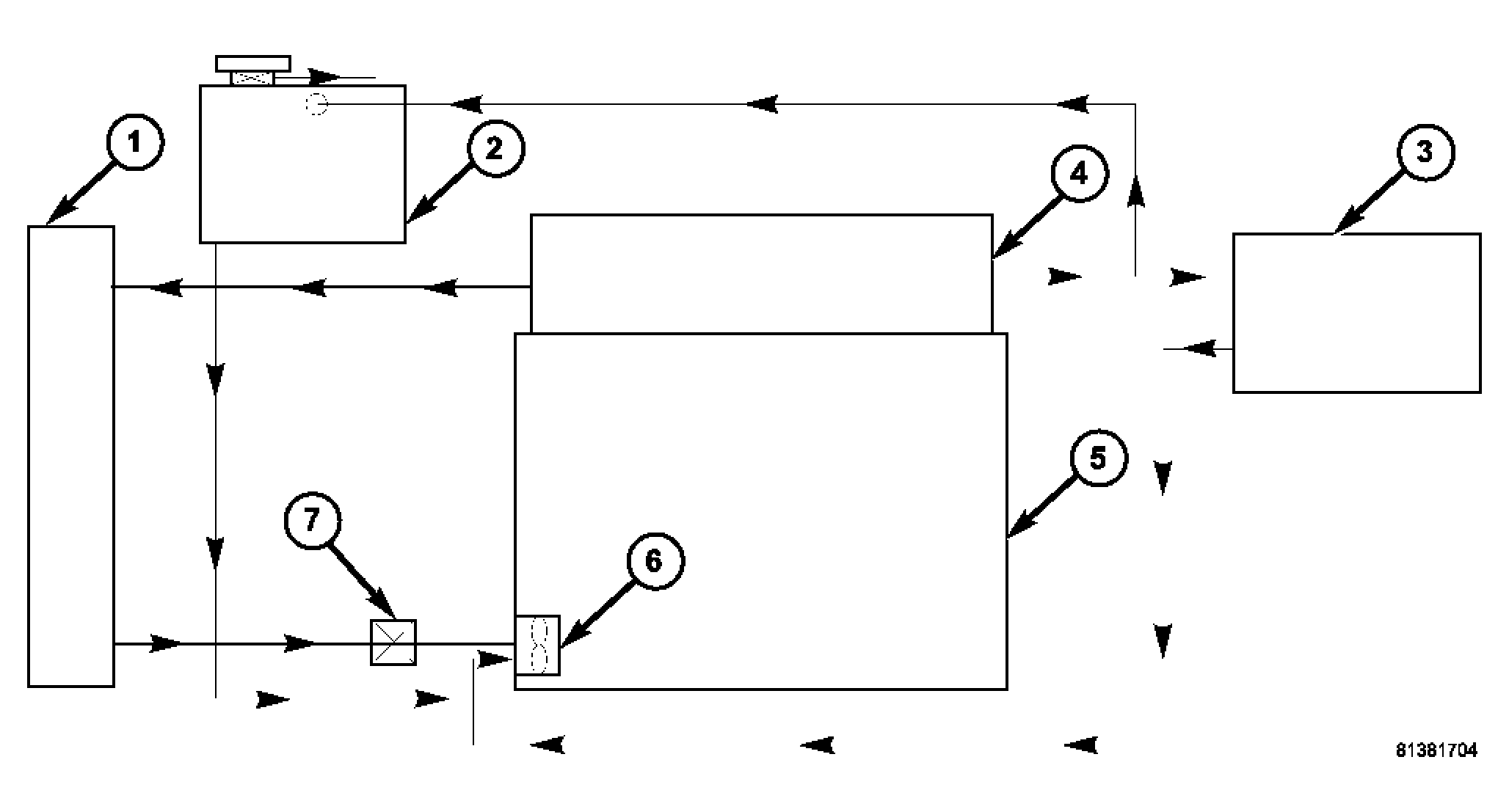

Fig 1: Cooling Flow - 2.7L Engine

Courtesy of DAIMLERCHRYSLER CORP.

1 - RADIATOR

2 - COOLANT RECOVERY BOTTLE

3 - HEATER CORE

4 - CYLINDER HEAD

5 - CYLINDER BLOCK

6 - WATER PUMP

7 - THERMOSTAT

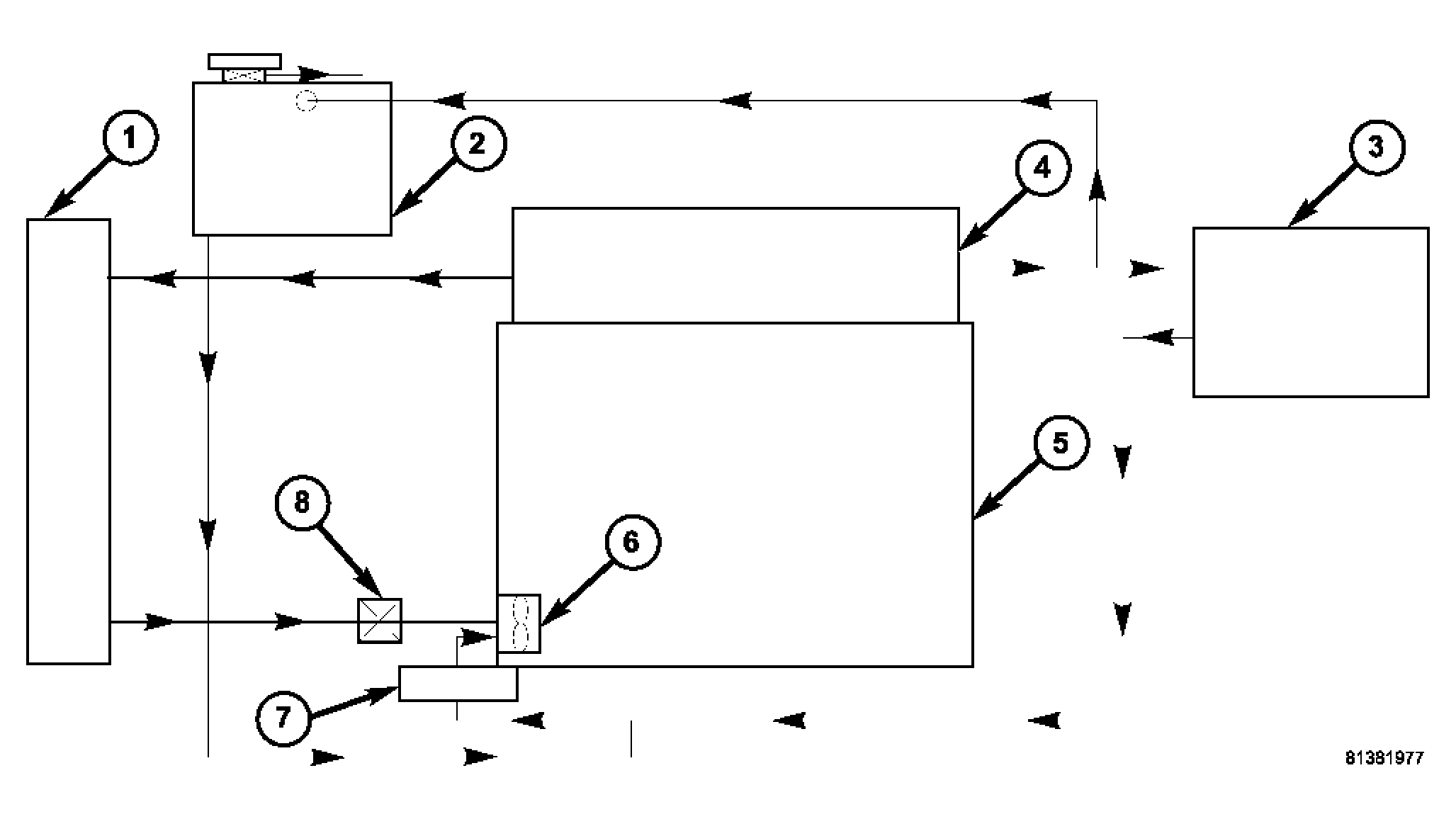

Fig 2: Cooling Flow - 3.5L W/Engine Oil Cooler Engine

Courtesy of DAIMLERCHRYSLER CORP.

1 - RADIATOR

2 - HOT BOTTLE/COOLANT RECOVERY BOTTLE

3 - HEATER CORE

4 - CYLINDER HEAD

5 - CYLINDER BLOCK

6 - WATER PUMP

7 - ENGINE OIL COOLER

8 - THERMOSTAT

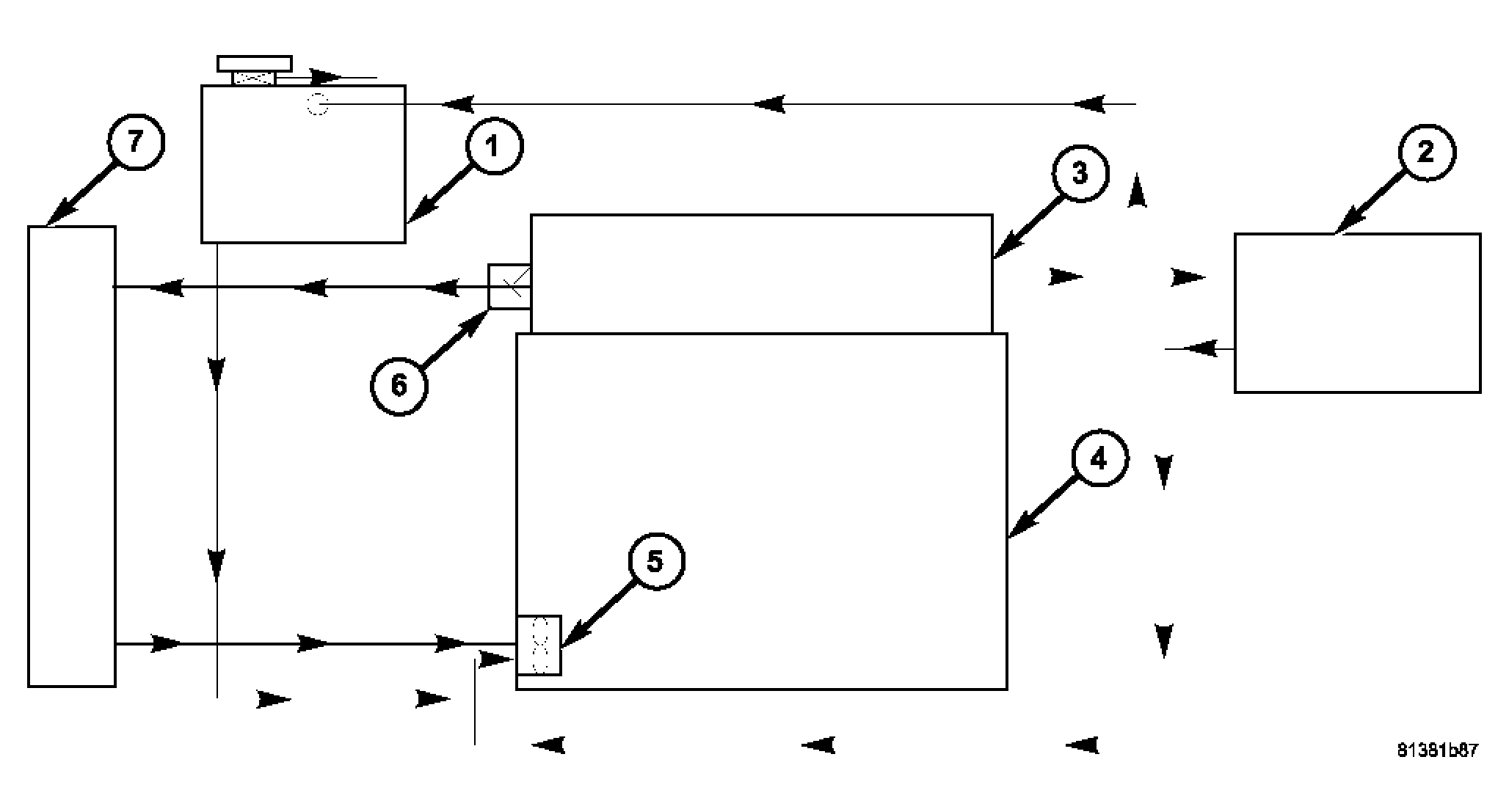

Fig 3: Cooling Flow - 5.7L/6.1L Engine

Courtesy of DAIMLERCHRYSLER CORP.

1 - HOT BOTTLE/COOLANT RECOVERY BOTTLE

CHARGE AIR COOLER - DIESEL ENGINE

2 - HEATER CORE

3 - CYLINDER HEAD

4 - CYLINDER BLOCK

5 - WATER PUMP

6 - THERMOSTAT

7 - RADIATOR

Fig 4: COOLING FLOW - 3.0L DIESEL

Courtesy of DAIMLERCHRYSLER CORP.

The cooling system regulates engine operating temperature. It allows the engine to reach normal operating temperature as quickly as possible. It also maintains normal operating temperature and prevents overheating.

The cooling system also provides a means of heating the passenger compartment and cooling the automatic transmission fluid (if equipped). The cooling system is pressurized and uses a centrifugal water pump to circulate coolant throughout the system.
