3.5L Engine
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

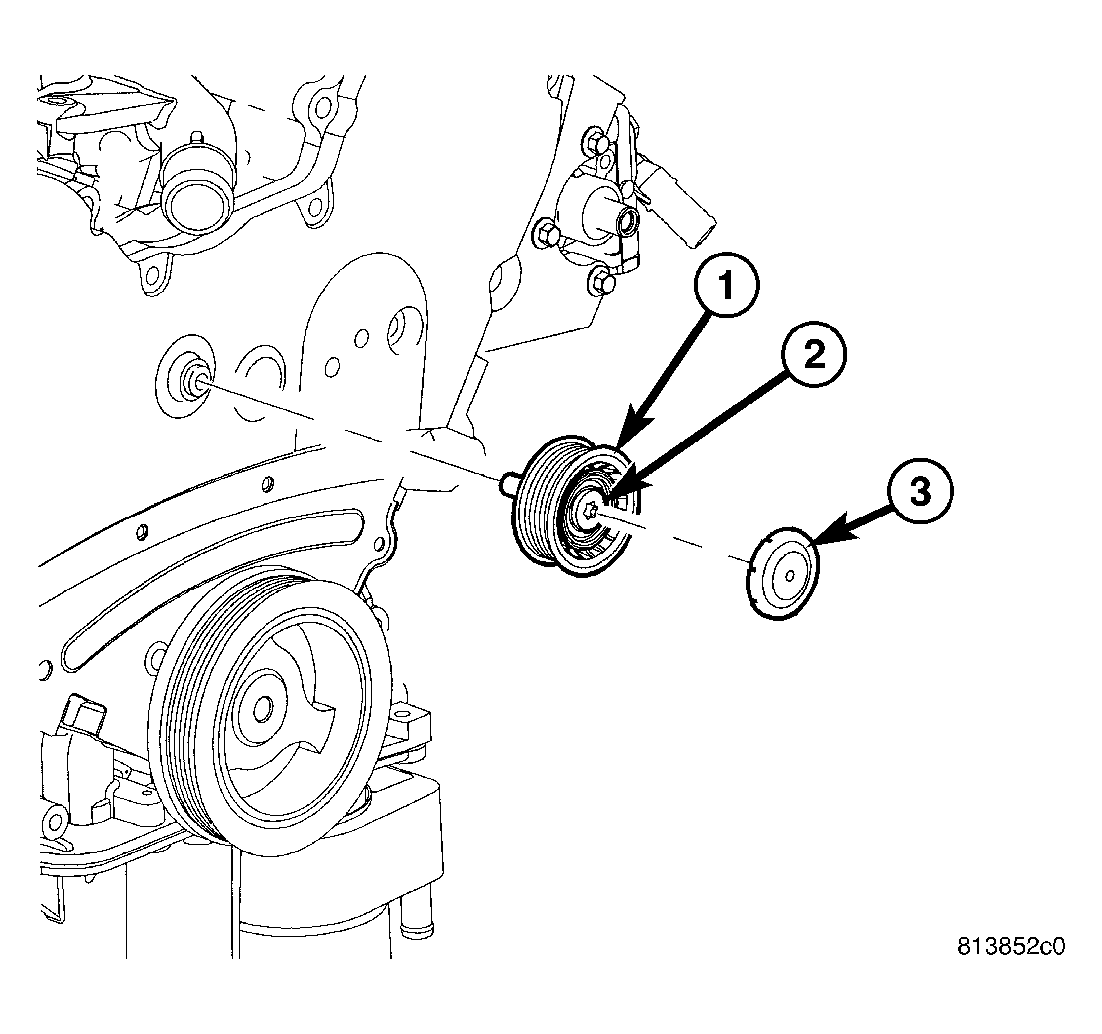

| 1 - IDLER PULLEY |
| 2 - BOLT (part of pulley) |
| 3 - COVER |
- Position idler pulley (1).
- Tighten bolt to (2) 28 N.m (250 in. lbs.).
- Install cover (3).
- Install accessory drive belt (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
