2.7L Engine
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

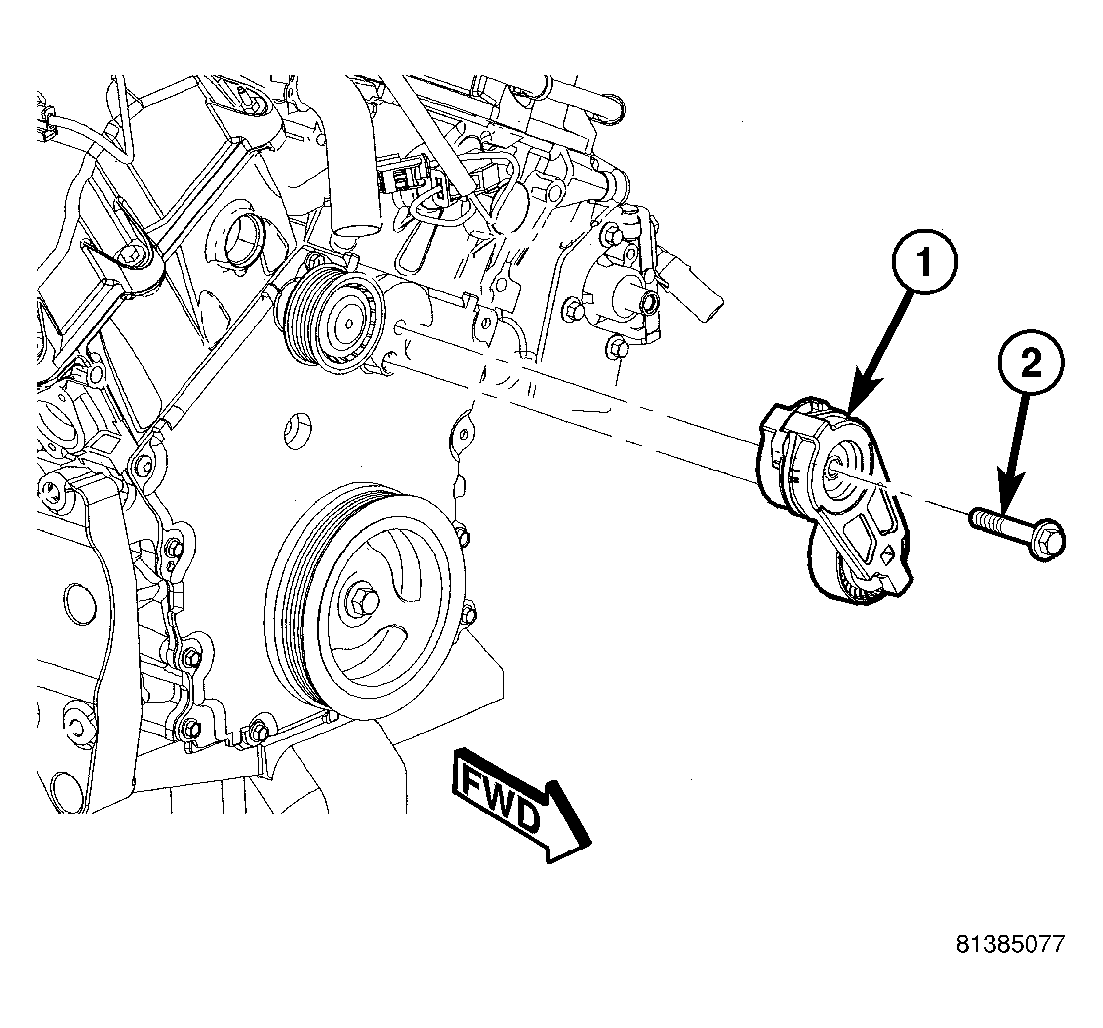

| 1 - TENSIONER |
| 2 - BOLT |
- Install tensioner bolt (2) to tensioner (1). Tighten bolt to 34 N.m (40 ft. lbs.) torque.
- Install accessory drive belt (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
On all engines, the tensioner (1) is equipped with an indexing tang on back of tensioner and an indexing stop on tensioner housing. If a new belt is being installed, tang must be within approximately 6 - 8mm (0.24 - 0.32 in.) of indexing stop (i.e. tang is approximately between the two indexing stops). Belt is considered new if it has been used 15 minutes or less.
- Check belt indexing marks.
