Circuit Schematic

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

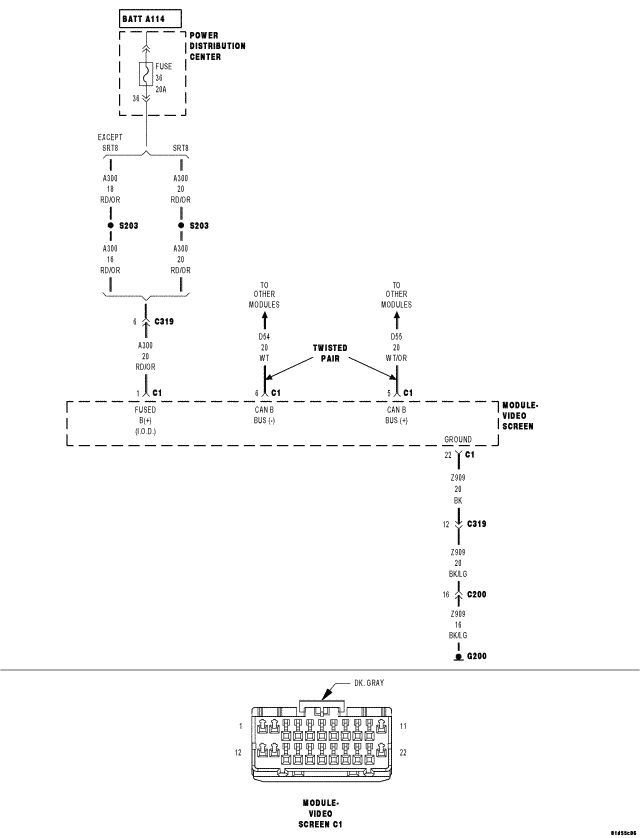

Fig 1: (D55) & (D54) CAN B Bus Circuit Schematic
GC0070141Courtesy of CHRYSLER LLC
