Integrated Control Unit

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: For Adaptive Cruise Control (ACC) equipped vehicles, the ABM and HCU are not separately serviceable. They must be replaced as an assembly.
  1. Remove two screws attaching the mounting bracket to the HCU. Remove the bracket.

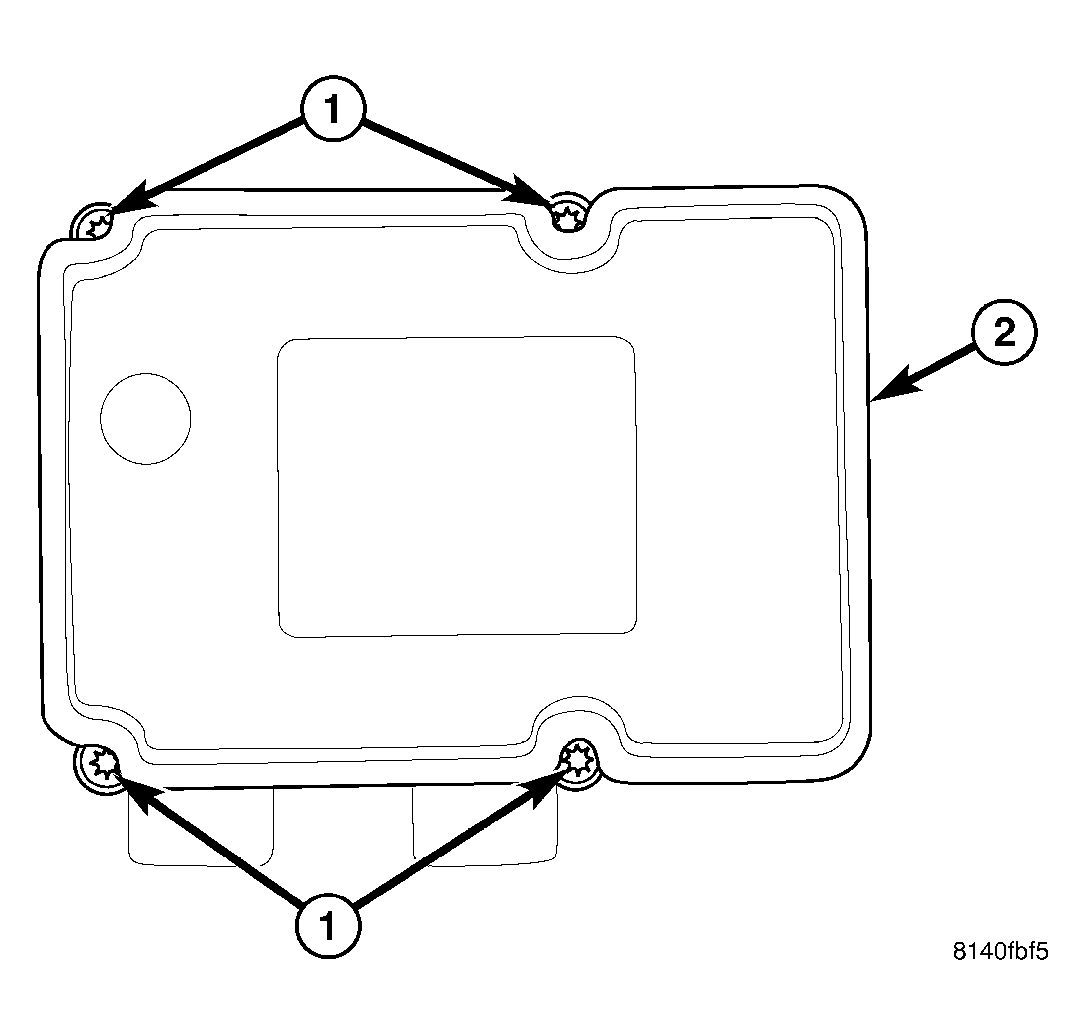

    Fig 1: ABM Mounting Screws - With Traction Control
    GC0039493Courtesy of CHRYSLER LLC
  2. Remove four screws (1) attaching ABM (2) to HCU.

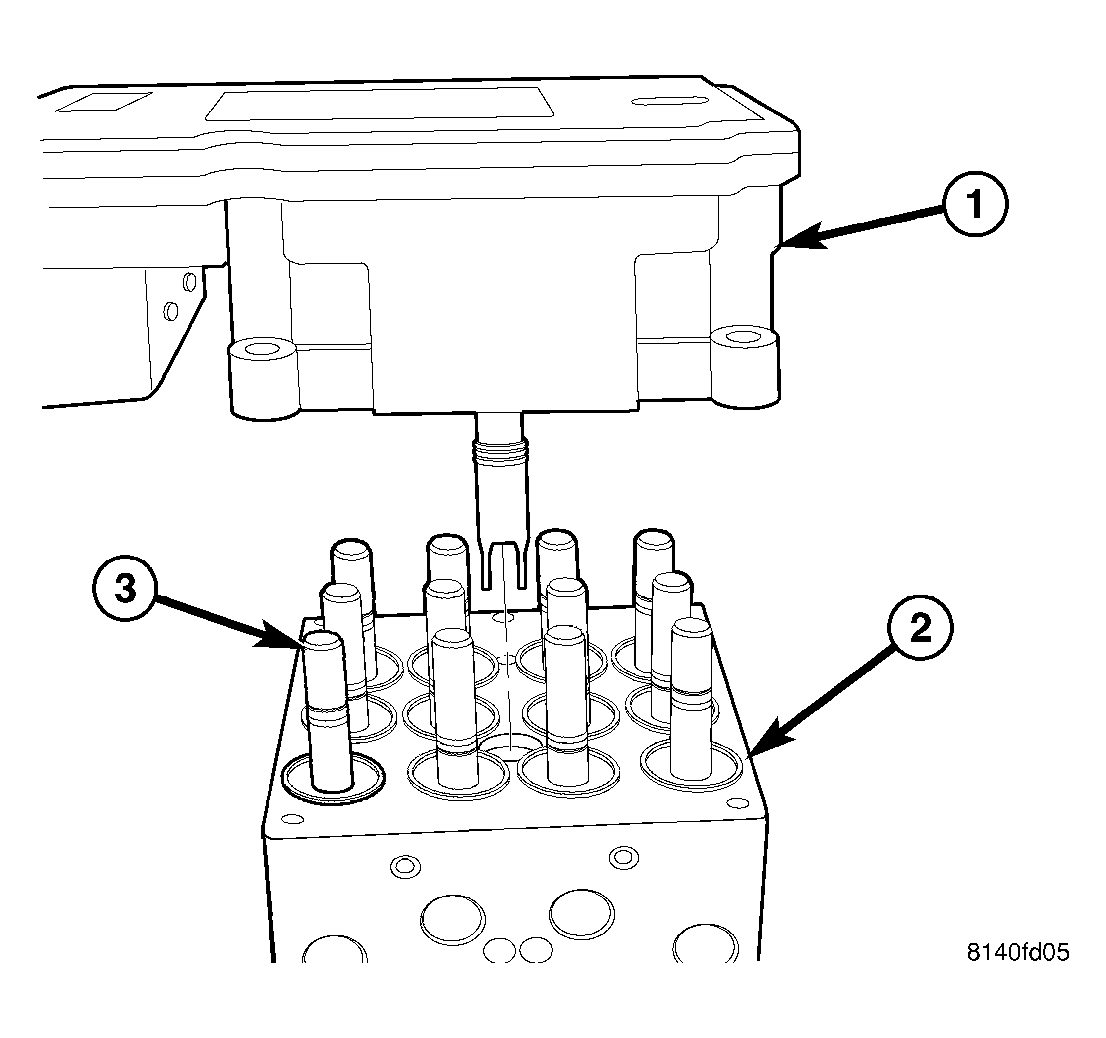

    Fig 2: ABM Assembly To HCU
    GC0039494Courtesy of CHRYSLER LLC
  3. Separate ABM (1) from HCU (2).
