Washer Fluid Level Switch

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

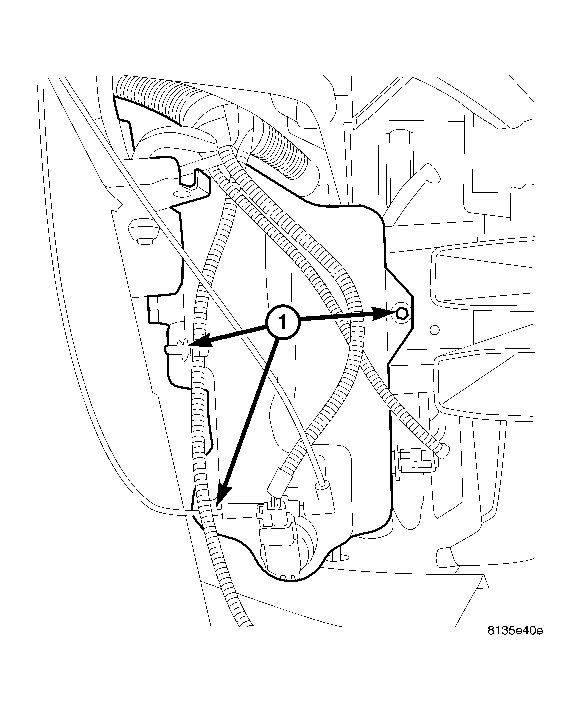

Fig 1: Washer Fluid Reservoir
GC0016759Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Drain washer fluid from the reservoir and into a suitable clean container. This can be done by disconnecting the windshield washer hose from the front (outboard) washer pump and allowing the washer fluid to drain into a container through a temporary jumper hose connected to the front washer pump.
  3. Remove the washer reservoir. See REMOVAL .

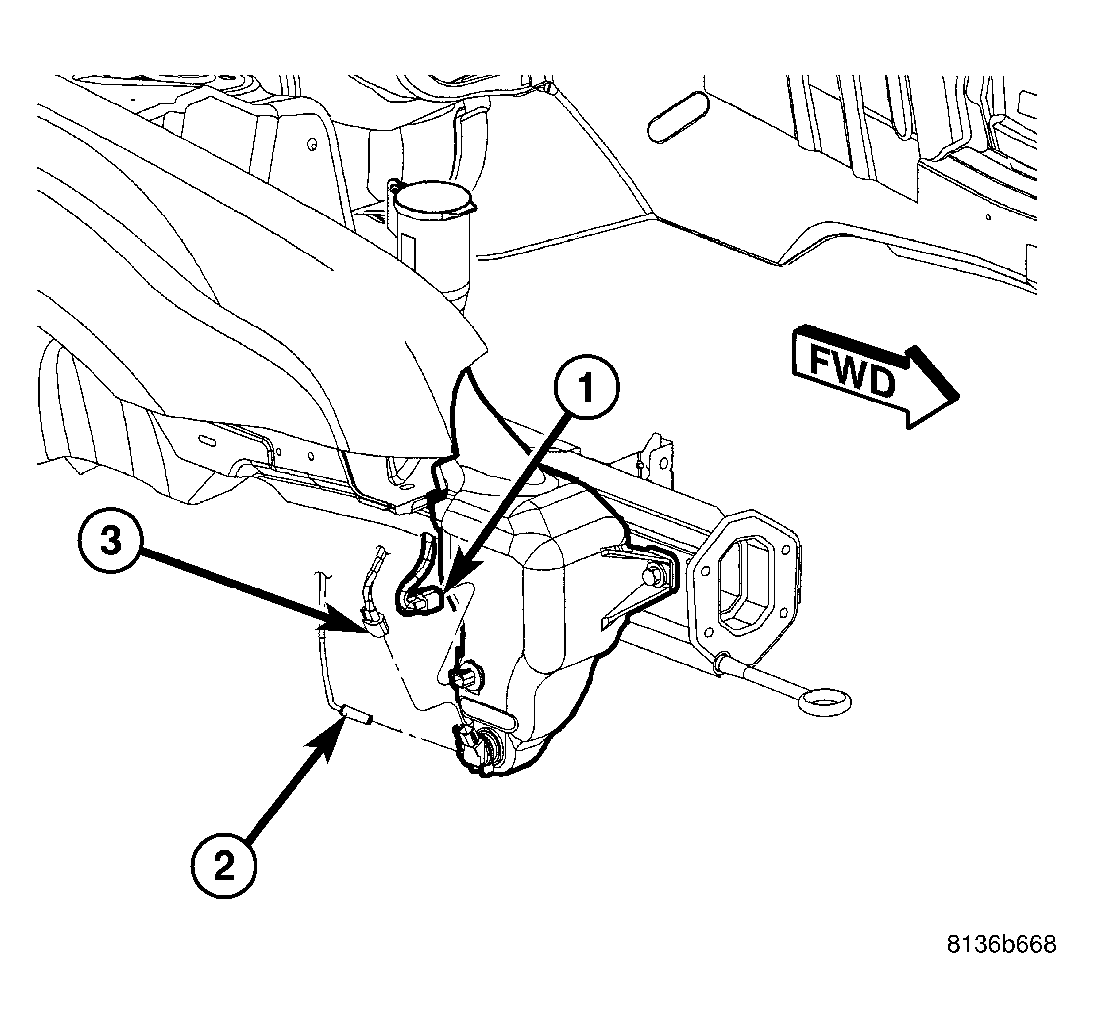

    Fig 2: Washer Fluid Level Switch
    GC0016758Courtesy of CHRYSLER LLC
  4. Remove the washer fluid level switch by pulling out of reservoir. Inspect the grommet and if installing a new switch, always use a new grommet.
