175MM FIA Front Axle Assembly: Notes

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

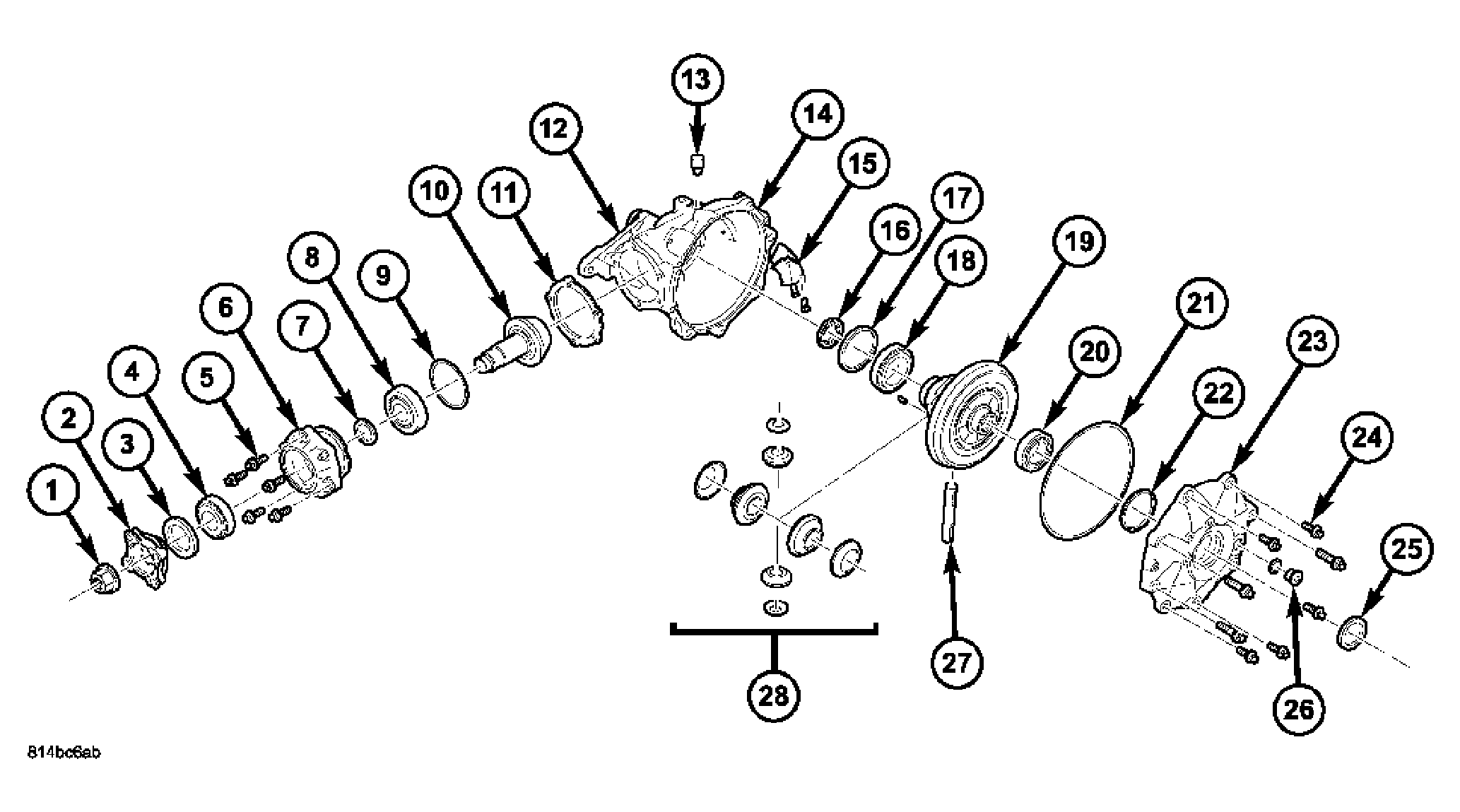

Fig 1: 175mm FIA Front Axle Exploded View

Courtesy of CHRYSLER LLC

1 - NUT, PINION FLANGE1	15 - BAFFLE, VENT
2 - FLANGE, PINION	16 - SEAL, AXLE
3 - SEAL, PINION	17 - SHIM, PRELOAD
4 - BEARING, PINION TAIL	18 - BEARING, DIFFERENTIAL SIDE
5 - BOLT, PINION HOUSING	19 - ASSEMBLY, RING GEAR/DIFFERENTIAL
6 - HOUSING, PINION	20 - BEARING, DIFFERENTIAL SIDE
7 - SPACER, SELECT	21 - SEAL, AXLE COVER O-RING
8 - BEARING, PINION HEAD	22 - SHIM, BEARING PRELOAD
9 - SEAL, PINION HOUSING O-RING	23 - COVER, AXLE HOUSING
10 - GEAR, PINION	24 - BOLT, AXLE HOUSING COVER
11 - SHIM, PINION DEPTH (SELECT)	25 - SEAL, AXLE
12 - HOUSING, AXLE	26 - PLUG, AXLE FILL
13 - VENT, HOUSING	27 - SHAFT, DIFFERENTIAL PINION
14 - HOUSING, AXLE	28 - SIDE GEAR ASSEMBLY

Fig 2: Pinion Housing Bolts

Courtesy of CHRYSLER LLC

Remove pinion housing assembly bolts (1).

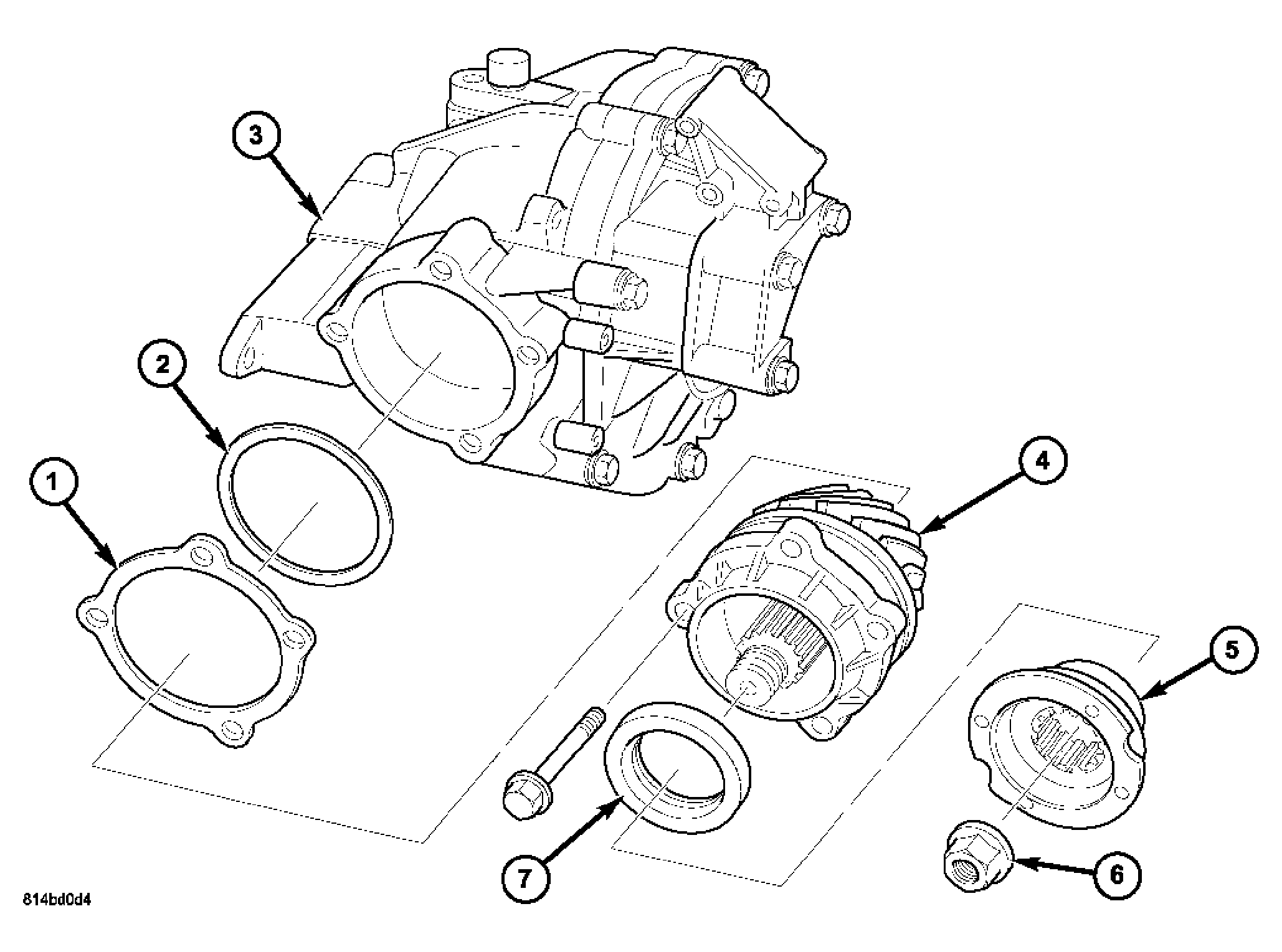

Fig 3: Removing/Installing Pinion Assembly
Courtesy of CHRYSLER LLC
Remove pinion housing assembly (4). See Fig 3.

Fig 4: Pinion Depth Shim
Courtesy of CHRYSLER LLC
Remove pinion depth shim (1).

Fig 5: Measuring Pinion Housing Assembly Turning Torque
Courtesy of CHRYSLER LLC
Measure pinion housing assembly rotating torque (1). Rotating torque should be 130-250 N.cm (12-22 in. lbs.). If rotating torque is outside of this range, bearing replacement is required. Refer to PINION HOUSING DISASSEMBLY .

Fig 6: Pinion In Vice
Courtesy of CHRYSLER LLC
Remove pinion flange nut (1). See Fig 6.

Fig 7: Pinion Puller
Courtesy of CHRYSLER LLC

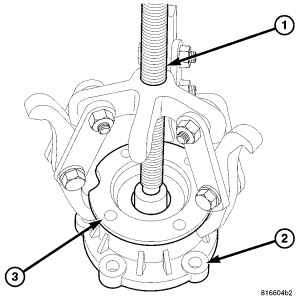

Using puller 1026 (1), pull pinion flange from shaft. See Fig 7.

Fig 8: Pinion Flange Remove/Install
Courtesy of CHRYSLER LLC
Remove pinion flange (1). See Fig 8.

Fig 9: Remove Pinion Seal/Tool
Courtesy of CHRYSLER LLC
Using suitable tool, remove pinion seal (1).

Fig 10: Pinion Housing O-Ring
Courtesy of CHRYSLER LLC
Remove pinion housing O-ring seal (1).

Fig 11: Measuring Differential Rotating Torque
Courtesy of CHRYSLER LLC
Measure differential rotating torque with Torque Tool C-4995-A. Rotating torque should be within 190-250 N.cm (17-22 in. lbs). Measurements recorded out of this range require differential side bearing replacement and/or side bearing preload adjustment.

Fig 12: Differential and Seal Removal/Installation
Courtesy of CHRYSLER LLC
Remove axle housing cover (5). Remove differential assembly (3) and inboard axle seal (2).

Fig 13: Axle Housing Cover O-Ring
Courtesy of CHRYSLER LLC
Remove axle housing cover o-ring (1).
