Axle Housing Assembly

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

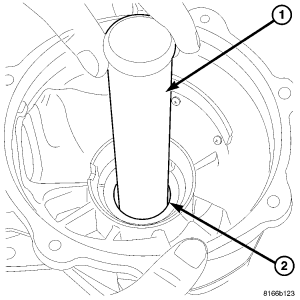

Fig 1: Install Inner Differential Seal
GC0052411Courtesy of CHRYSLER LLC
  1. Using Installer L-4507(1), install new axle seal (inner) (2) into housing. See Fig 1.

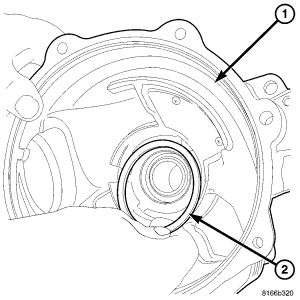

    Fig 2: Inner Differential Shim
    GC0052412Courtesy of CHRYSLER LLC
  2. Install side bearing preload shim (2) into axle housing (1).

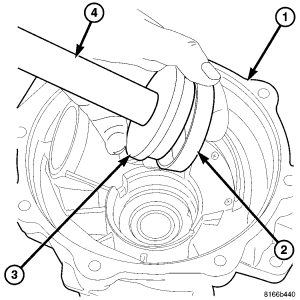

    Fig 3: Inner Differential Cup
    GC0052413Courtesy of CHRYSLER LLC
  3. Using Handle C-4171 (4) and Installer D145 (3) press new side bearing cup (2) into housing (1) until it bottoms.
    Fig 4: Side Bearing Preload Shim
    GC0014219Courtesy of CHRYSLER LLC
  4. Install differential side bearing preload shim (1) into axle housing cover (2).
    Fig 5: Installing Side Bearing Cup (Cover)
    GC0014226Courtesy of CHRYSLER LLC
  5. Using Handle C-4171 and Installer D-129 (1), press new side bearing cup into cover until it bottoms. Use suitable cup (3) to support and protect cover.
    Fig 6: Differential and Seal Removal/Installation
    GC0014192Courtesy of CHRYSLER LLC
  6. Install differential/ring gear assembly (3), new cover o-ring seal (4), and cover (5).
  7. Install and torque cover-to-housing bolts to:
    • M10x40 - 65 N.m (48 ft. lbs.)
    • M8x25 - 34 N.m (25 ft. lbs.)
    Fig 7: Measuring Differential Rotating Torque
    GC0014213Courtesy of CHRYSLER LLC
  8. Using Torque Tool C-4995 (1), measure differential side bearing rotating torque (preload). Rotating torque should be within 190-250 N.cm (17-22 in. lbs.).
    Fig 8: Measuring Side Bearing Preload Shim
    GC0014220Courtesy of CHRYSLER LLC
  9. If rotating torque is below this range, disassemble housing, measure and install slightly thicker preload shims (1). Add thickness equally to both sides. If rotating torque is above this range, disassemble housing, measure and install slightly thinner preload shims. Remove thickness equally from both sides.
    Fig 9: Pinion Housing O-Ring
    GC0052414Courtesy of CHRYSLER LLC
  10. Install new pinion housing o-ring seal (1). See Fig 9.
    Fig 10: Pinion Depth Shim
    GC0052404Courtesy of CHRYSLER LLC
  11. Install pinion housing assembly into axle housing with proper pinion depth shim (1). See Fig 10. See ADJUSTMENTS .
    Fig 11: Pinion Housing Bolts
    GC0014198Courtesy of CHRYSLER LLC
  12. Install and torque pinion housing-to-axle housing bolts (1) to 34 N.m (25 ft. lbs.)
  13. Measure and adjust ring gear backlash. Backlash should be within 0.05-0.11mm (0.002-0.004 in.). See ADJUSTMENTS .
