Ring Gear Backlash
WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Use Backlash Tool 9682 (1) to check backlash.

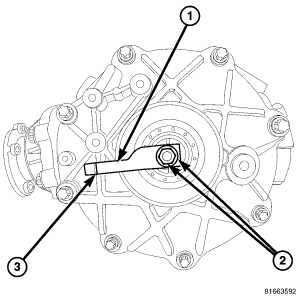

- Install Backlash Tool 9682 (1) into the side gear and tighten the lock down nut. See Fig 2.
- Install Dial Indicator C-3339 (2) to the differential cover and align the measuring tip of the Dial Indicator with the line on Backlash Tool (1). See Fig 3.
- Zero the Dial Indicator.
- While holding the pinion flange, rock the measuring arm back and forth stop - to - stop.
- Record the reading on the Dial Indicator.
- To bring backlash with in specifications, subtract from one side and add equal amount of cup shims to the other side of the differential case and the differential cover as needed. (1.34-2.98 mm (0.053-0.117 in.) Available in 0.04 mm (0.0015 in.) increments).
