Special Tools: Fuel

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Test Kit, Fuel

Courtesy of CHRYSLER LLC

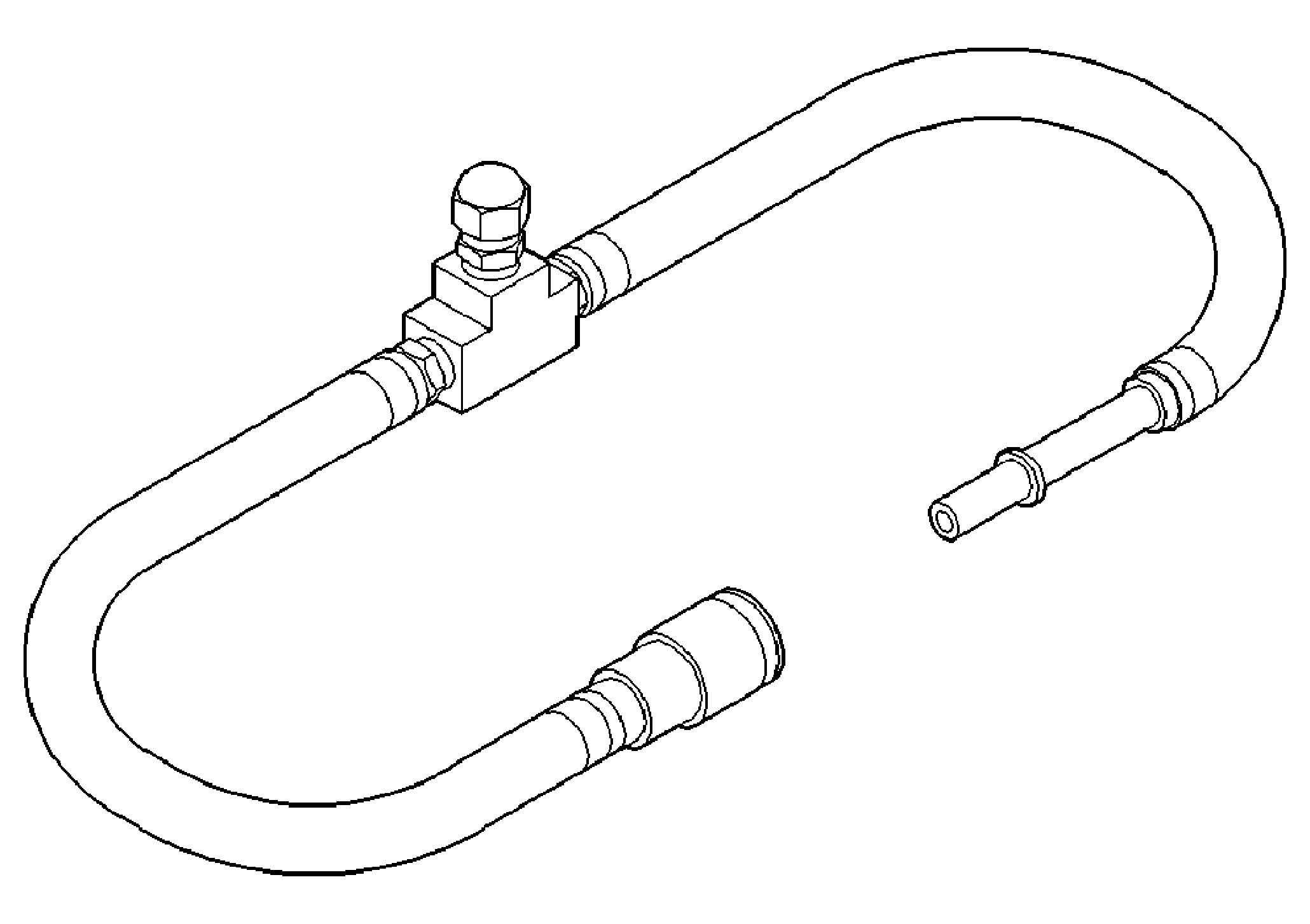

Fig 2: Adapters, Fuel Pressure Test-6539 and/or 6631

Courtesy of CHRYSLER LLC

Fig 3: Lock Ring Remover/Installer #9340

Courtesy of CHRYSLER LLC

Fig 4: Fuel Line Adapter 1/4

Courtesy of CHRYSLER LLC

Fig 5: O2S (Oxygen Sensor) Removal/Installer-C4907

Courtesy of CHRYSLER LLC

Fig 6: Oxygen sensor tool

Courtesy of CHRYSLER LLC
