Trim Lace: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

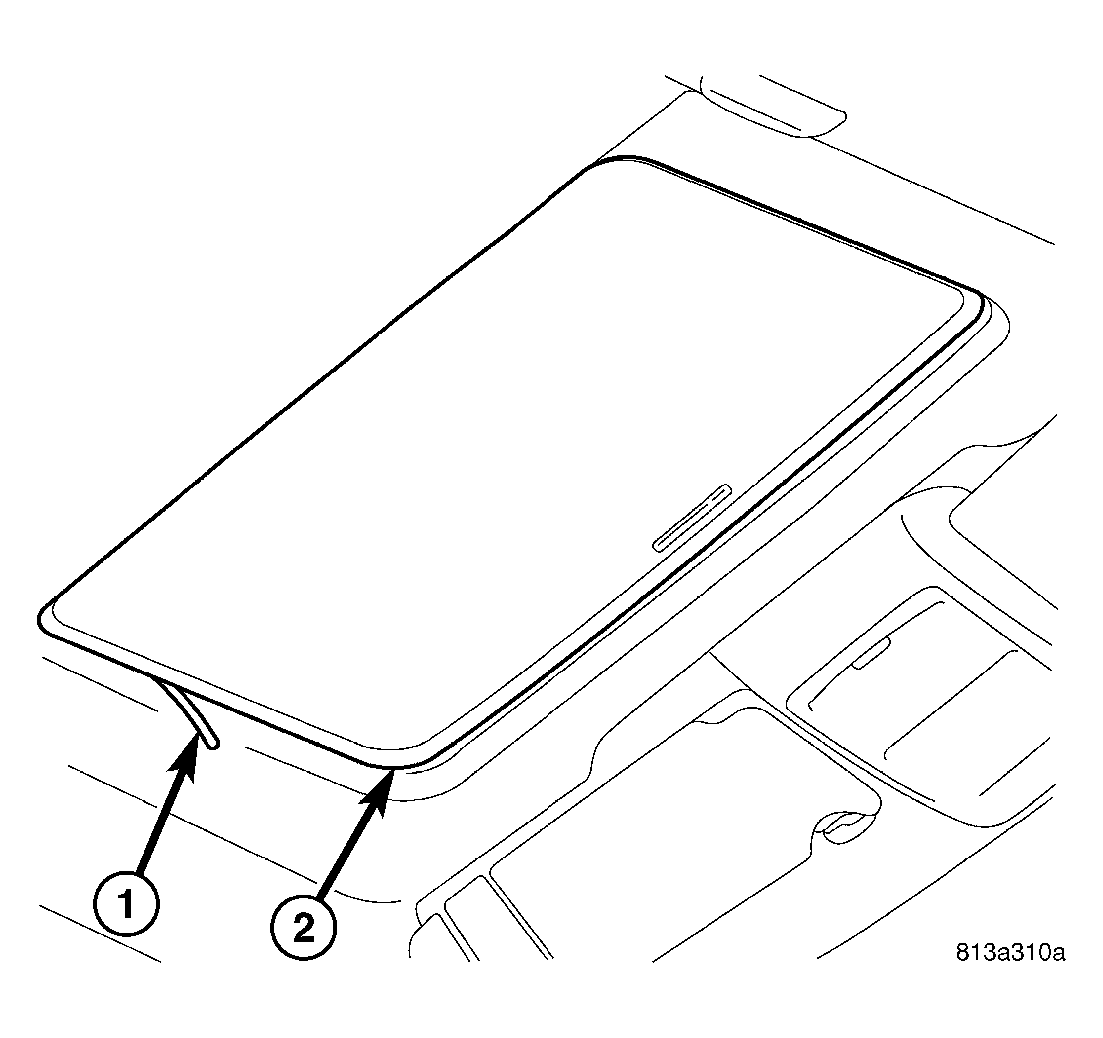

Fig 1: Trim Lace
GC0013626Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove trim lace (2) by holding one end of the trim lace at the butt joint and pulling horizontally into the opening until lace is completely loose from the headliner/sunroof joint.
