Rear Housing Hose

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

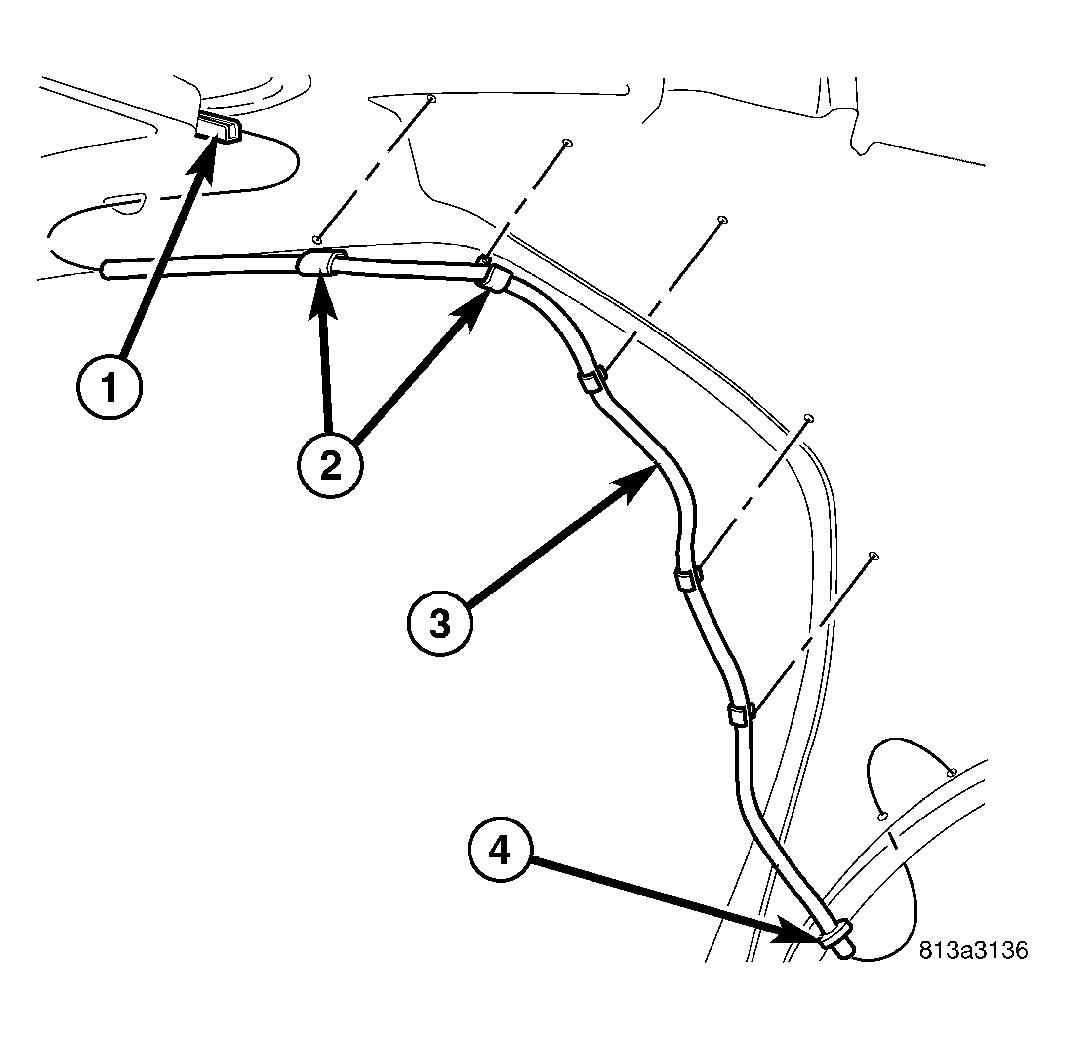

Fig 1: Rear Tube
GC0013620Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove headliner (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
  2. Disconnect the drain hose from the sunroof housing (1).
  3. Drain any liquid from hose connection, if necessary.
  4. Release the push pin fasteners (2) and separate the lower tube from the grommet in the body (4).
