Front Hoses

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

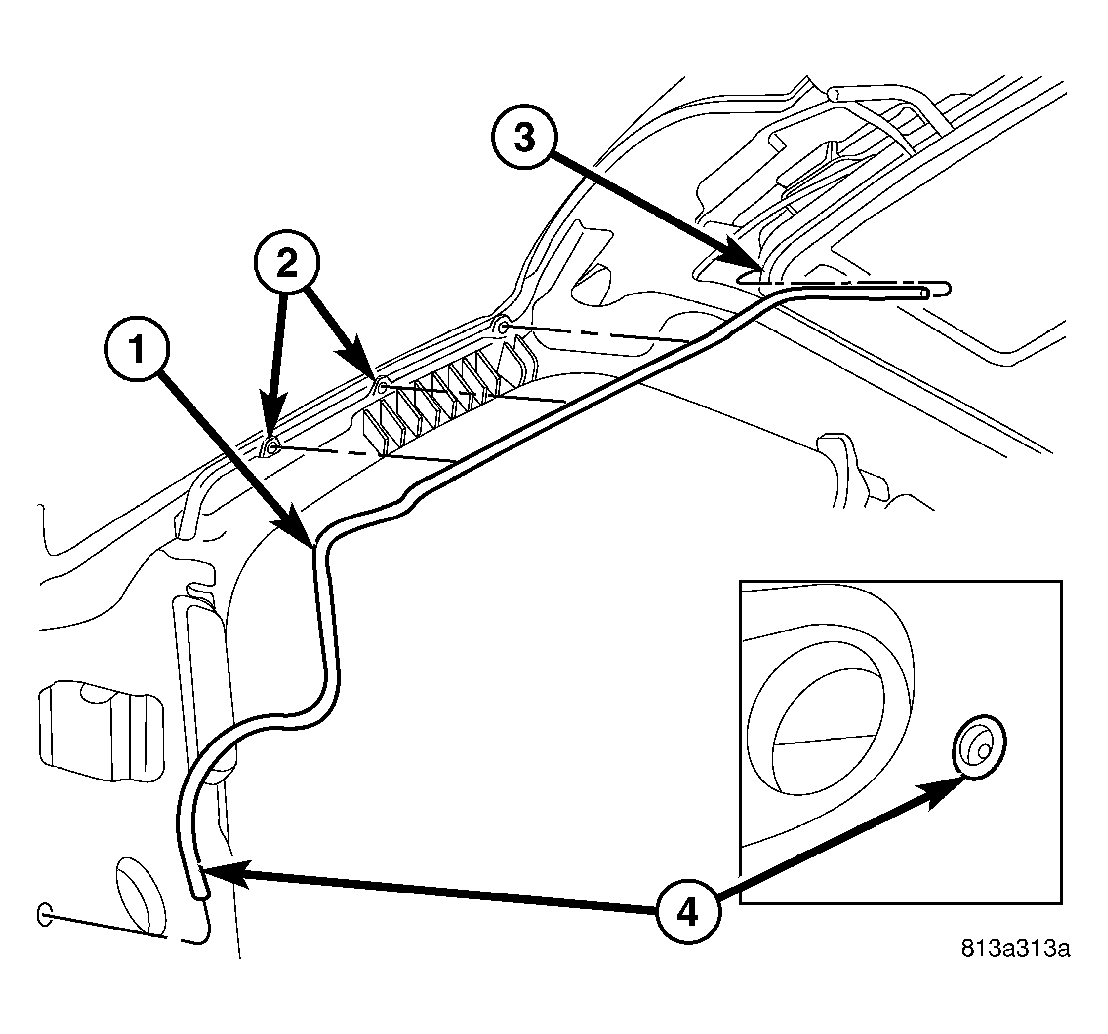

Fig 1: Front Tube
GC0013621Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove headliner (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
  2. Disconnect the drain hose from the sunroof housing (3).
  3. Separate the lower tube from the grommet in the body (4).
  4. Drain any liquid from hose connection, if necessary.
  5. Release the clips (2) and remove the tube (1).
