Sunroof - Service Information: Deflector-Wind: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Deflector Strap

Courtesy of DAIMLERCHRYSLER CORP.

Open the sunroof fully.
Remove the strap screws (2) from the beam area release the strap (3).

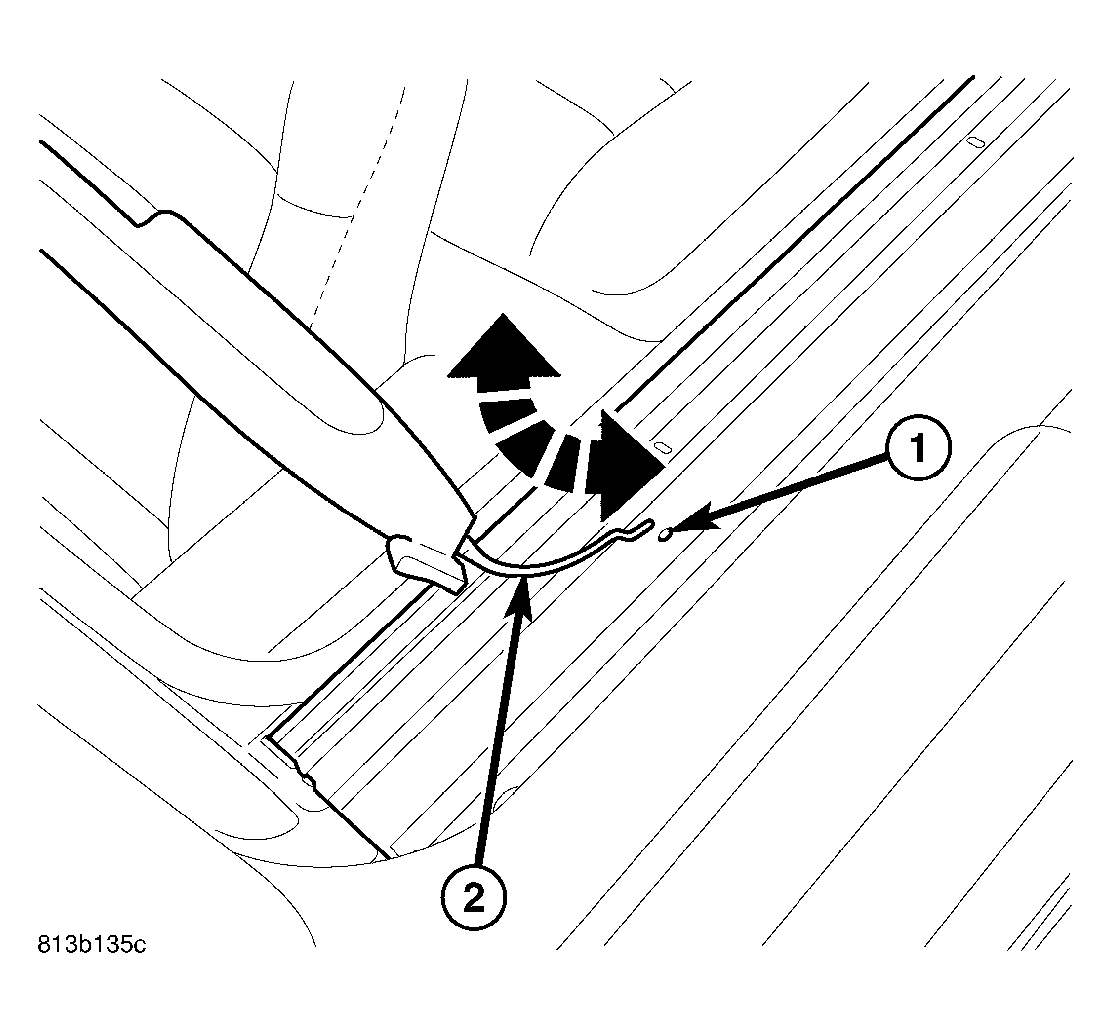

Fig 2: Wind Deflector
Courtesy of DAIMLERCHRYSLER CORP.
Rotate the deflector up and remove springs (2) from the holes in the frame (1).
