Cover-Guide Mechanism: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Mechanism Cover
GC0013605Courtesy of DAIMLERCHRYSLER CORP.
  1. Move the glass panel to the full closed position.
  2. Slide sunshade rearward to the open position.
  3. Separate the mechanism covers (2) from the tabs (1) on the glass panel.

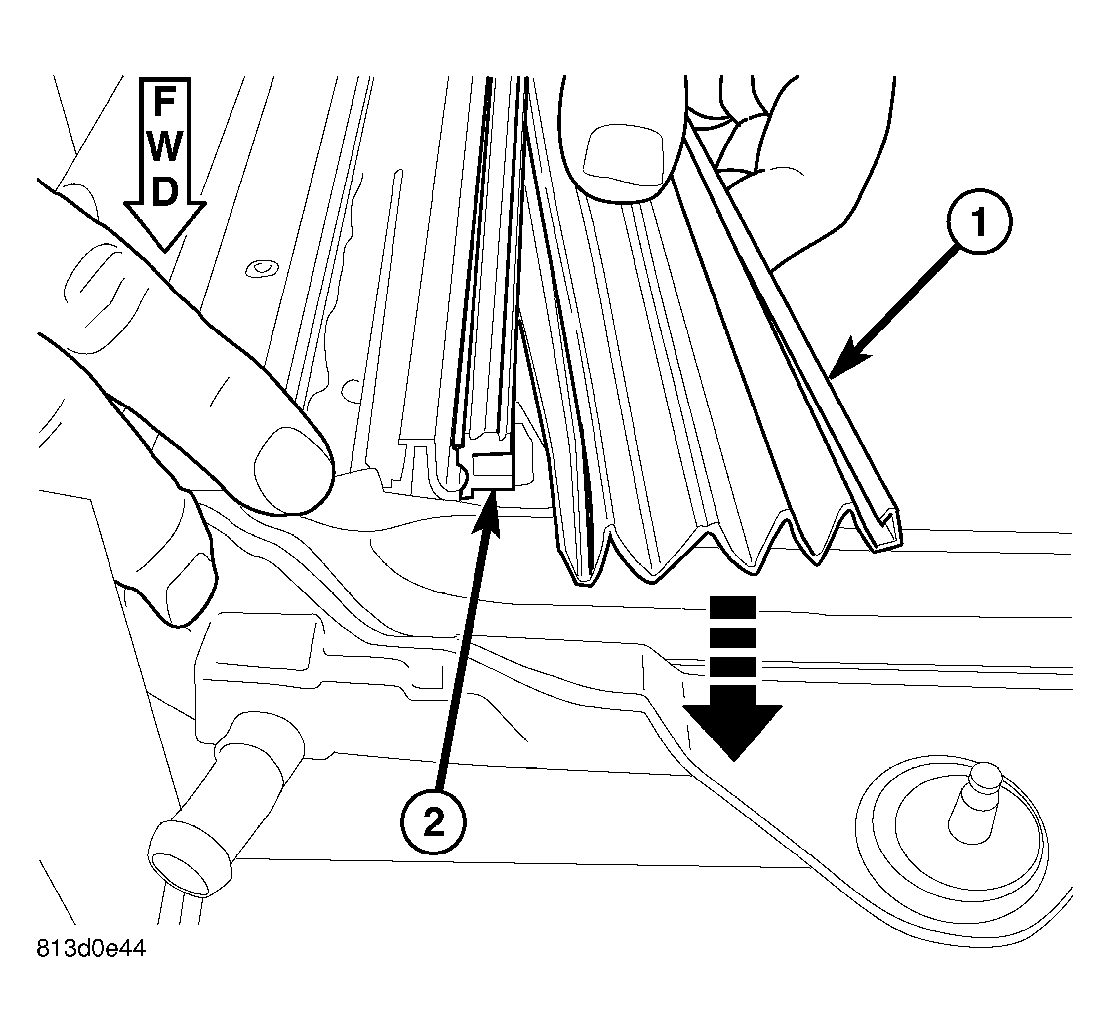

    Fig 2: Removal
    GC0013611Courtesy of DAIMLERCHRYSLER CORP.
  4. Hold both mechanism covers down and open the sunroof fully.
  5. Slide the mechanism covers (1) out the front of the guide in the frame (2).
