Sunroof - Service Information: Assembly-Module: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

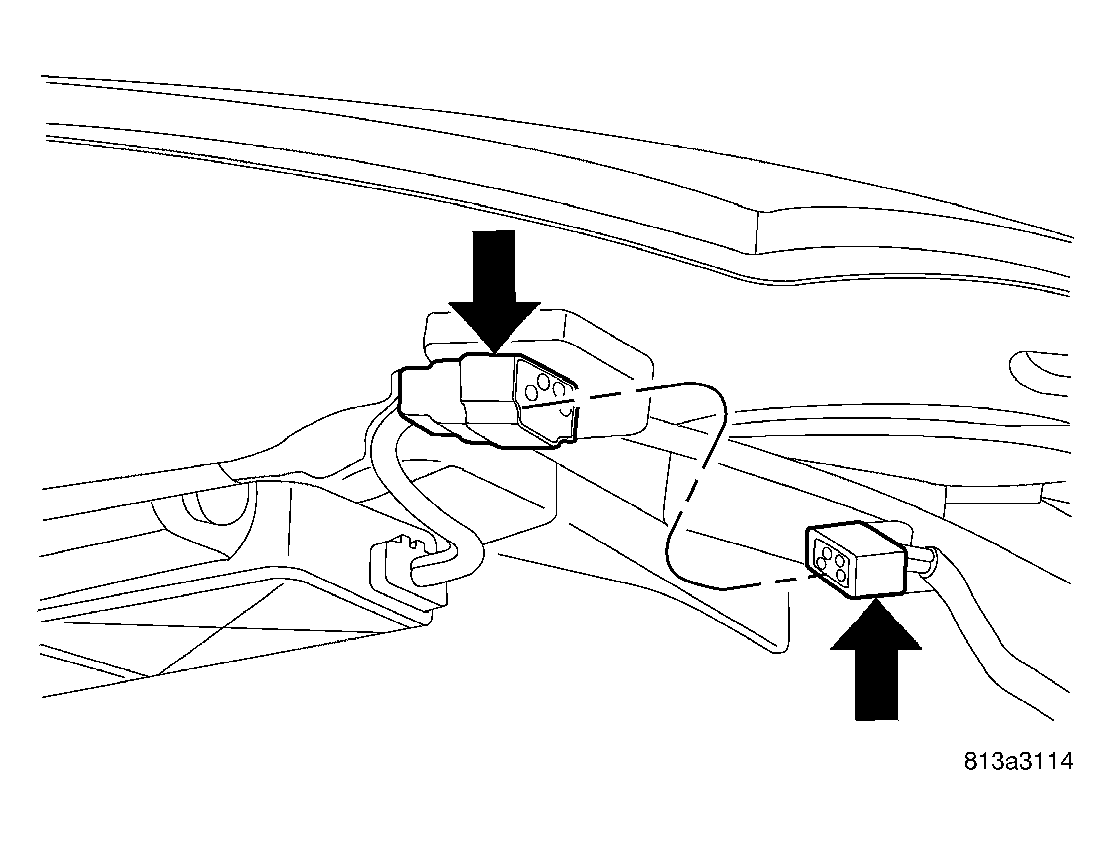

Fig 1: Electrical Connector
GC0013601Courtesy of DAIMLERCHRYSLER CORP.
WARNING: The excessive force limitation (EFL) feature must be calibrated any time a sunroof motor/module is replaced with a new component. Failure to perform this procedure could result in vehicle damage and/or personal injury. Refer to EXCESSIVE FORCE LIMITATION (EFL) CALIBRATION for the appropriate procedure.
  1. Move glass panel to the fully closed position.
  2. Disconnect and isolate the battery negative cable.
  3. Remove headliner (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
  4. Disconnect the sunroof wire harness electrical connector.

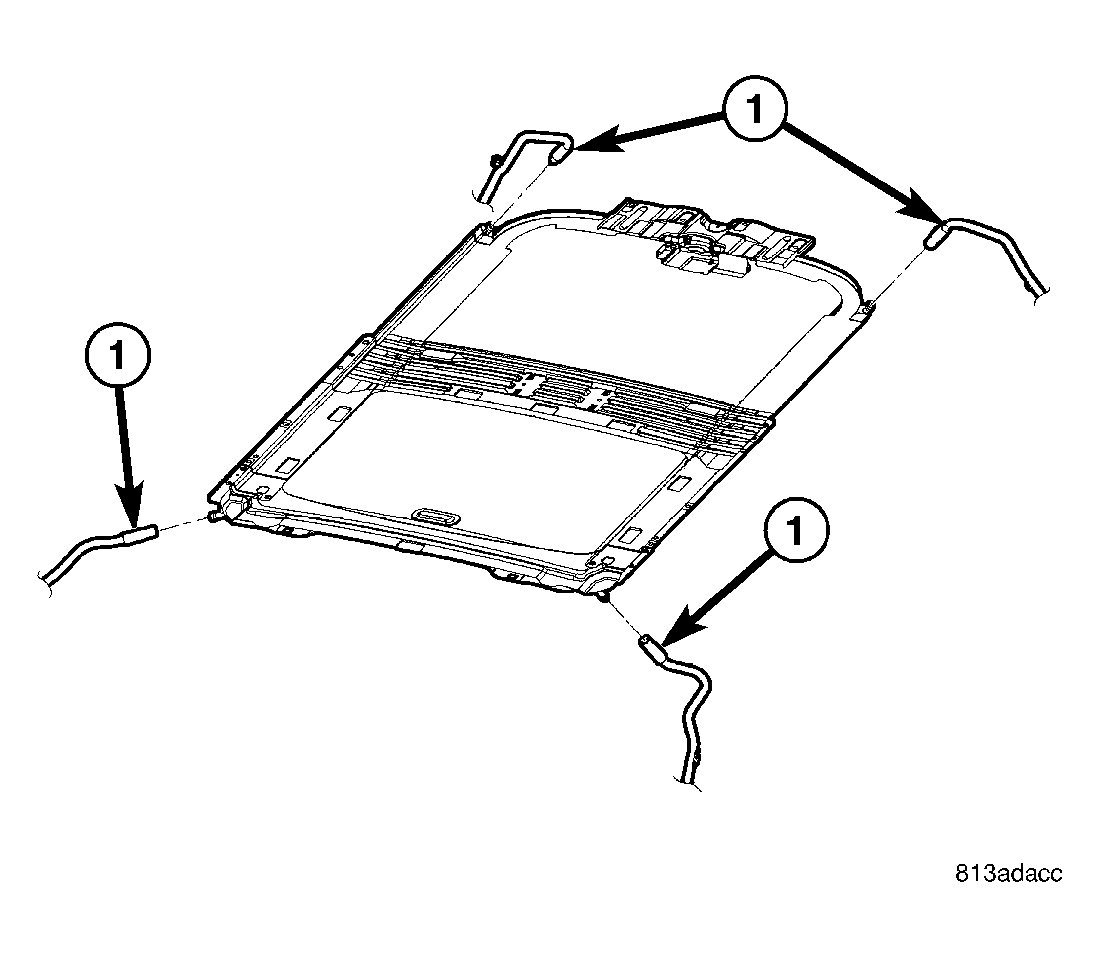

    Fig 2: Connecting Drain Tubes
    GC0013603Courtesy of DAIMLERCHRYSLER CORP.
  5. Disconnect the four drain tubes (1) from sunroof housing.

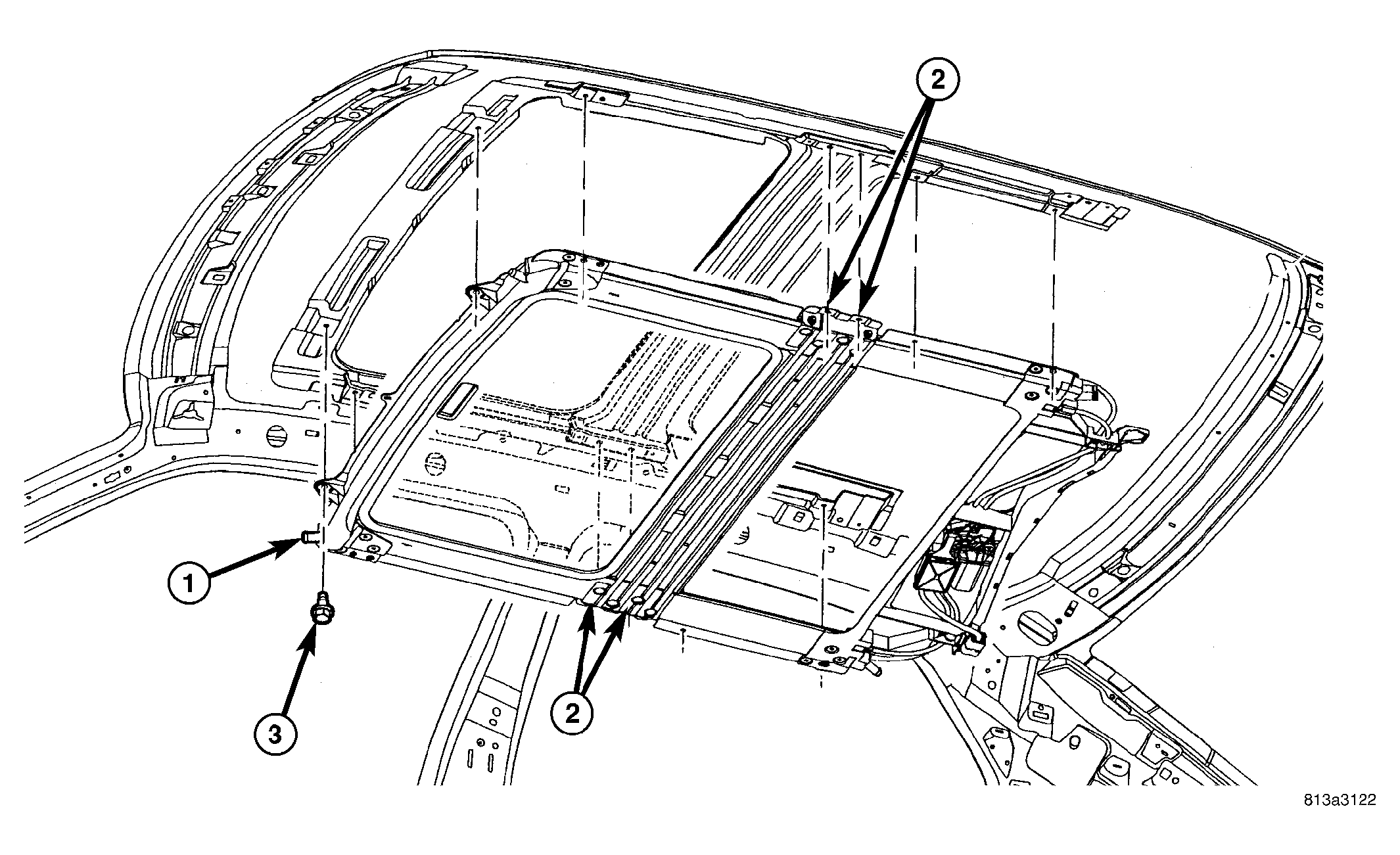

    Fig 3: R and I
    GC0013602Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the eight fasteners (3) attaching sunroof assembly.
  7. With the aid of a helper, support the sunroof and remove the fasteners (2) attaching sunroof assembly (1) to roof panel.
  8. Remove the sunroof (1) from vehicle.
