Striker-Seat Back Latch - Second Row: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

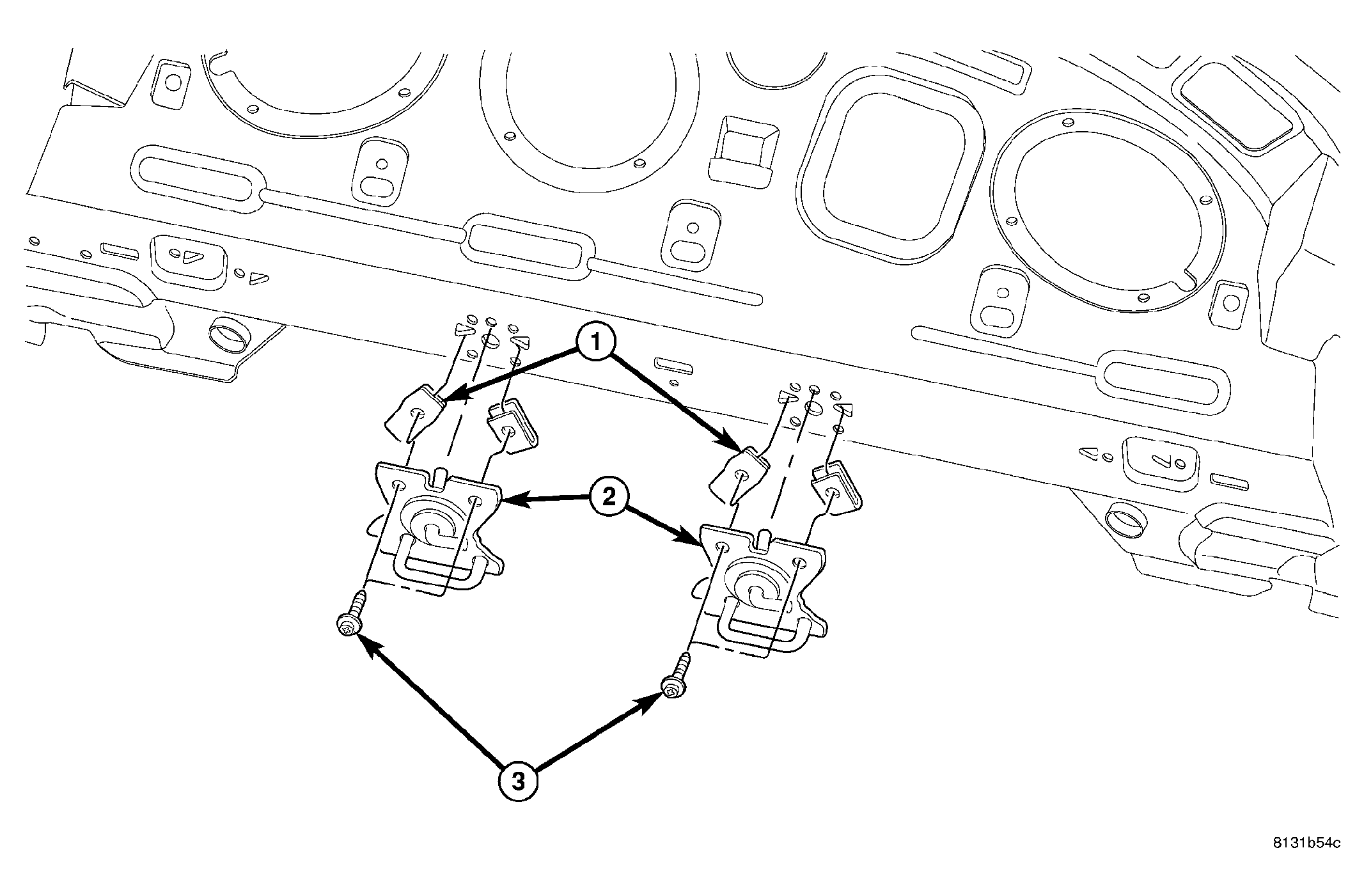

Fig 1: Rear Seat Back Striker 60/40 Seats

Courtesy of DAIMLERCHRYSLER CORP.

Spring nut(s) (1) replace, if necessary.
Place the sedan back seat striker (2) into position and Install attaching screws (3).

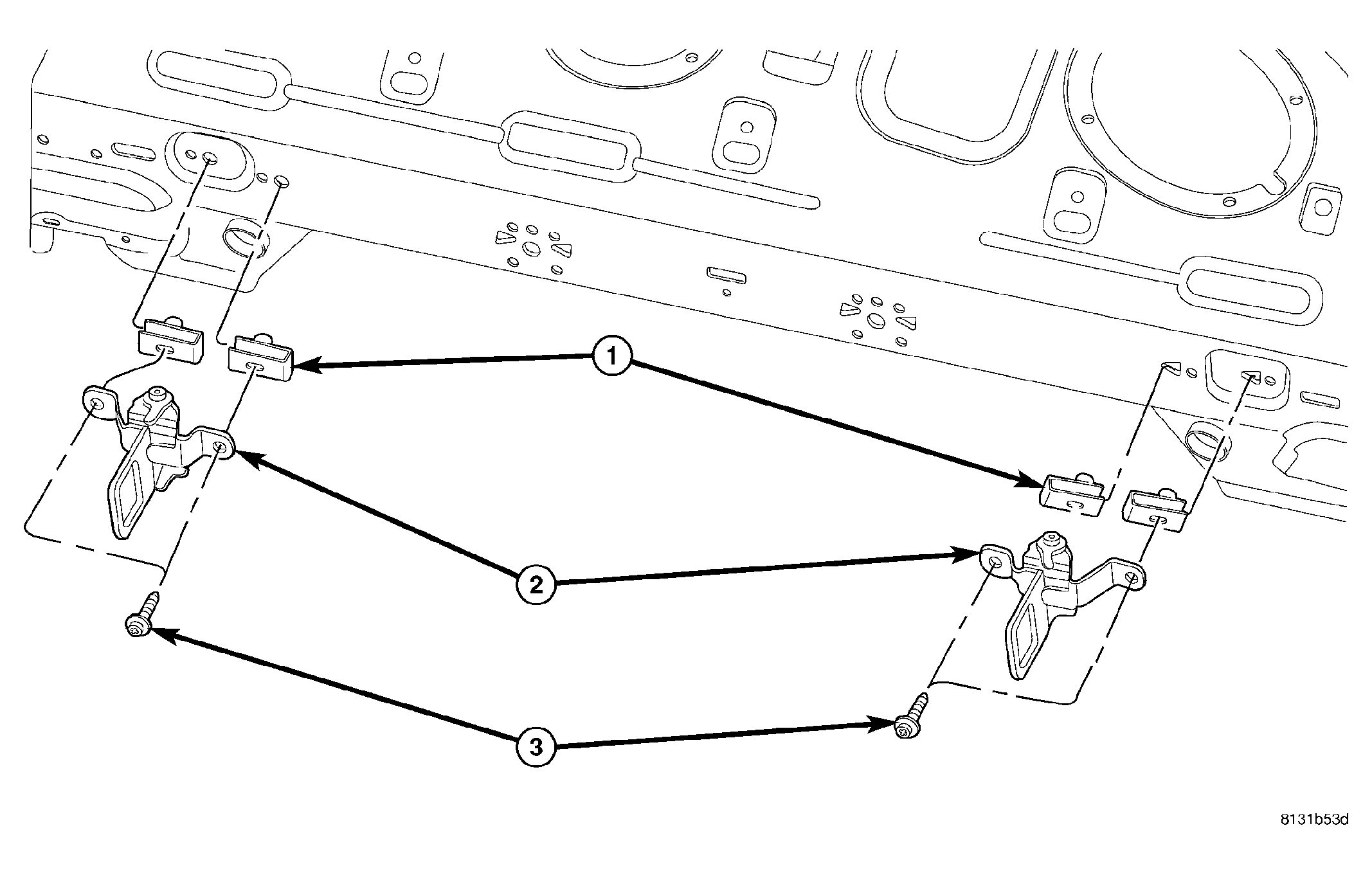

Fig 2: Rear Seat Back Striker 60/40 49
Courtesy of DAIMLERCHRYSLER CORP.
Place the wagon back seat striker (2) into position and Install attaching screws (1).

Fig 3: Rear Seat Back Striker 60/40 Seats - Export
Courtesy of DAIMLERCHRYSLER CORP.
Spring nut(s) (1) replace, if necessary.
Place the (Export) sedan back seat striker (2) into position and Install attaching screws (3).
