Section 23 (Body - Interior & Exterior): Seats: Seat-Front: Removal: Notes

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

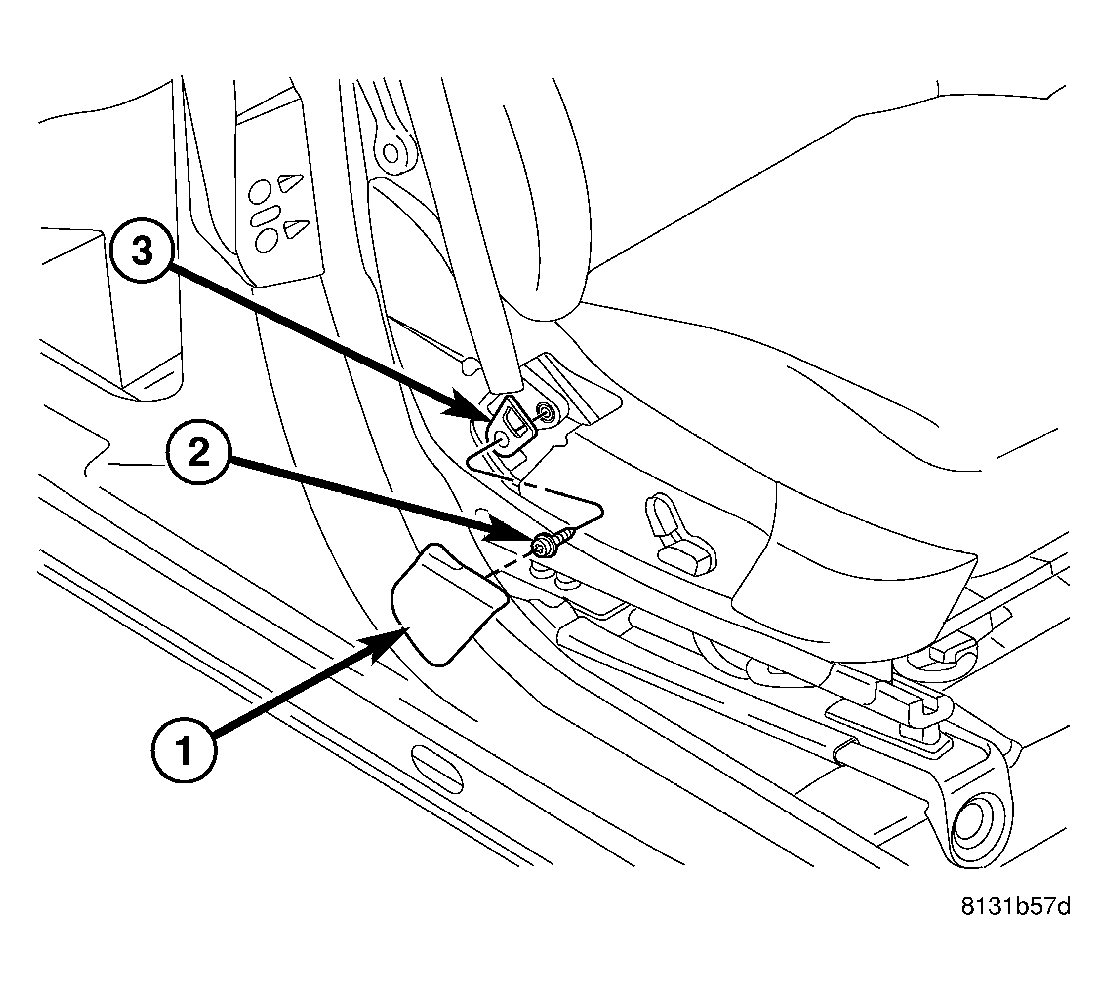

Fig 1: Front Seat Belt to Outboard
GC0013583Courtesy of DAIMLERCHRYSLER CORP.
  1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to BODY/SEATS - WARNING) .
  2. Remove the cover (1) and lower seat belt anchor bolt (2).
