Front Seat - Right Side

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to BODY/SEATS - WARNING) .
    WARNING: The front passenger seat must be handled carefully as well. When removing the seat, be careful when setting on floor not to drop. If dropped, the sensor may be inoperative. Failure to follow these instructions may result in personal injury or death.
    WARNING: When the seat is on the floor, no one should sit in the front passenger seat. This uneven force may damage the sensing ability of the seat weight sensors. If sat on and damaged, the sensor may be inoperative. Failure to follow these instructions may result in personal injury or death.
    Fig 1: Removing/Installing Front Passenger Seat
    GC0013585Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove the right side front seat with OCS sensor two front attaching bolts (1).

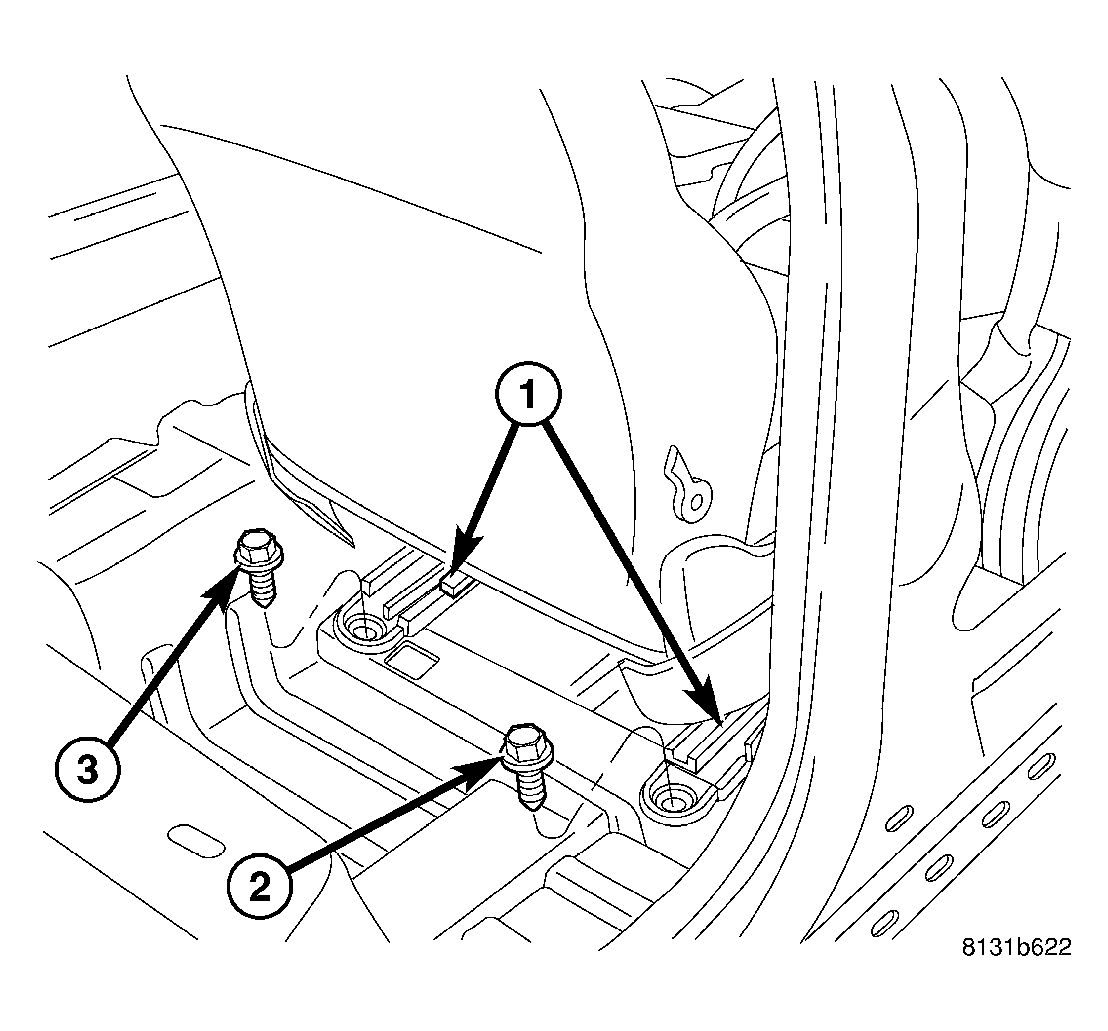

    Fig 2: Front Seat Right Side With OCS Sensor Rear Bolts
    GC0013587Courtesy of DAIMLERCHRYSLER CORP.
  3. Move the seat forward to gain access to the rear bolts.
  4. Remove the right side front seat with OCS sensor two rear attaching bolts (2) and (3).
  5. Ensure that the ignition key is in the off position.
  6. Disconnect and isolate battery negative cable.
  7. Disconnect the electrical connectors.
  8. Remove the seat.
