Front Seat - Left Side

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

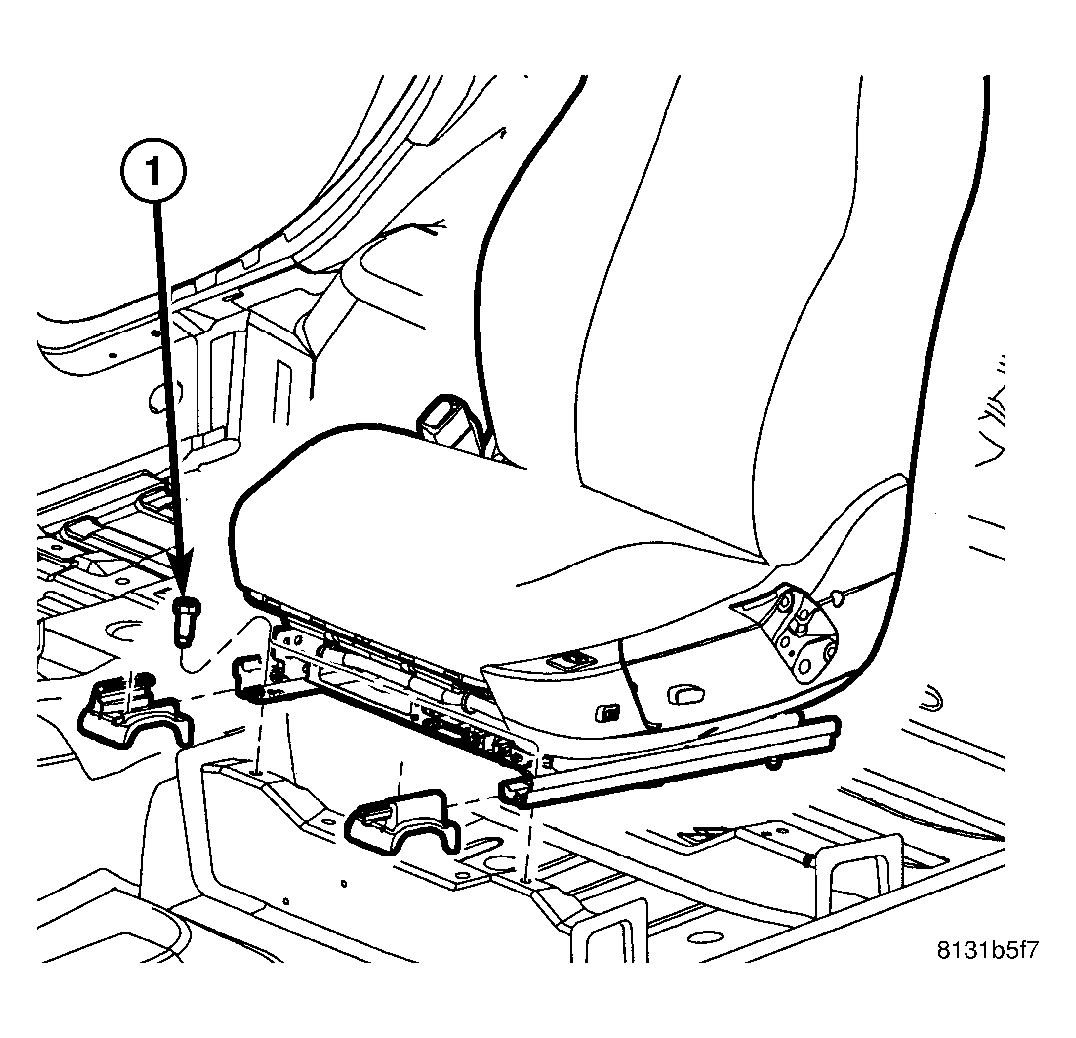

Fig 1: Front Seat Left Side Front Bolts
GC0013584Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the left side front seat two front attaching bolts (1).

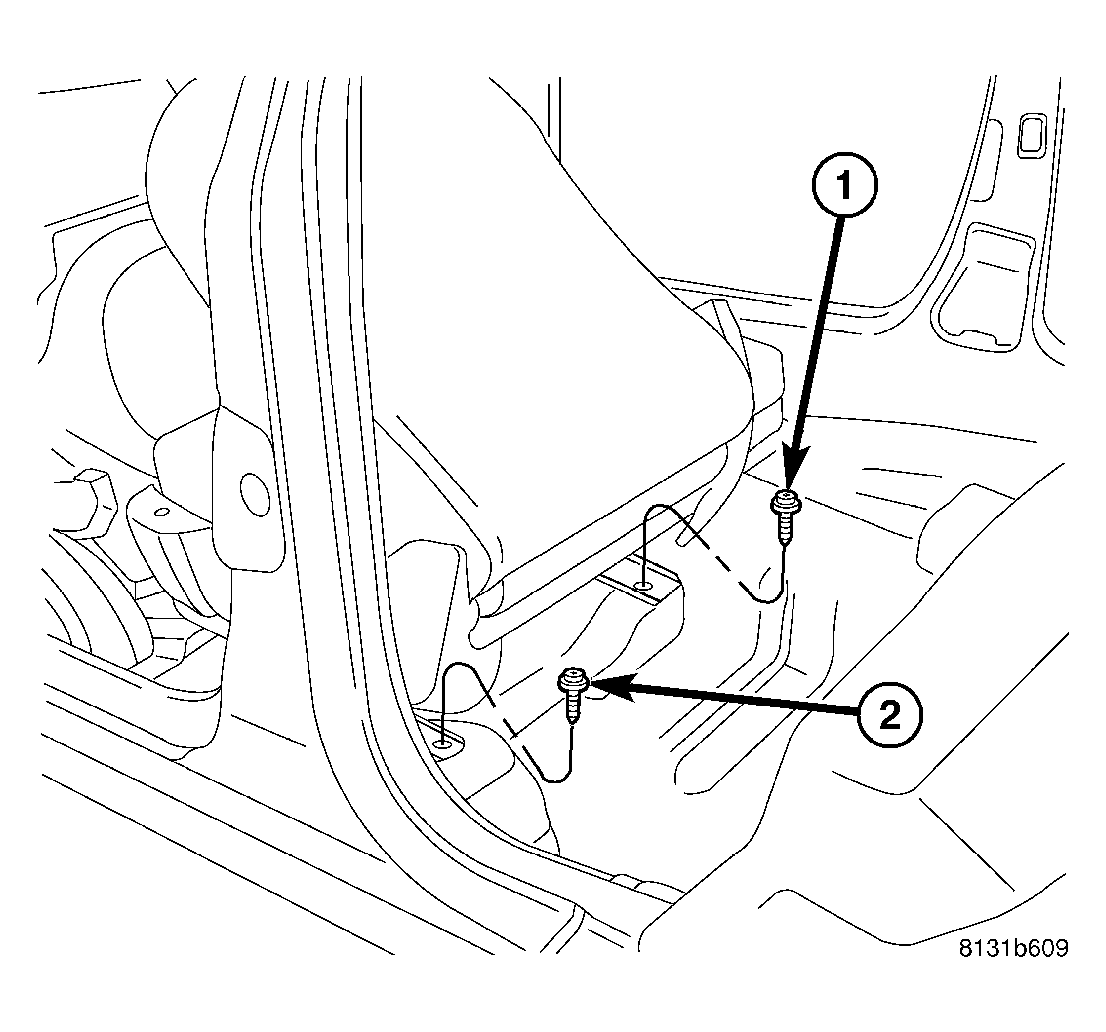

    Fig 2: Front Seat Left Side Rear Bolts
    GC0013586Courtesy of DAIMLERCHRYSLER CORP.
  2. Move the seat forward to gain access to the rear bolts.
  3. Remove the left side front seat two rear attaching bolts (1) and (2).
  4. Disconnect and isolate battery negative cable.
  5. Disconnect the electrical connectors.
  6. Remove the seat.
