40% SEAT BACK SIDE

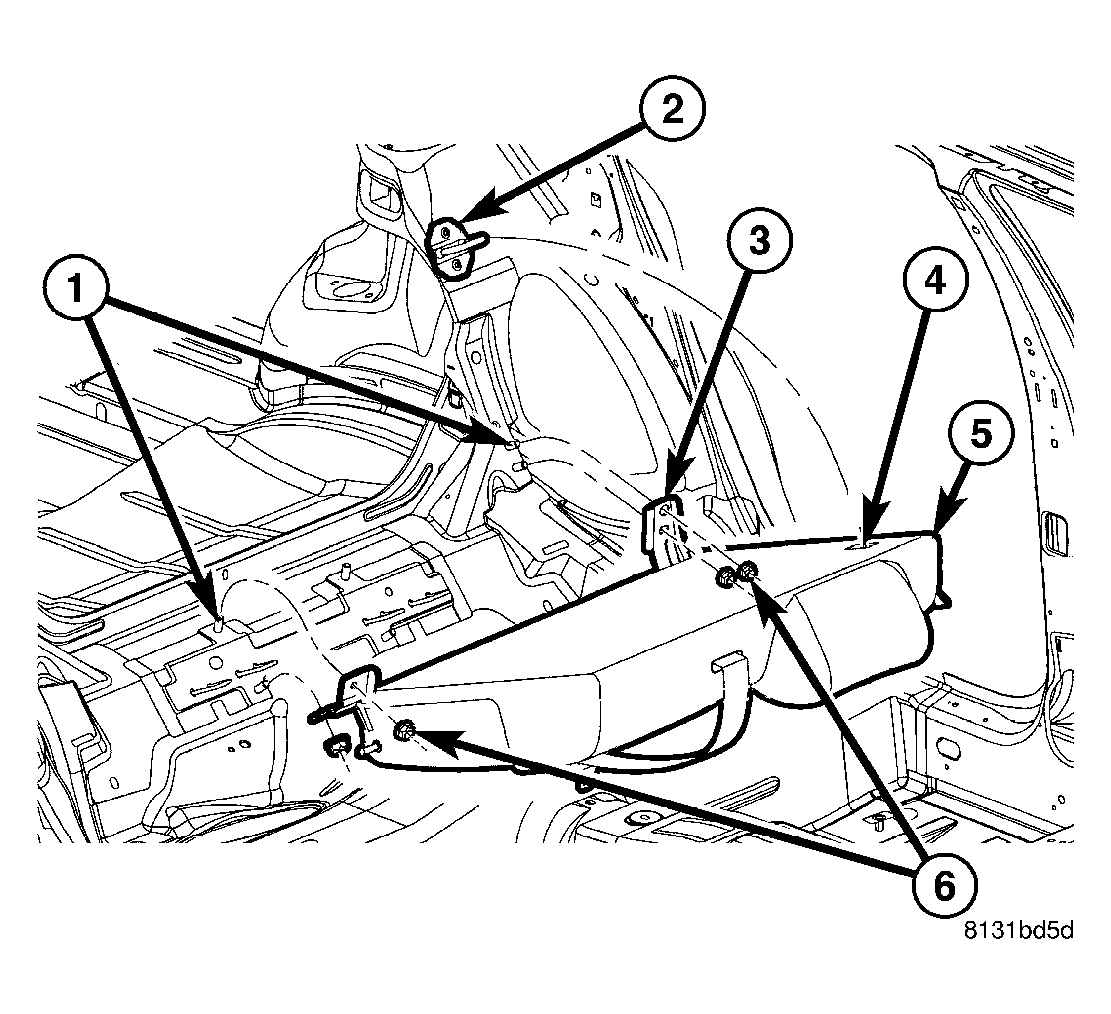

Fig 1: Rear Seat Back 40% 49

Courtesy of DAIMLERCHRYSLER CORP.

Fold the 40% section of the seat (2) down.
Remove the nuts (5).
Pivot the seat back off the pivot pin (3) located on the 60% seat back.
Remove the seat back from vehicle.

60% SEAT BACK SIDE

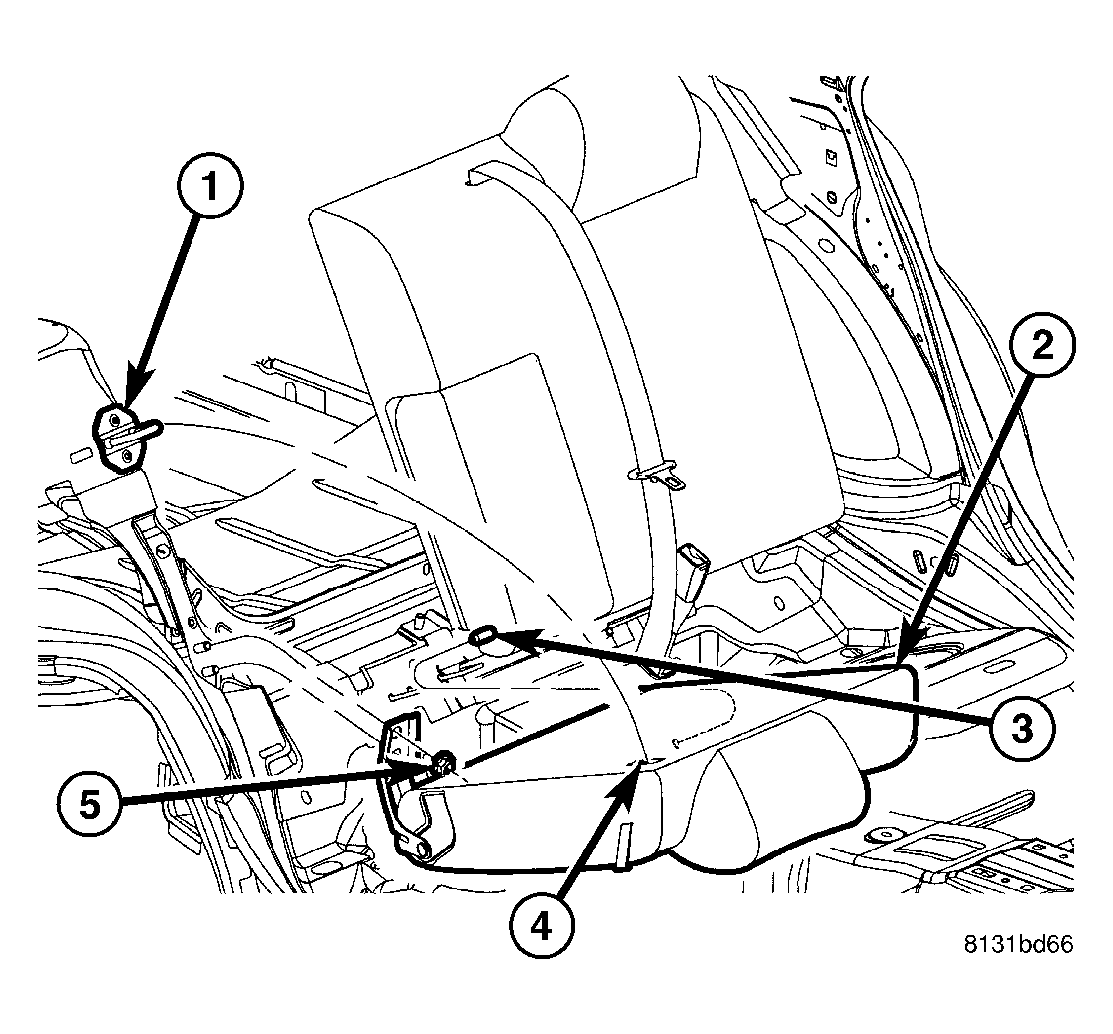

Fig 2: Rear Seat Back 60% 49

Courtesy of DAIMLERCHRYSLER CORP.

With the 40% seat back removed.
Fold the 60% section of the seat down.
Remove the four nuts attaching seat back (5).
Remove the seat back for vehicle.
