60/40 Seat Back - Domestic Sedan

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

40% SEAT BACK SIDE

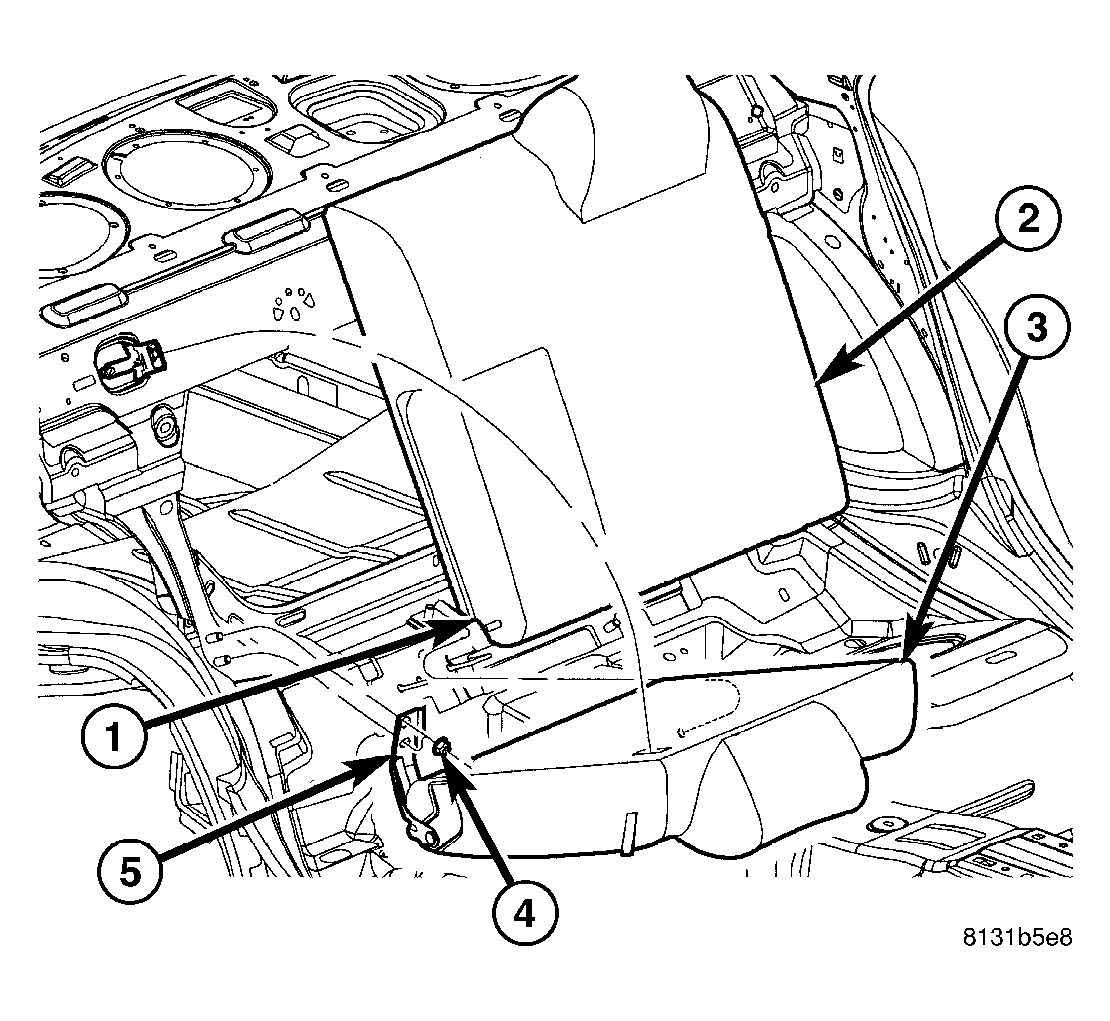

Fig 1: Rear Seat Back 40%

Courtesy of DAIMLERCHRYSLER CORP.

Fold the 40% section of the seat (3) down.
Remove the two nuts (4) attaching seat back.
Pivot the seat back off the pivot pin (1) located on the 60% seat back (2).
Remove the seat back from vehicle.

60% SEAT BACK SIDE

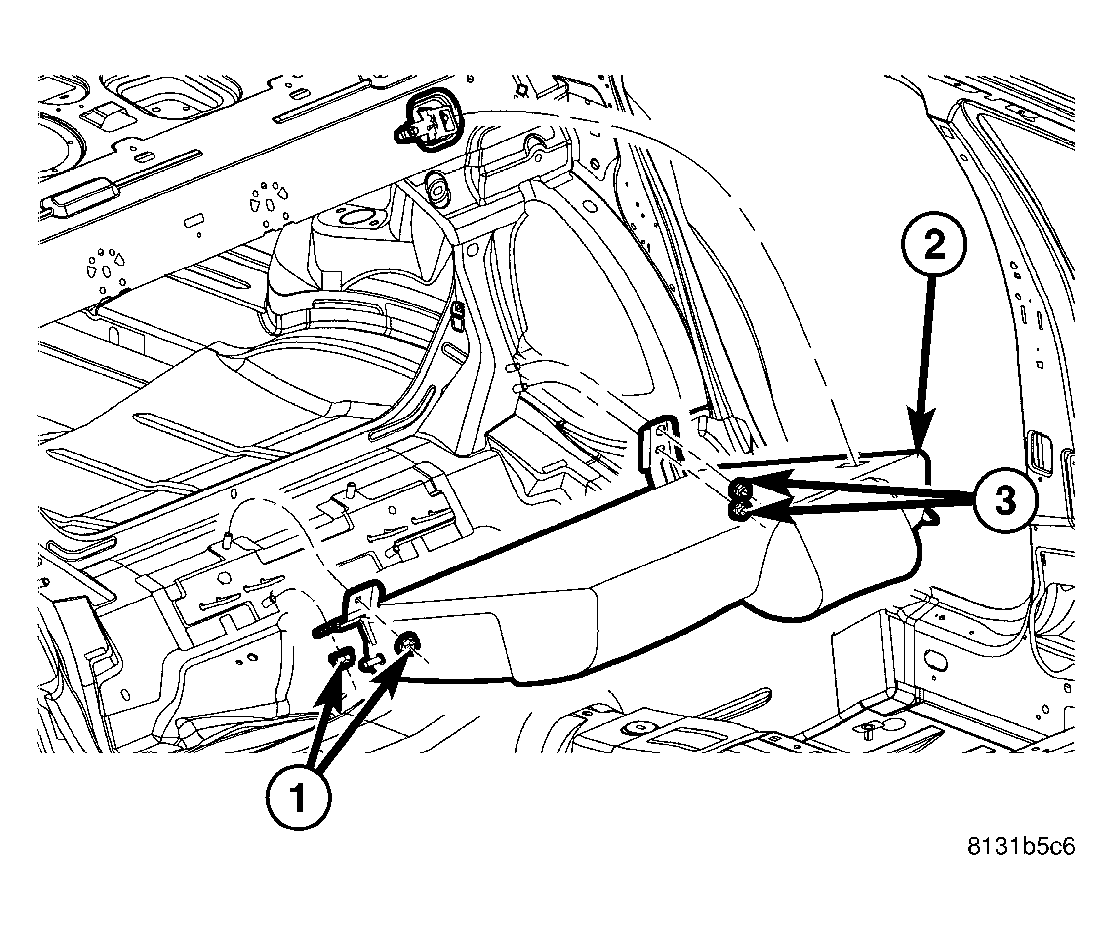

Fig 2: Rear Seat Back 60%

Courtesy of DAIMLERCHRYSLER CORP.

With the 40% seat back removed.
Fold the 60% section of the seat down.
Remove the four nuts attaching seat back (4).
Remove the seat back for vehicle.
