Cushion/Cover-Cushion - Second Row: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

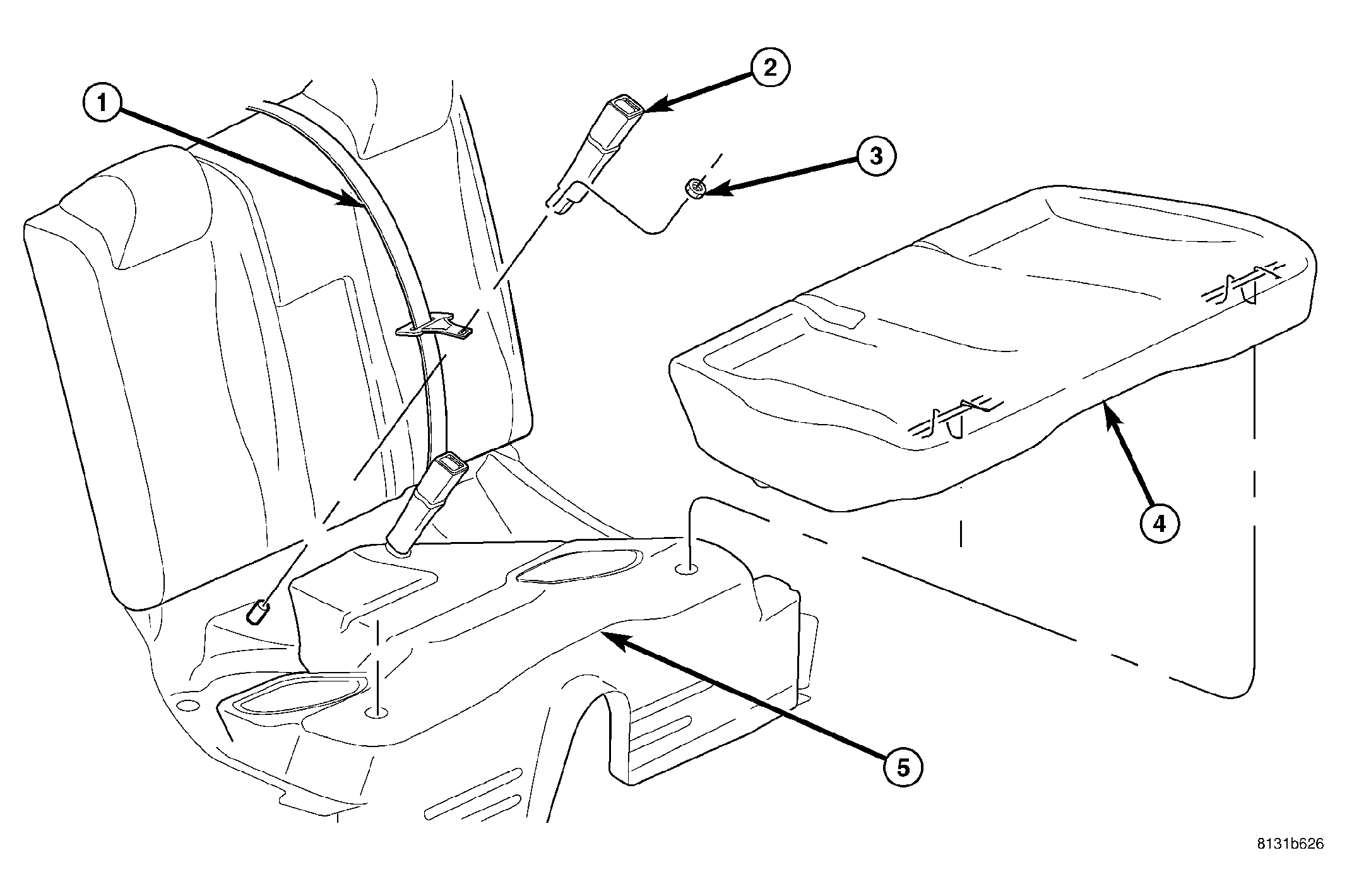

Fig 1: Rear Seat Cushion & Rear Seat Belt Rib Buckle

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Rear Seat Cushion

Courtesy of DAIMLERCHRYSLER CORP.

Pull upward at forward edge of cushion each retainer loop of the rear seat cushion to disengage retainer loops from cups in floor.
Remove rear seat cushion (4) from vehicle.

Fig 3: Connect J-Straps
Courtesy of DAIMLERCHRYSLER CORP.
Disengage the J-straps attaching seat cover to the cushion.

Fig 4: Move Seat Cover to Access Hog Rings
Courtesy of DAIMLERCHRYSLER CORP.
Fold rear of the seat cover forward to uncover hog rings.

Fig 5: Rear Seat Cushion Hog Rings (4)
Courtesy of DAIMLERCHRYSLER CORP.
Start on the rear side of the cushion and cut hog rings.

Fig 6: Rear Seat Cushion Hog Rings (3)
Courtesy of DAIMLERCHRYSLER CORP.
Cut the hog rings on the outer side of the cushion.

Fig 7: Rear Seat Cushion Hog Rings (2)
Courtesy of DAIMLERCHRYSLER CORP.
Work around the outer edges and cut the hog rings.

Fig 8: Rear Seat Cushion Hog Rings (1)
Courtesy of DAIMLERCHRYSLER CORP.
Fold cover up to access the inner hog rings and cut them.
Repeat operation on the other side of cushion.
Remove seat cushion cover from seat cushion.

Fig 9: Cushion Support
Courtesy of DAIMLERCHRYSLER CORP.
If replacing cushion, remove the cushion support by cutting the hog rings attaching it to the foam and remove.
