Section 23 (Body - Interior & Exterior): Seats: Armrest-Rear: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

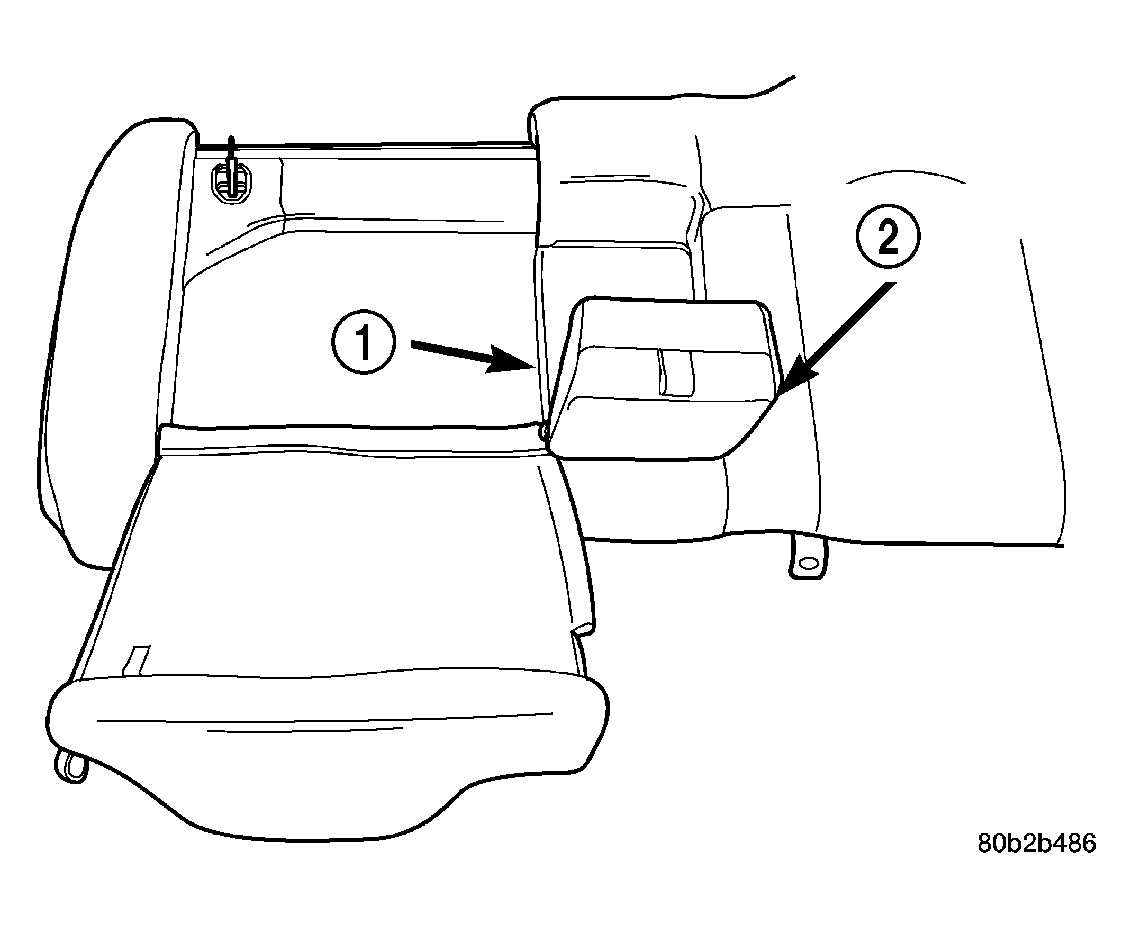

Fig 1: Rear Seat Arm Rest - 60/40

Courtesy of DAIMLERCHRYSLER CORP.

1 - BOLT

2 - RETAINING C-CLIP

Place arm rest in bracket.
Install arm rest bolt (1). Tighten to 12 N.m (9 ft. lbs.).
Install retaining C-clip (2).
Reposition the seats.
