Section 23 (Body - Interior & Exterior): Seats: Adjusters-Front: Removal: Manual

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

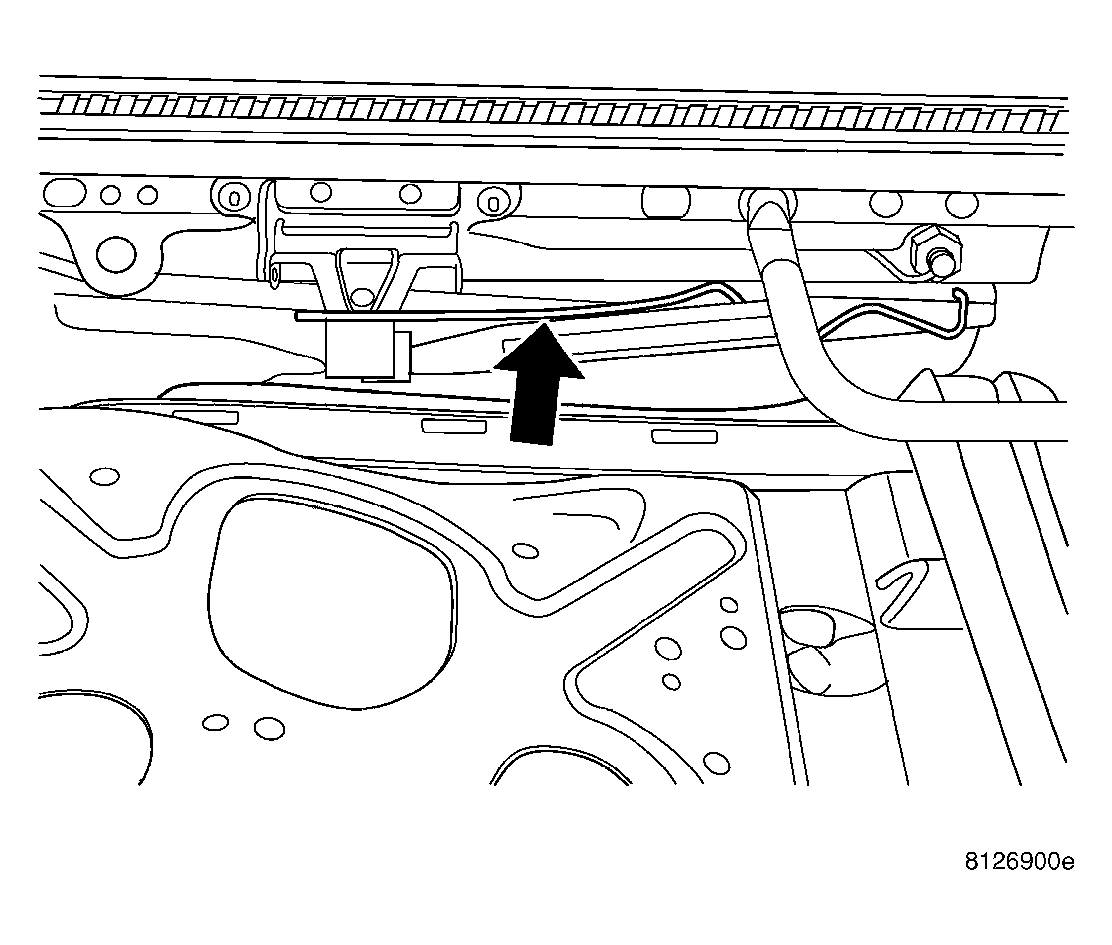

Fig 1: Towel Bar Spring
GC0013540Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the spring clip.
    Fig 2: Towel Bar
    GC0013541Courtesy of DAIMLERCHRYSLER CORP.
  2. Squeeze the towel bar together and pull the towel bar out of the left and right seat tracks.
    Fig 3: Manual Adjusters
    GC0013543Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the bolts (1 & 4), nuts (6) and spacers (2) and separate the side member assembly (3) from the length adjuster assembly (5).
