Rear Door: Hinge: Removal
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear door from the vehicle. (Refer to BODY/DOOR - REAR/DOOR - REMOVAL) .

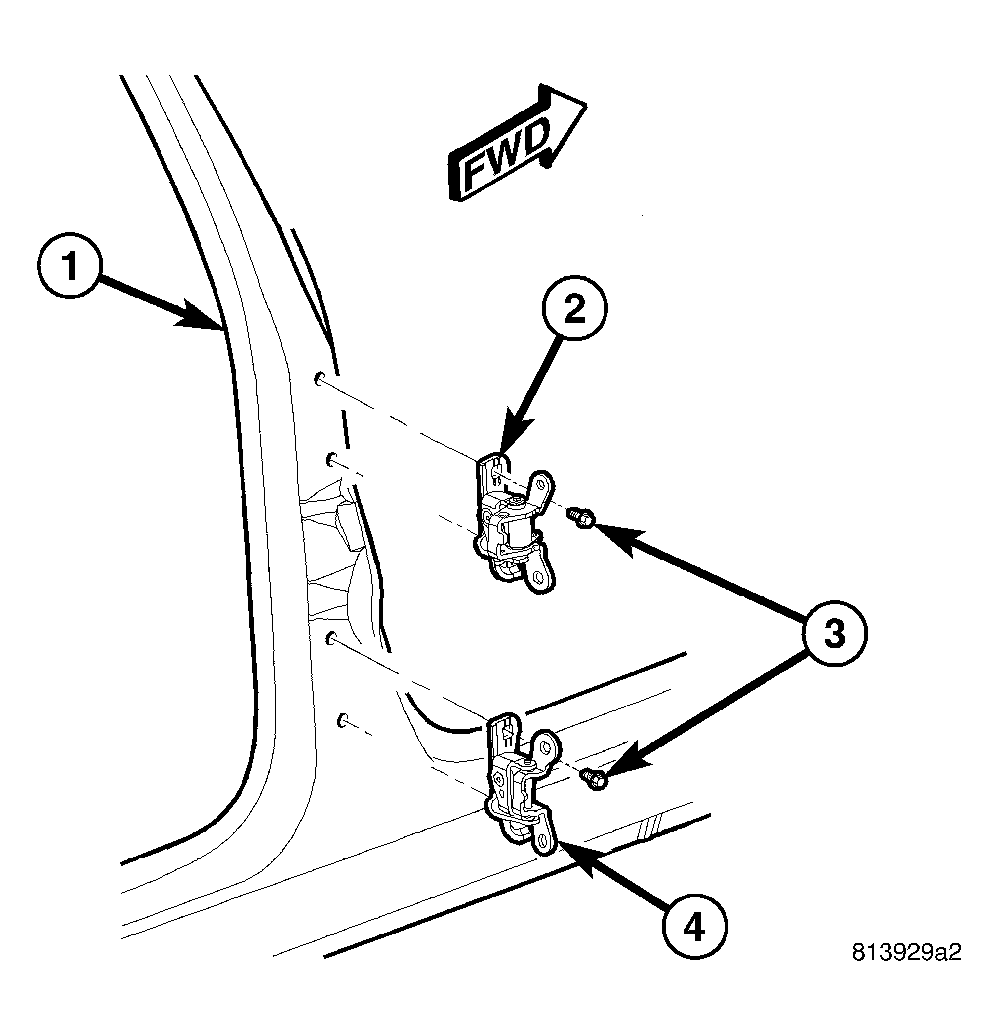

- Mark the upper (2) or lower (4) hinge bracket location on the outside of the lower B-pillar (1) to aid reinstallation.
- Remove the two screws (3) that secure the hinge bracket to the outside of the lower B-pillar.
- Remove the hinge bracket from the B-pillar.

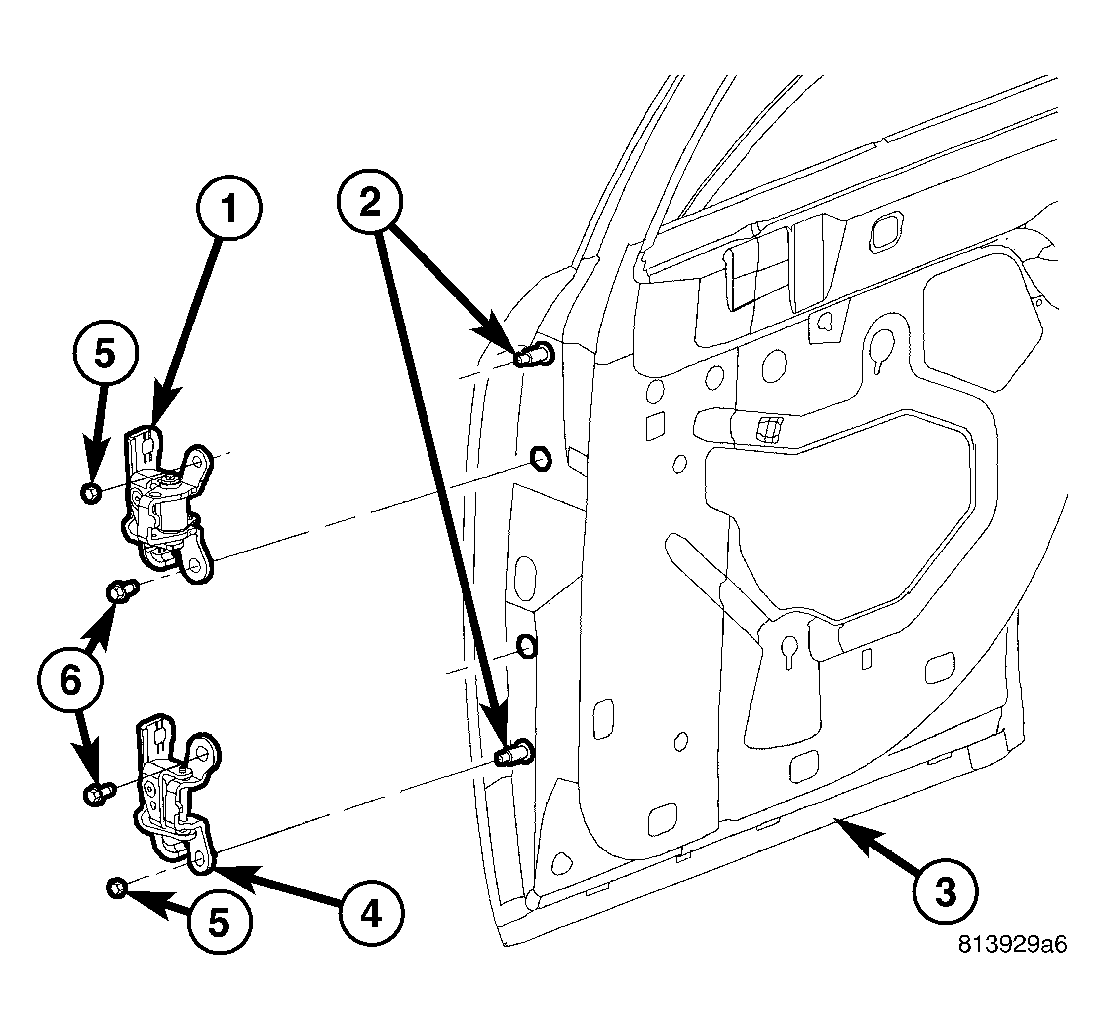

- Mark the upper (1) or lower (4) door hinge location on the hinge face of the rear door (3) to aid reinstallation.
- Remove the screw (6) that secures the hinge to the door.
- Remove the nut (5) that secures the hinge to the stud (2) on the door.
- Remove the upper or lower hinge from the hinge face of the door.
