Cable - Remote Lock Actuator: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

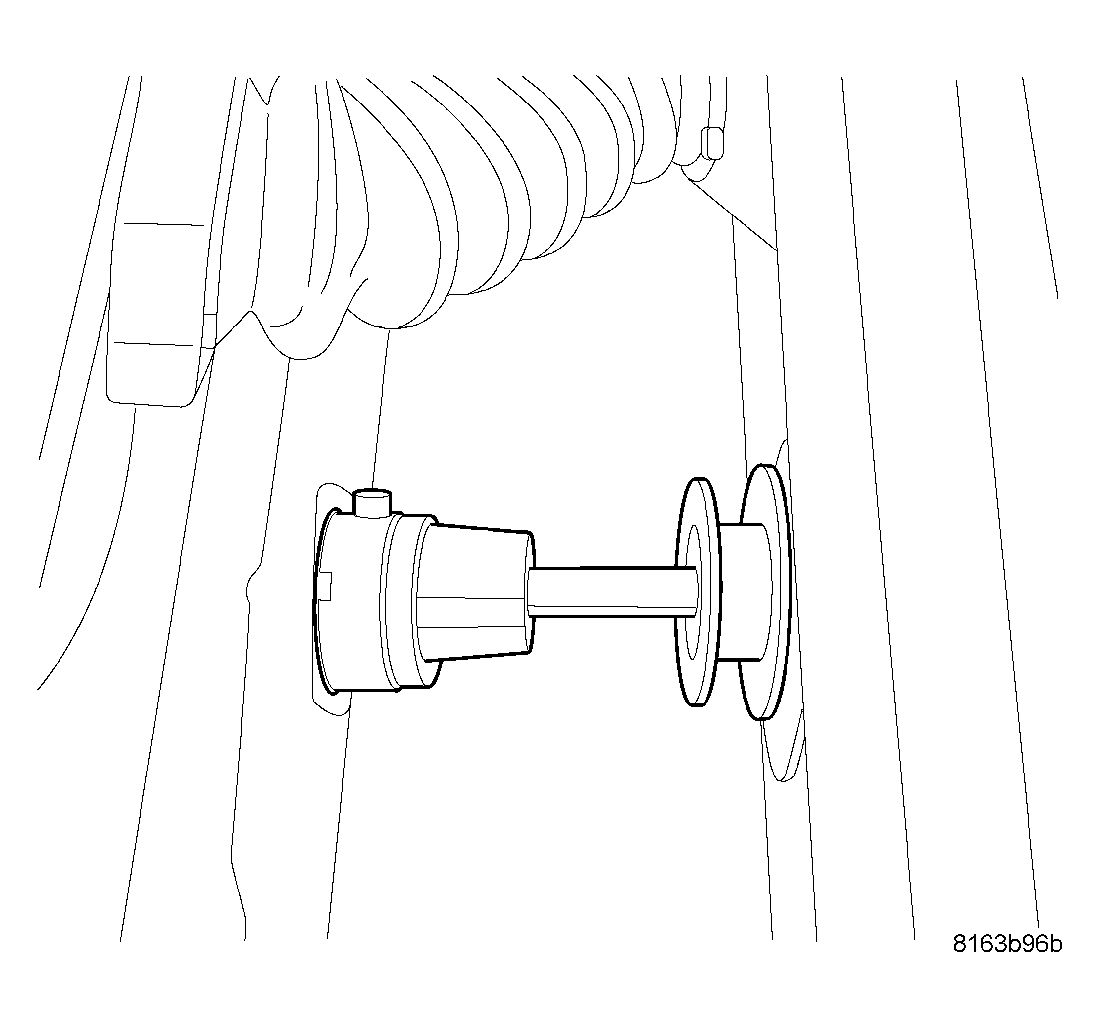

Fig 1: Remote Lock Actuator (Police 2)

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect battery.
Open the front door.
Remove the lock actuator knob lock nut.

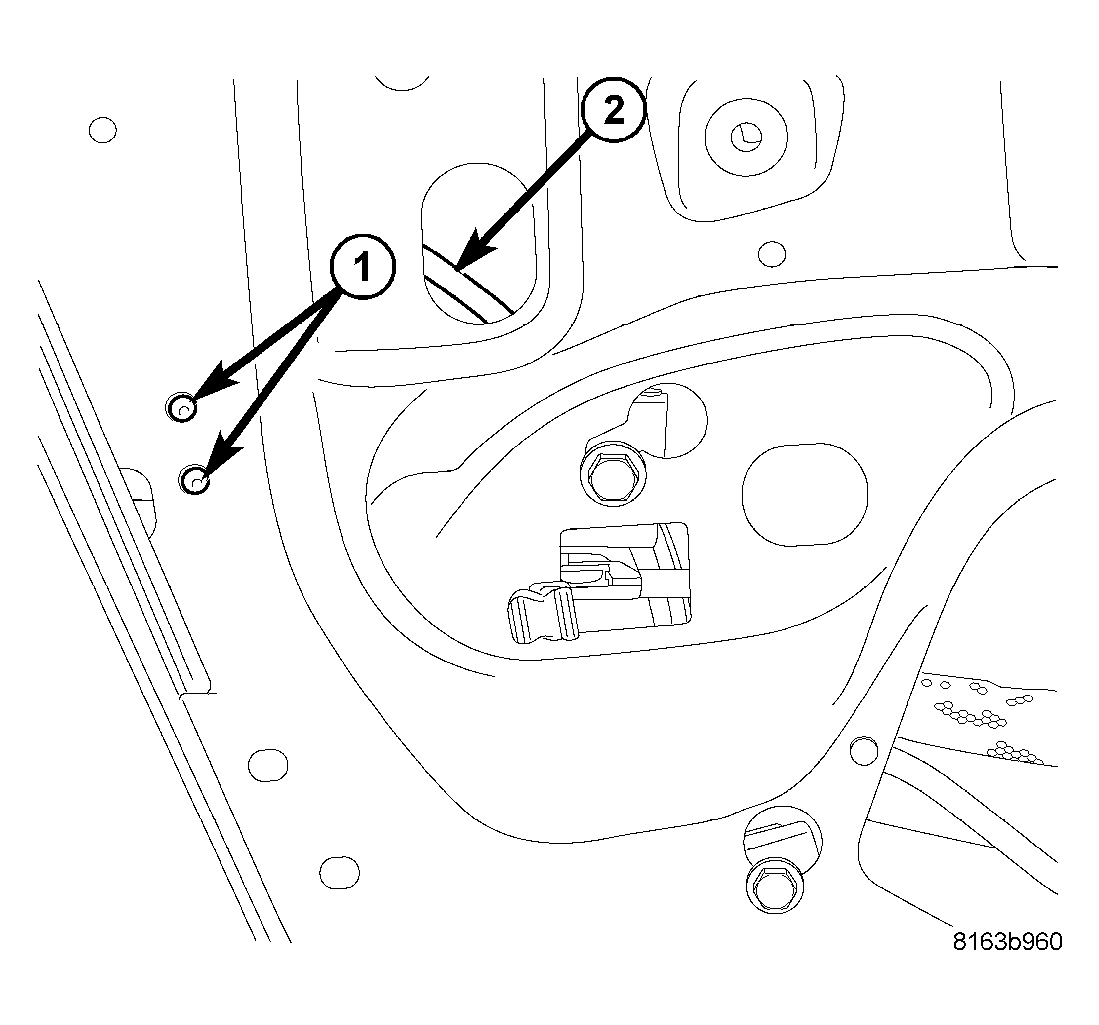

Fig 2: Remote Lock Actuator (Police)
Courtesy of DAIMLERCHRYSLER CORP.
Open rear door.
Remove the trim panel and watershield. (Refer to BODY/DOORS - REAR/TRIM PANEL - REMOVAL)

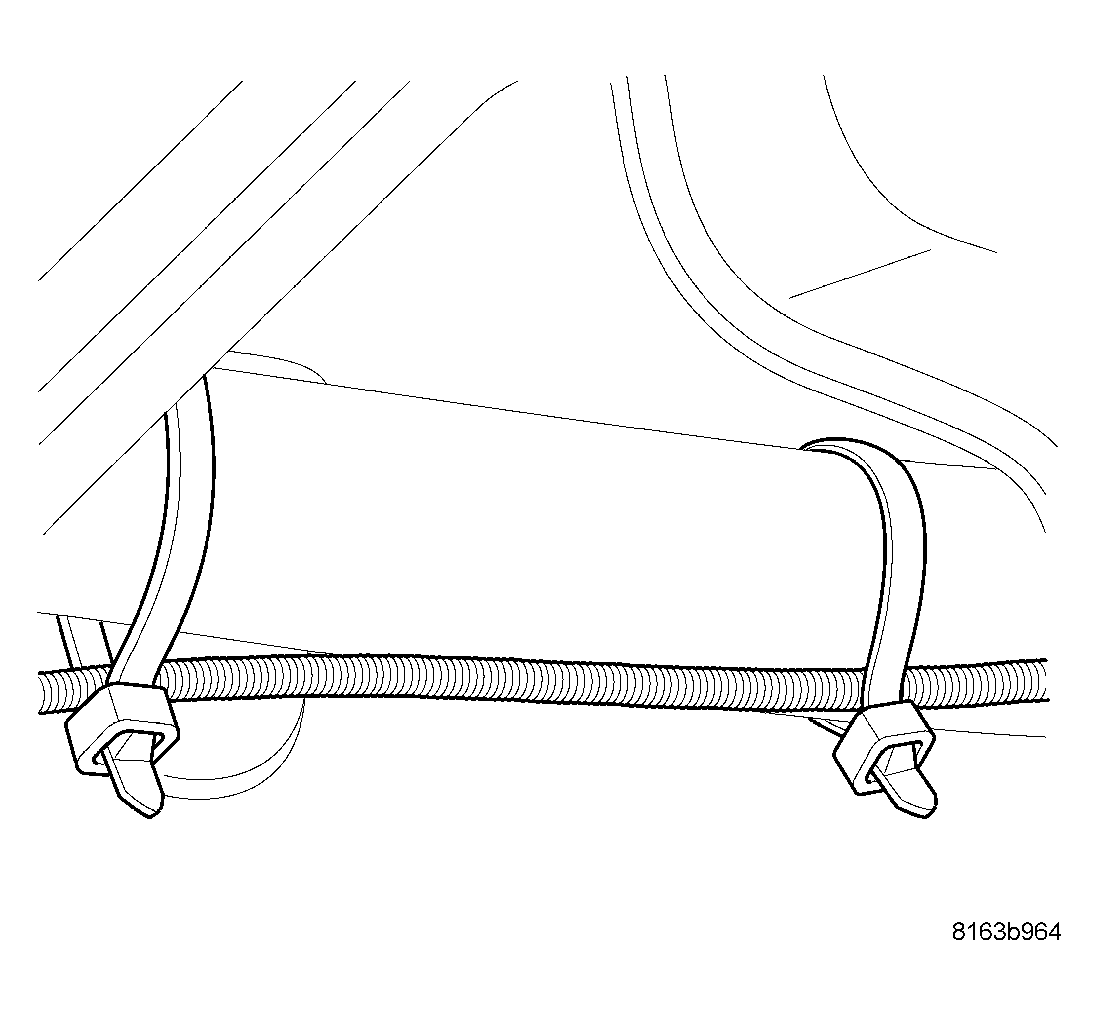

Fig 3: ZIP TIES
Courtesy of DAIMLERCHRYSLER CORP.
Cut zip ties connecting actuator cable to door reinforcement.
Drill out rivets (2).
Remove door lock actuator cable from door.
