Trunk Lining: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

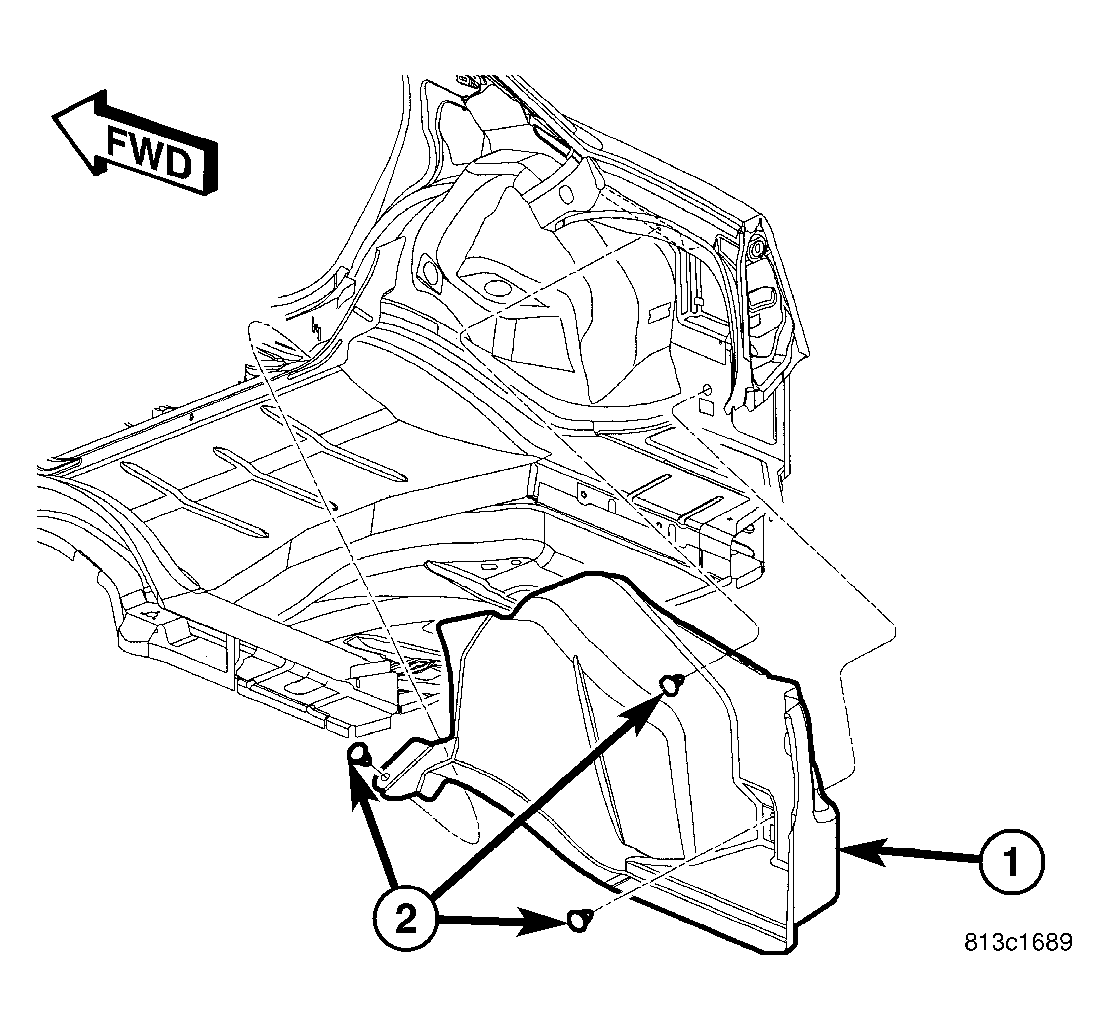

Fig 1: Trunk Lining
GC0013526Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the spare tire cover/trunk floor carpet from over the spare tire well. (Refer to BODY/INTERIOR/CARPETS AND FLOOR MATS - REMOVAL-TRUNK) .
  2. Remove the trunk rear trim panel from the luggage compartment. (Refer to BODY/INTERIOR/TRUNK REAR TRIM PANEL - REMOVAL) .
  3. Remove the three push-pin fasteners (2) that secure the right or the left trunk side trim (1) to the appropriate locations within the luggage compartment.
  4. Remove the trunk side trim from the luggage compartment.
