Rear Door Sill Scuff Plate: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

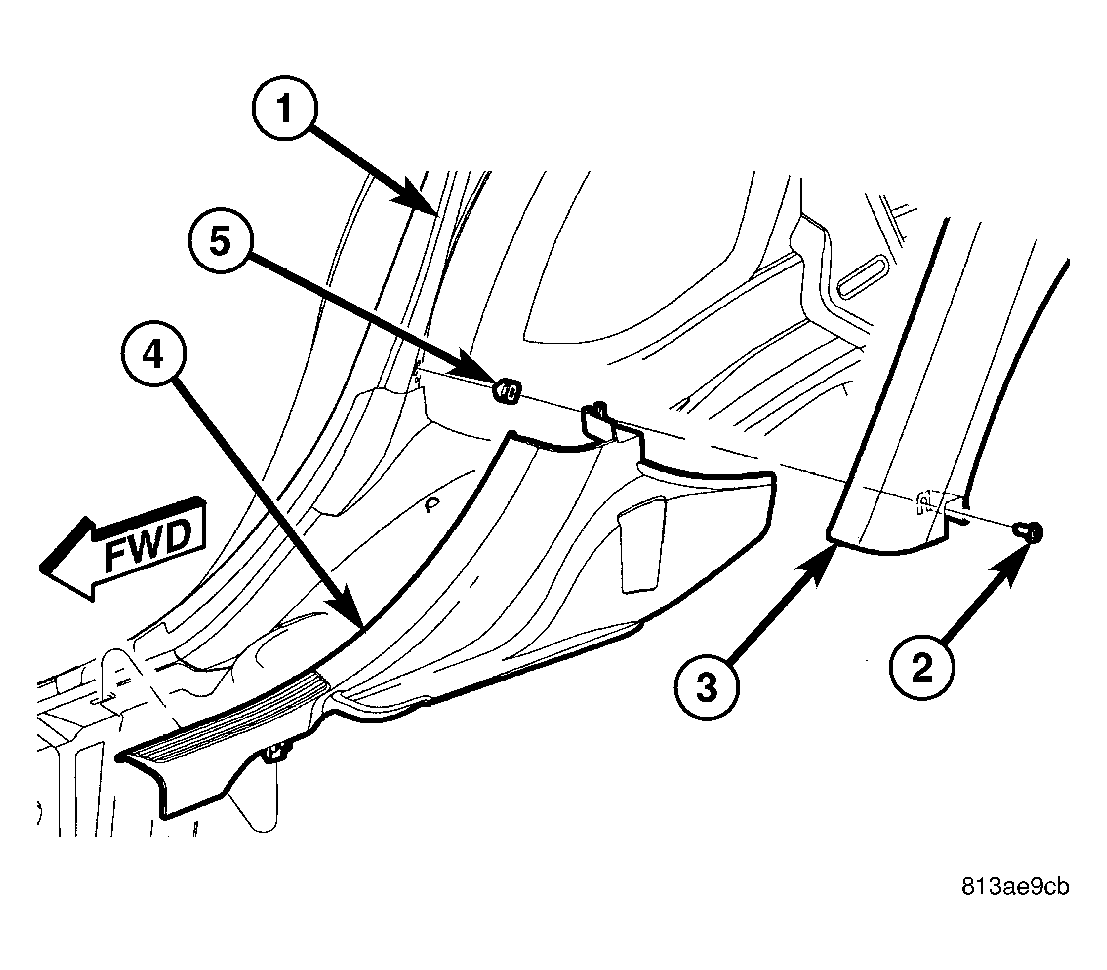

Fig 1: Rear Door Sill Scuff Plate
GC0013522Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the screw (2) that secures the rear door scuff plate (4) to the quarter inner panel.
  2. Remove the screw that secures the outboard rear seat belt lower anchor to the quarter inner panel.
  3. Using a trim stick or another suitable wide flat-bladed tool, carefully pry the scuff plate upwards from the sill far enough to disengage the two spring clip retainers that secure the scuff plate to the slots in the sill.
  4. Disengage the rear extension of the scuff plate from under the lower C-pillar trim (Sedan) or quarter trim panel (Wagon) (3).
  5. Remove the rear door scuff plate from the vehicle.
