Quarter Trim Speaker Bezel: Removal
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

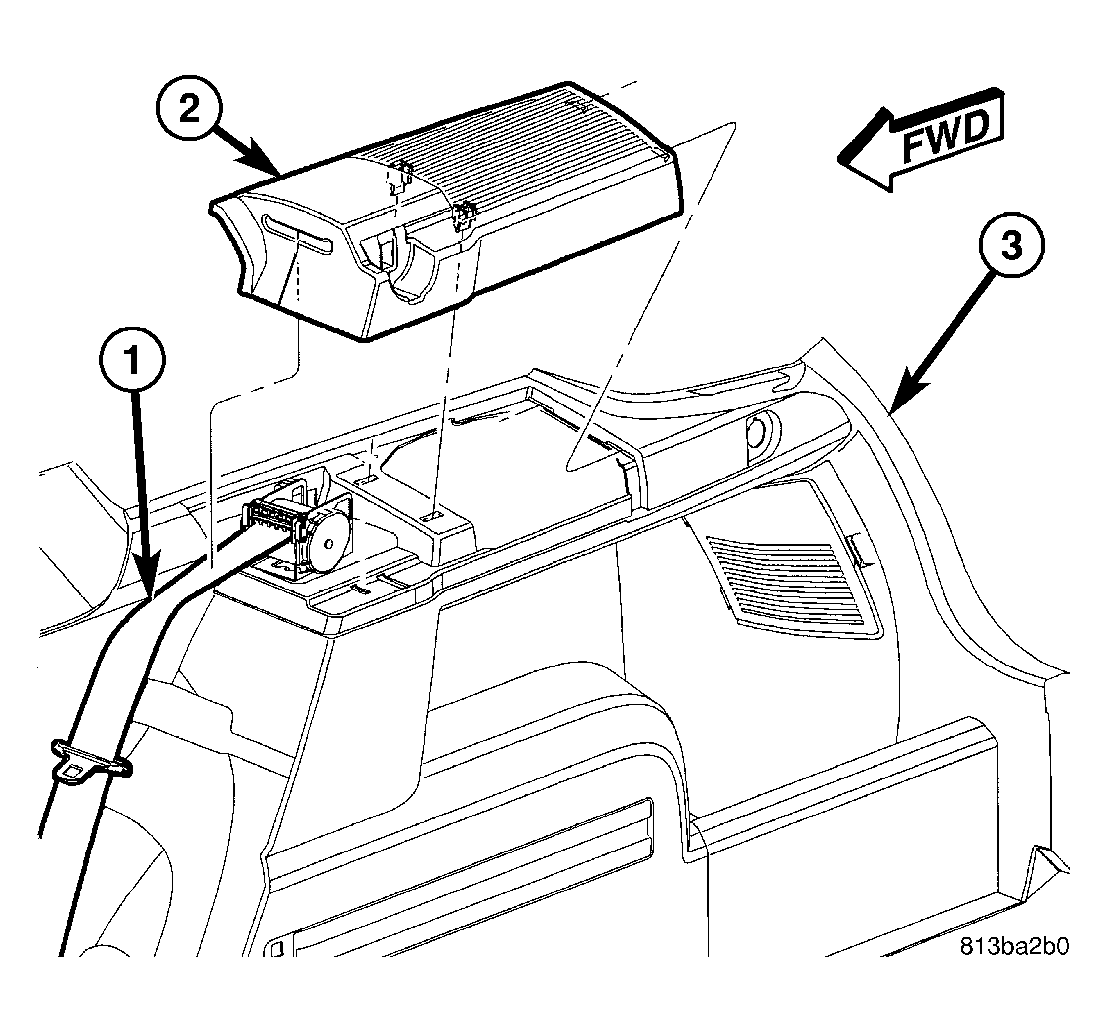

- Remove the screw in the cargo cover cradle formation of the quarter trim speaker bezel (2) that secures the bezel to the quarter trim panel (3) on top of the rear wheel house.
- Using a trim stick or another suitable wide flat-bladed tool, carefully pry the front edge of the speaker bezel upward from the quarter trim panel far enough to disengage the two spring clip retainers that secure the bezel to the slots in the trim panel.
- Disengage the rear outboard seat belt webbing (1) from the quarter trim speaker bezel through the slit below the slot at the front of the bezel.
- Lift the front of the quarter trim speaker bezel upward and pull it forward far enough to disengage the tabs at the back of the bezel from the slots in the back of the quarter trim panel opening.
- Remove the quarter trim speaker bezel from the vehicle.
