Mirror-Inside Rearview: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

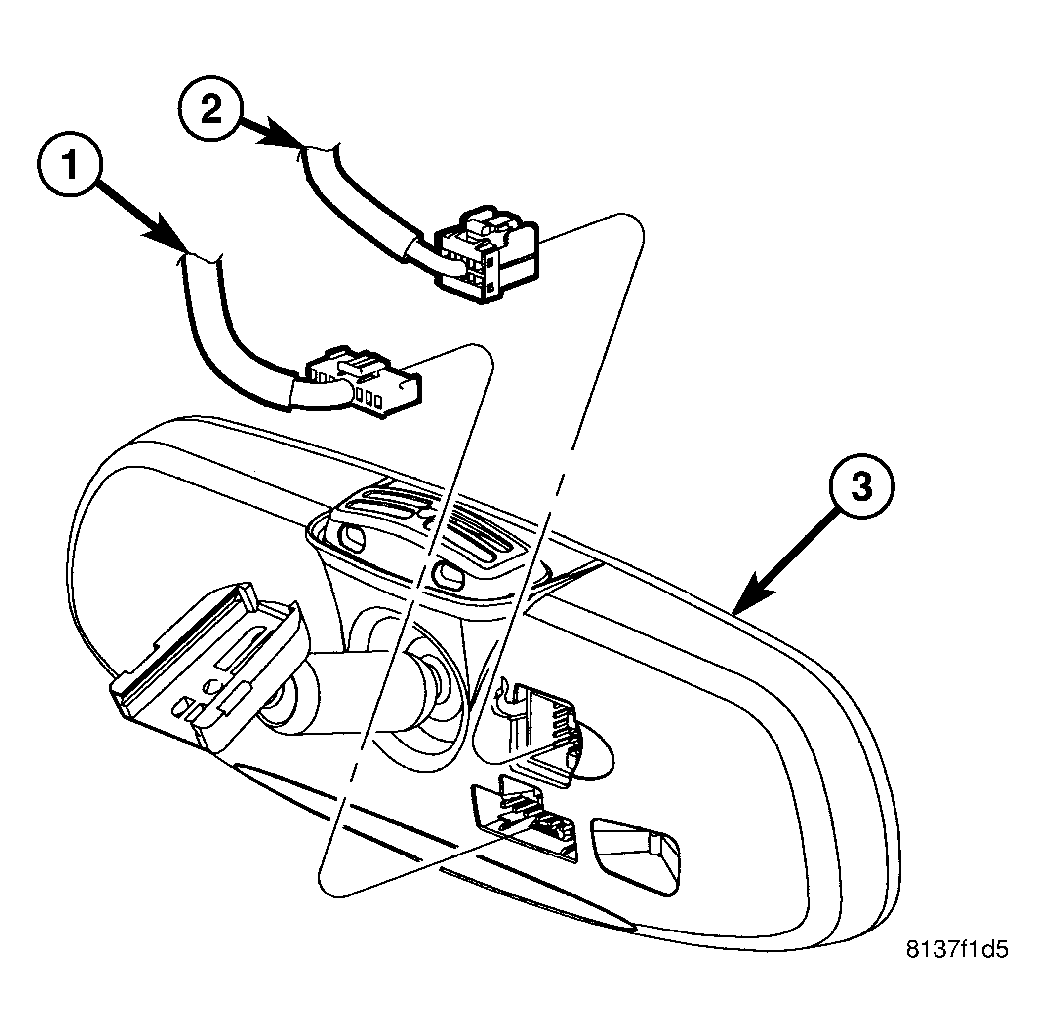

Fig 1: Inside Rearview Mirror

Courtesy of DAIMLERCHRYSLER CORP.

If the vehicle is equipped with either the electrochromic (automatic dimming) or the telematic (hands-free phone) mirror option, disconnect and isolate the battery negative cable.
If the vehicle is so equipped, disconnect the electrochromic mirror takeout and connector (1) and/or the telematic mirror takeout and connector (2) of the headliner wire harness from the connector receptacle on the back (windshield side) of the mirror housing (3).

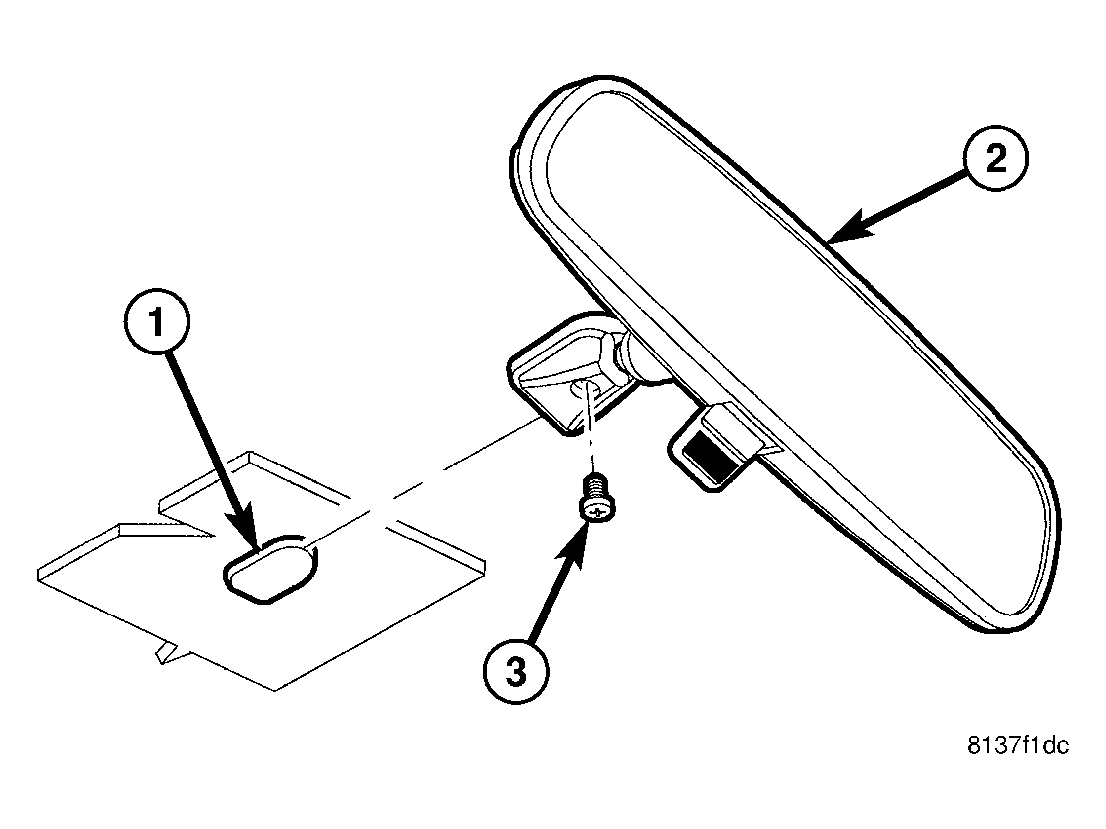

Fig 2: Removing/Installing Inside Rearview Mirror
Courtesy of DAIMLERCHRYSLER CORP.
Remove the set screw (3) that secures the rear view mirror (2) to the support bracket/button (1) on the inside of the windshield glass.
Slide the rear view mirror upward far enough to disengage it from the support bracket/button.
