Lock Cylinder - Police Only: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Magnum Police Only

Fig 1: LIFTGATE - MAGNUM POLICE

Courtesy of DAIMLERCHRYSLER CORP.

Open liftgate. Lock cylinder shown (1) in illustration.
Remove fasteners (2) attaching liftgate lower trim panel. (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL - REMOVAL)

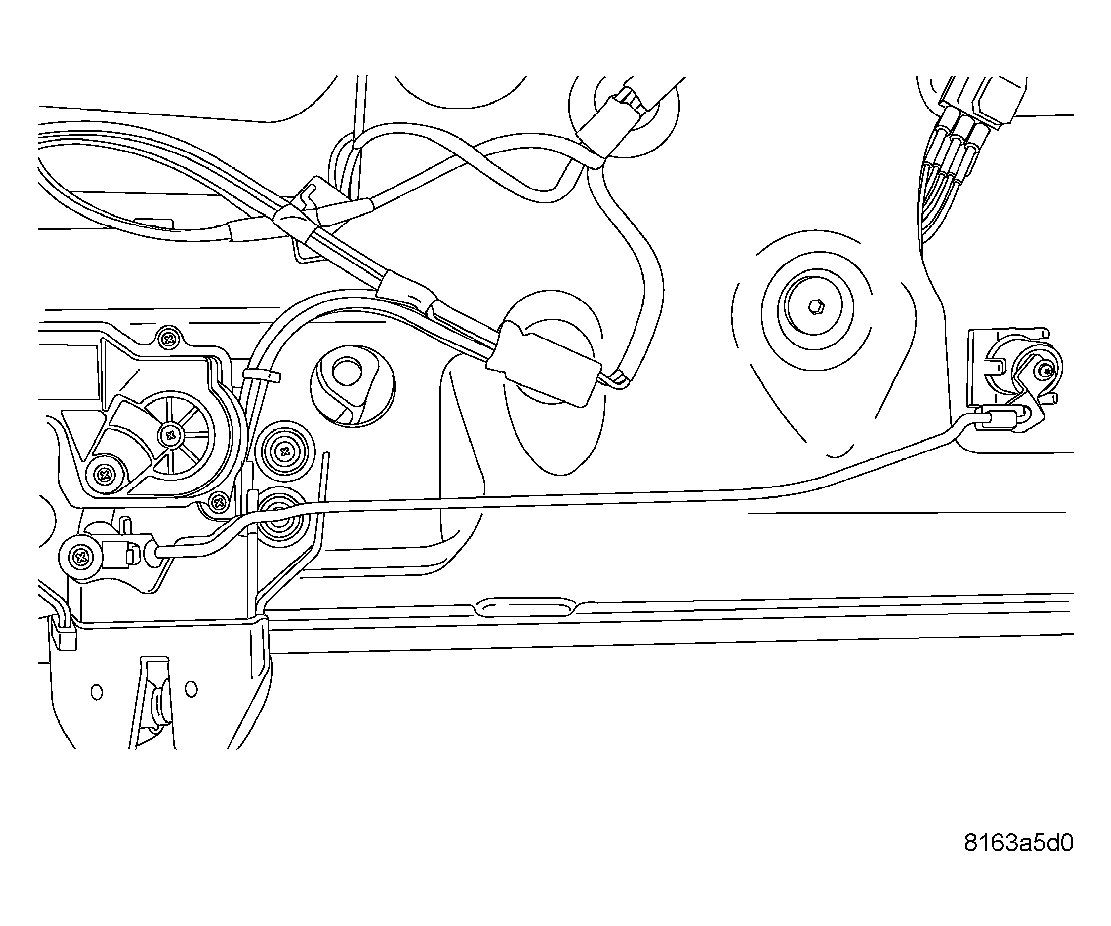

Fig 2: LATCH ASSEMBLY
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect remote handle link from lock cylinder.

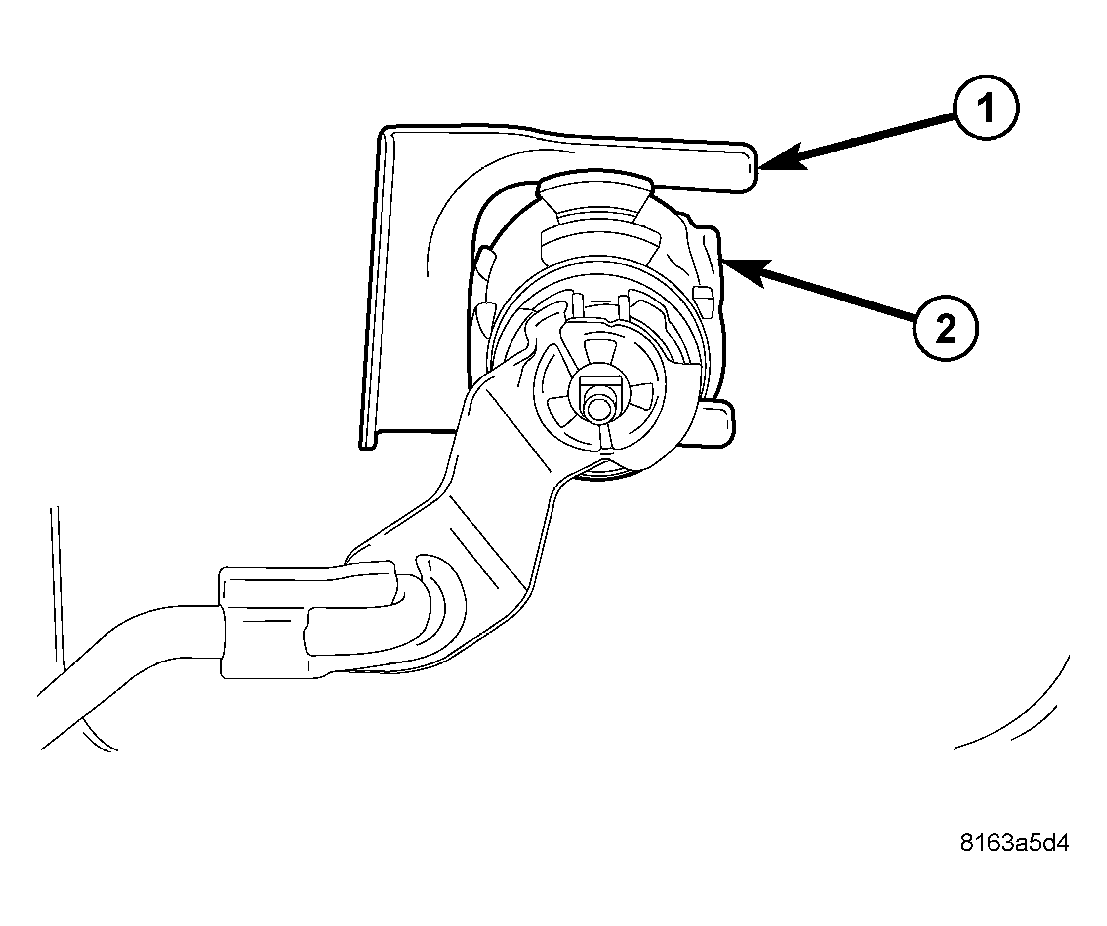

Fig 3: LIFTGATE LOCK CYLINDER
Courtesy of DAIMLERCHRYSLER CORP.
Remove lock cylinder clip (1) from lock cylinder (2).
Remove lock cylinder (2).
