Cowl Trim: Removal: Lower

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

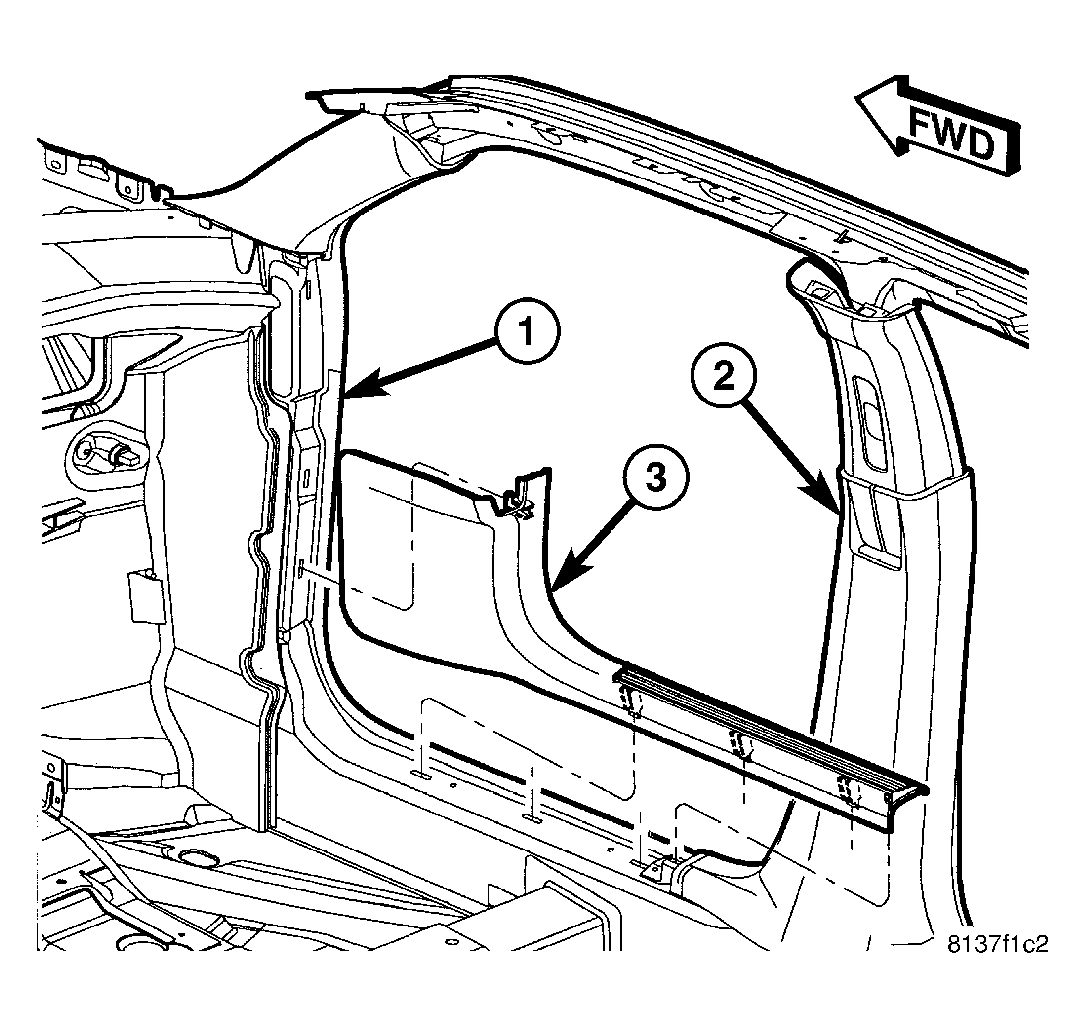

Fig 1: Lower Cowl Trim
GC0013513Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the upper cowl trim from the front of the front door opening. (Refer to BODY/INTERIOR/COWL TRIM - REMOVAL-UPPER) .
  2. Using a trim stick or another suitable wide flat-bladed tool and starting nearest the B-pillar trim (2), carefully pry the lower cowl trim (3) upward from the front door opening sill far enough to disengage the three spring clip retainers that secure the trim to the slots in the sill.
  3. Using a trim stick or another suitable wide flat-bladed tool, carefully pry the lower cowl trim rearward from the front of the front door opening far enough to disengage the spring clip retainer that secures the trim to the slot in the cowl (1).
  4. Remove the lower cowl trim from the vehicle.
